Remove/Install Loudspeakers In Rear Doors - AR82.62-P-7874ME
Model 167
Shown on right side of vehicle
Shown With Code 811 (Advanced sound system) on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove door trim of left or right rear door. | AR72.12-P-1011ME | |
| 2 | Unclip and remove rear tweeter (Premium or High End) (H21/12, H21/11 or H22/12, H22/11) or rear surround sound system tweeter (High End) (H22/32 or H22/31). | Model 167 with code 810 (Sound system) Model 167 with code 811 (Advanced sound system) |
|

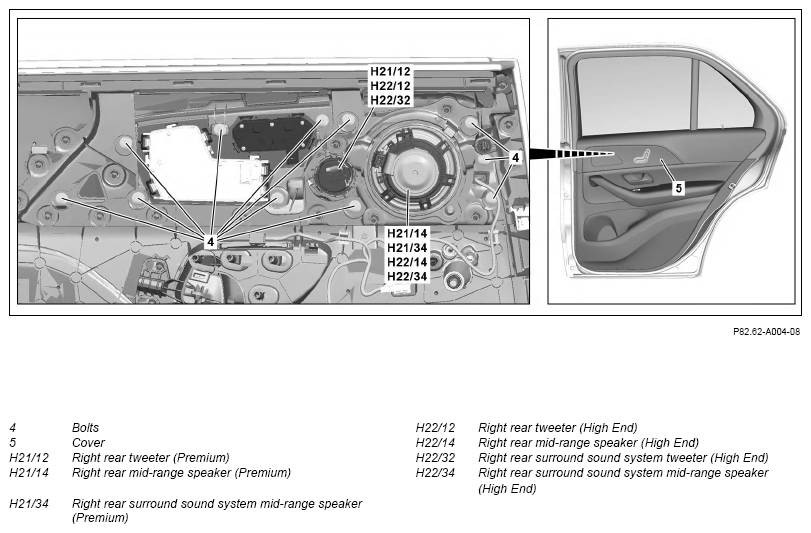

| 3 | Remove screws (4) and remove cover (5). | ||
| 4 | Remove rear mid-range speaker (Premium or High End) (H21/14, H21/13 or H22/14, H22/13) or rear surround sound system mid-range speaker (Premium or High End) (H21/34, H21/33 or H22/34, H22/33). | ||
| 5 | Release and disconnect electrical connector (2). | ||

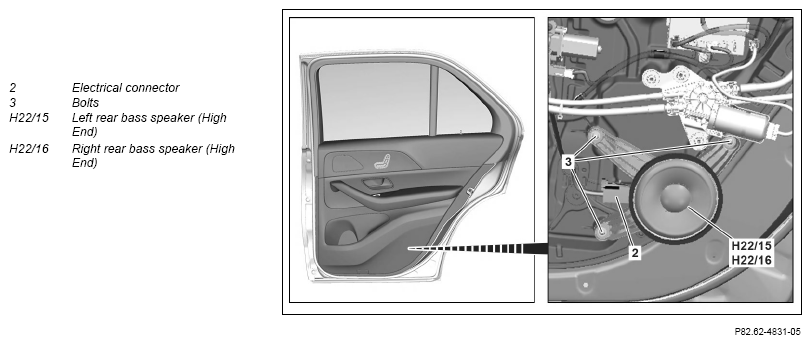

| 6 | Remove screws (3) and remove right rear bass speaker (High End) (H22/16) or left rear bass speaker (High End) (H22/15). | Model 167 with code 811 (Advanced sound system) |
|
| 7 | Install in the reverse order. |
