Remove/Install Global Positioning System (GPS) Antenna - AR82.85-P-0002ME

Model 167

With Code 355 (Preinstallation for retrofitting navigation system)

Model 167

With Code 362 (HERMES communications module LTE)

G15047087

Courtesy of MERCEDES-BENZ USA

G15047088

Courtesy of MERCEDES-BENZ USA

Shown on LHD model

Shown on LHD model

G15047089

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9000ME
		The GPS antenna (A2/23) is located in the outside mirror (M21/1, M21/2) of the respective steering variant. For left-hand drive vehicles in the left outside mirror (M21/1), on right-hand drive vehicles in right outside mirror (M21/2).
2	Remove trim on left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9040ME
3	Identify and expose electrical connection of GPS antenna (A2/23) at end of electrical wiring harness (4).

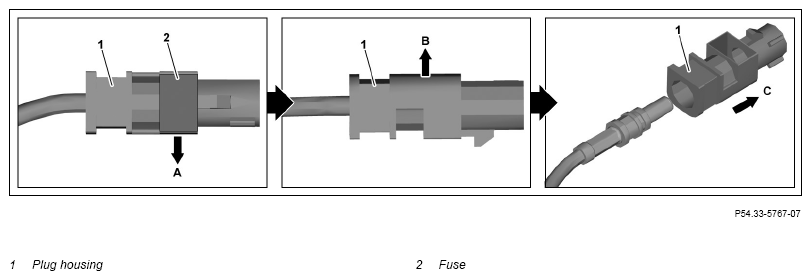

4	At plug housing (1), unclip fuse (2) (arrow A).
5	Unlock plug housing (1) (arrow B) and pull off electrical line (arrow C).

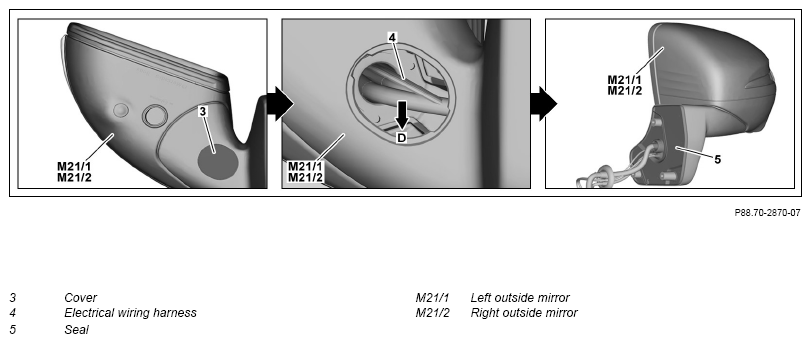

6	Remove cover (3) from left outside mirror (M21/1) or right outside mirror (M21/2).
7	Pull seal (5) approx. 15 cm over electrical wiring harness (4).
8	Pull electrical wiring harness (4) approx. 15 cm out of opening on left outside mirror (M21/1) or right outside mirror (M21/2) (arrow d).
9	Identify electric line of GPS antenna (A2/23) and pull it completely out of seal (5) and opening.
10	Detach left telephone antenna (A2/102) and place to one side with line connected.	Model 167 with code 274 (Telephone antenna) with code 355 (Preinstallation for retrofitting navigation system) Model 167 with code 274 (Telephone antenna) with code 362 (HERMES communications module LTE)	AR82.62-P-0011ME

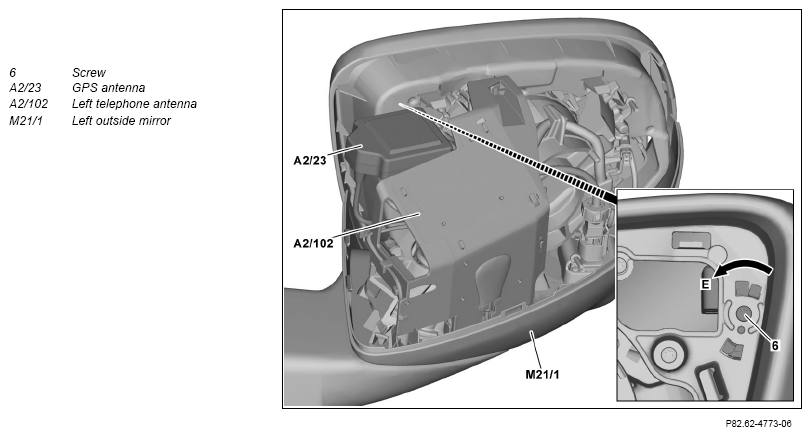

11	Remove screw (6).
12	Unscrew GPS antenna (A2/23) (arrow E) and remove.
13	Install in the reverse order.
