Remove/Install Front Door Speakers In Mirror Triangle - AR82.62-P-7850ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove left or right door trim, front door. | AR72.10-P-6575ME | |

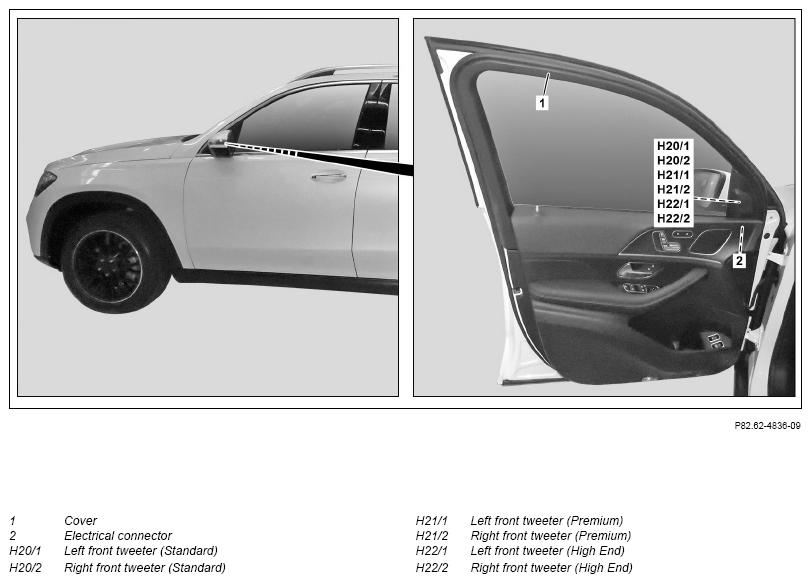

| 2 | Remove trim (1) from window frame until the electrical connector (2) is accessible. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove trim (1) from door frame. | ||
| 5 | Remove front tweeter (H20/1, H20/2, H21/1, H21/2, H22/1, H22/2). | ||
| 6 | Install in the reverse order. |
