Remove/Install FM 2, DAB And TV 2 Antenna Amplifier - AR82.62-P-8309ME
Model 167
Shown on model 167.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper liftgate trim. | Model 167.1/9 | AR72.20-P-6631ME |
| Model 167.3 | AR72.20-P-6631MEC | ||
| 3 | Unscrew bolt (1). | ||

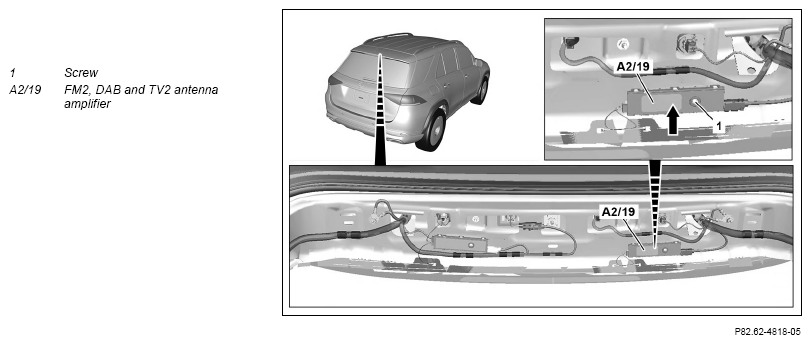

| 4 | Unclip FM2, DAB and TV2 antenna amplifier (A2/19) at arrow. | Fig 1 | |
| 5 | Release and disconnect electrical connectors from FM2, DAB and TV2 antenna amplifier (A2/19). | ||
| 6 | Install in the reverse order. |
