Remove/Install Driver-Side Footwell Woofer - AR82.62-P-7822ME
Model 167
With Code 810 (Premium sound system)
Model 167
With Code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

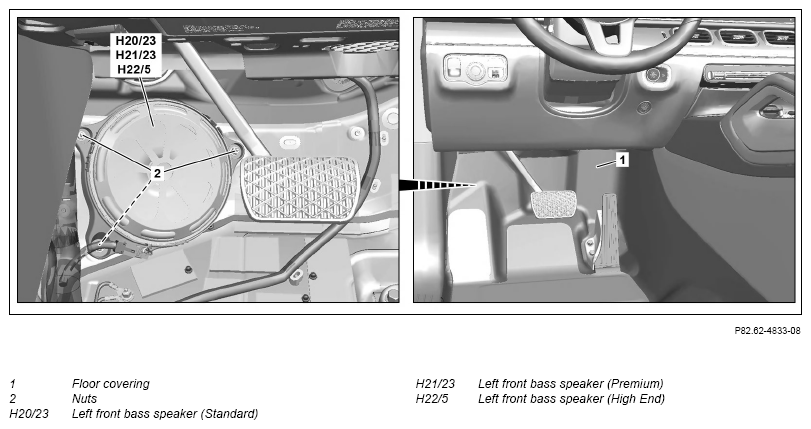

| 2 | Detach floor covering (1) at front in driver footwell and fold over until left front bass speaker (H20/23 or H21/23 or H22/5) is accessible. | AR68.80-P-0007ME | |
| 3 | Release and disconnect electrical connector on front left bass speaker (H20/23 or H21/23 or H22/5). | ||
| 4 | Remove nuts (2) from front left bass speaker (H20/23 or H21/23 or H22/5). | ||
| 5 | Remove front left bass speaker (H20/23 or H21/23 or H22/5). | ||
| 6 | Install in the reverse order |
