Retrofit Exit And Warning Lamp With Animation Projector - AZ82.20-P-0030ME

Model 167

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Connect diagnostic device and select vehicle using vehicle identification number.	Model 167 up to 11/30/21
			AD00.00-P-2000-06ME
2	Perform software update.	Model 167 up to 11/30/21 Left front door control unit. Right front door control unit. Left rear door control unit. Right rear door control unit.
3	Disconnect diagnostic unit.	Model 167 up to 11/30/21
			AD00.00-P-2000-06ME
4	Switch off warning and exit illumination at overhead control panel.
5	Remove left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6).	Starting at the bottom, on the left side, unclip the exit and warning lamp on left front door (E17/3), exit and warning lamp on right front door (E17/4), exit and warning lamp on left rear door (E17/5) and the exit and warning lamp on the right rear door (E17/6). Otherwise, the electrical connector located on the right-hand side will be damaged. Long wedge	Fig 1
6	Remove black 2-pin connector from left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6).	The exit and warning lamp on the left front door (E17/3), exit and warning lamp on right front door (E17/4), exit and warning lamp on left rear door (E17/5) and the exit and warning lamp on the right rear door (E17/6) are no longer required.
	Install

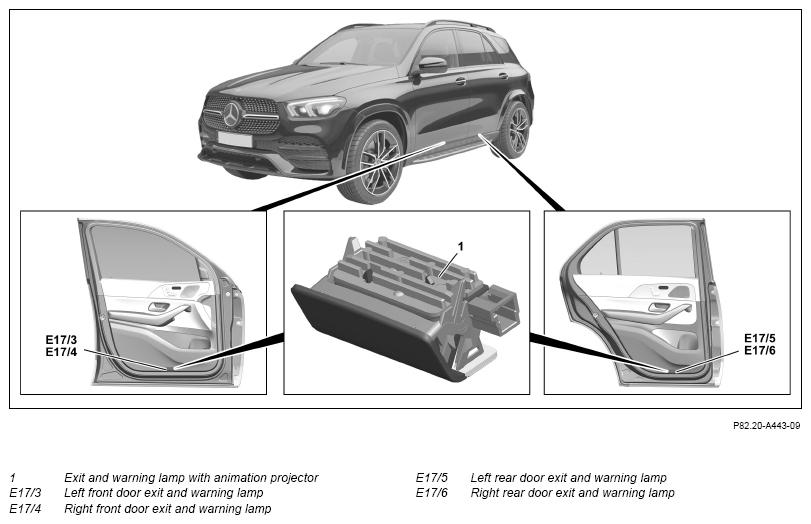

7	Install exit and warning lamp with animation projector (1) in front door door trim at left and right.	If the warning and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with animation projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with animation projector (1) gets very hot.	AZ82.20-P-0030-01ME
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
8	Install exit and warning lamp with animation projector (1) in rear door door trim at left and right.	If the warning and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with animation projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with animation projector (1) gets very hot.	AZ82.20-P-0030-02ME
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Update Vehicle Documentation (VeDoc)
9	Attach "Exit and warning lamp with animation projector retrofitted as per AZ82.20-P-0030ME" note under field organization texts to DIG 72 and DIG 82.
	Check
10	Perform function test.	The warning and exit illumination must be switched on at overhead control panel control unit.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (See Xentry Parts Information)	Parts kit for exit and warning lamp with animation projector	1
