Modify Exchangeable Cover Of Front Illuminated Door Sill Molding - AZ82.20-P-0009-02ME

Model 167.1/3/9

With Code U45 (Illuminated door sill with exchangeable cover)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

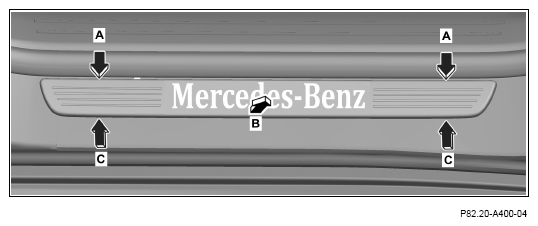

1. Carefully push front exchangeable cover downwards (arrows A), pull downwards from door sill (arrow B), then slide upwards (arrows C) and remove.

   Carefully remove front exchangeable cover.

   Otherwise, the paint at the entrance may be damaged.

   Use long wedge.

   Courtesy of MERCEDES-BENZ USA

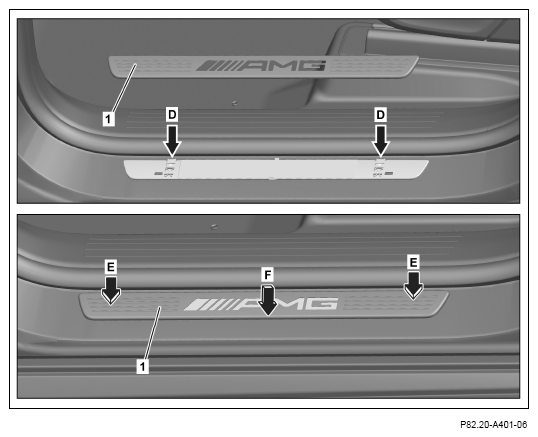

2. Hook retaining lugs of front exchangeable cover (1) onto springs (arrows D) and slide downwards against spring force (arrows E), while doing so, carefully push in direction of door sill (arrow F) until front exchangeable cover (1) latches into place.

   Courtesy of MERCEDES-BENZ USA
