Change Changeable Cover for Illuminated Door Sill Molding - AZ82.20-P-0009ME

Model 167.1/3/9 With Code U45 (Illuminated door sill with exchangeable cover)

Courtesy of MERCEDES-BENZ USA

	Refit

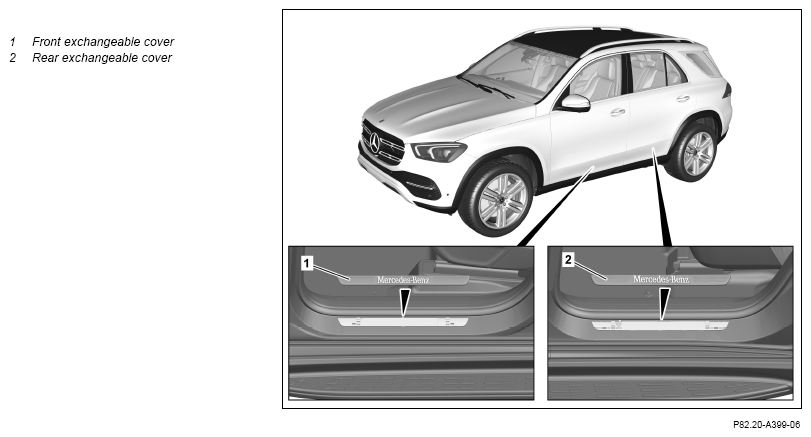

1	Refit exchangeable cover (1).	Carefully refit front exchangeable cover (1). Otherwise, the paint at the entrance may be damaged. Ensure that it is properly seated and latched into place. Hand over removed front exchangeable cover (1) to customer.	AZ82.20-P-0009-02ME
		Long wedge	Fig 1
2	Refit rear exchangeable cover (2).	Model 167.1/9 Carefully refit rear exchangeable cover (2). Otherwise, the paint at the entrance may be damaged. Ensure that it is properly seated and latched into place. Hand over removed rear exchangeable cover (2) to customer.	AZ82.20-P-0009-03ME
		Long wedge	Fig 1

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
