Backup Camera Control Unit, Detailed Information - GF54.65-P-0012A

Model 118, 177, 247

with code 218 (Rear view camera)

Model 167.1

with code 218 (Rear view camera)

Model 293

with code 218 (Rear view camera)

Location in the handle strip of the trunk lid

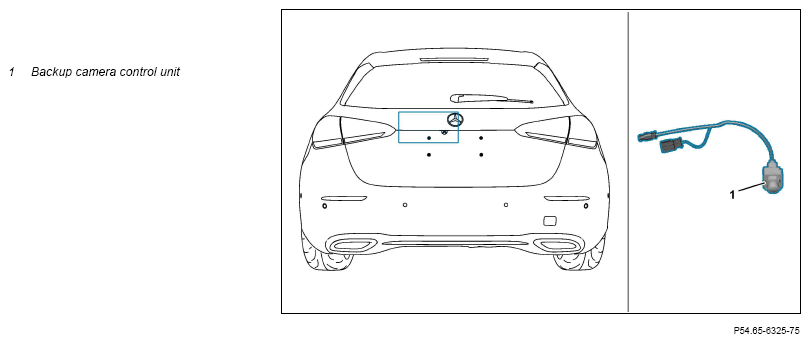

Fig 1: Backup Camera Control Unit Components Location - Model 247 With Code 218

Courtesy of MERCEDES-BENZ USA

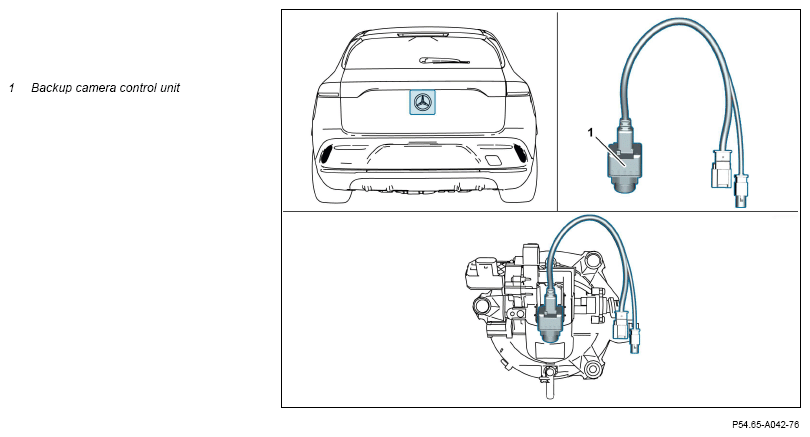

Location centrally in the trunk lid behind the brand emblem

Courtesy of MERCEDES-BENZ USA

Location

The reversing camera control unit is located, depending on the vehicle model, either in the handle strip of the trunk lid or centrally in the trunk lid behind the market emblem.
