Install Rear Fixed Element Of Panoramic Sliding Sunroof - AR77.21-P-0802-05MFB

Model 243, 247

with code 413 (Panoramic sliding sunroof/glass roof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

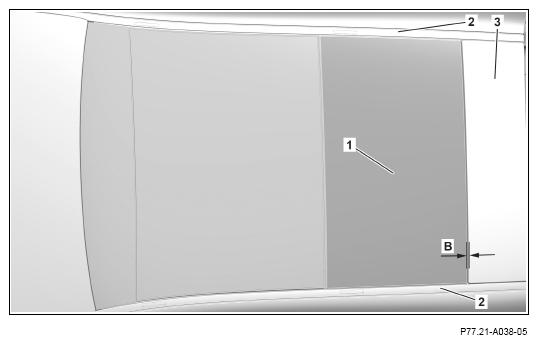

1. Position rear fixed element (1), carefully place on adhesive bead and lightly press on.

   Helper required.

2. Insert feeler gauges adjusted to the gap dimension (B) determined before removal between the rear fixed element (1) and the rear roof paneling (3) and align rear fixed element (1).
3. Center rear fixed element (1) between side roof paneling.
4. Position drip rails (2) and check lateral alignment of rear fixed element (1); correct if necessary.

   Only remove drip rails (2) after the adhesive material has cured.

5. Place suitable weights on rear fixed element (1) during curing time of adhesive material.

   Use flat weights, e. g. sandbags.

   The rear fixed element (1) may otherwise be damaged.

6. Carefully remove cup suction tool.
7. Remove drip rails (2).
