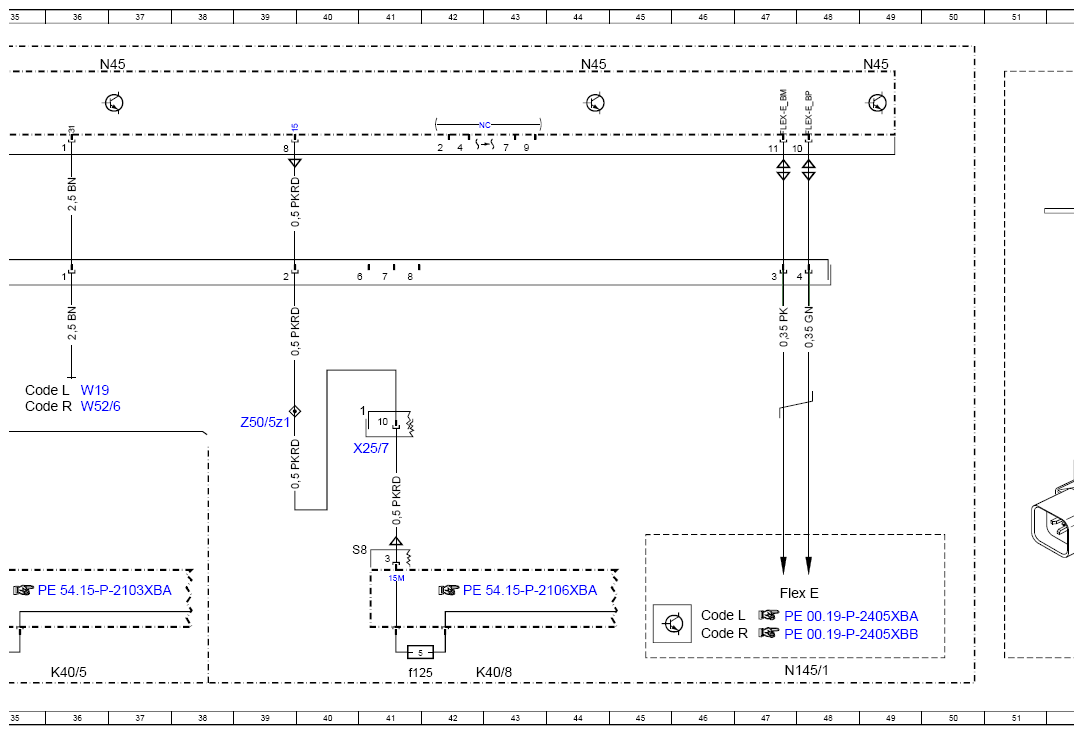

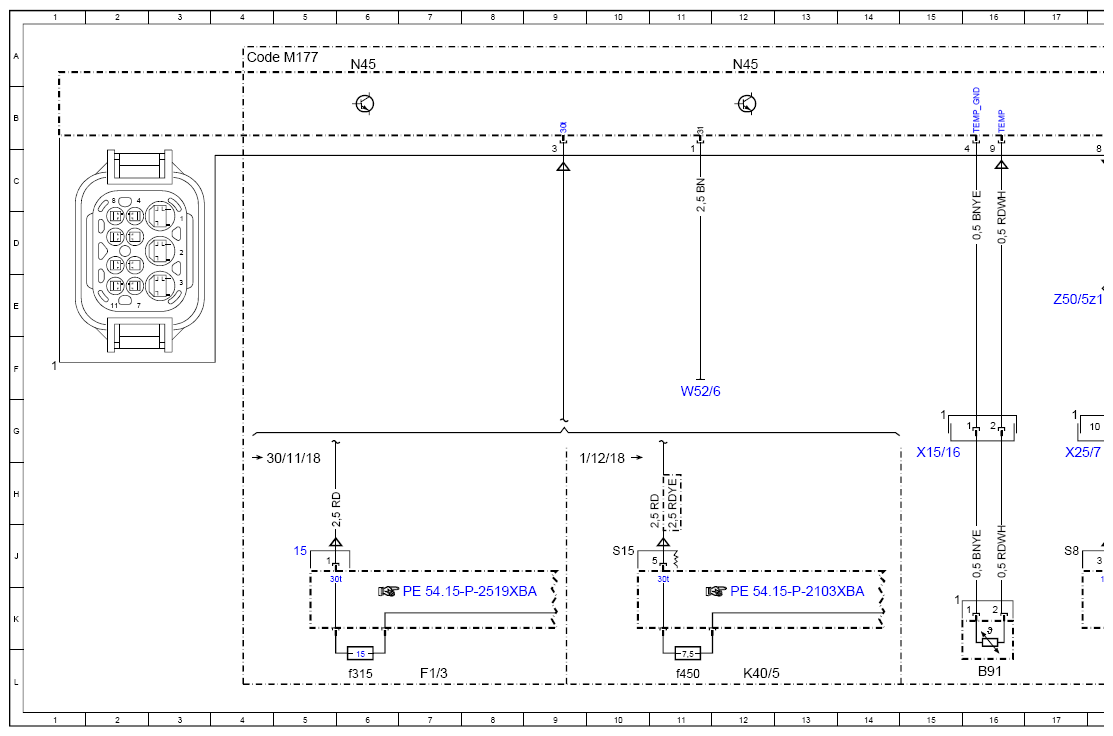

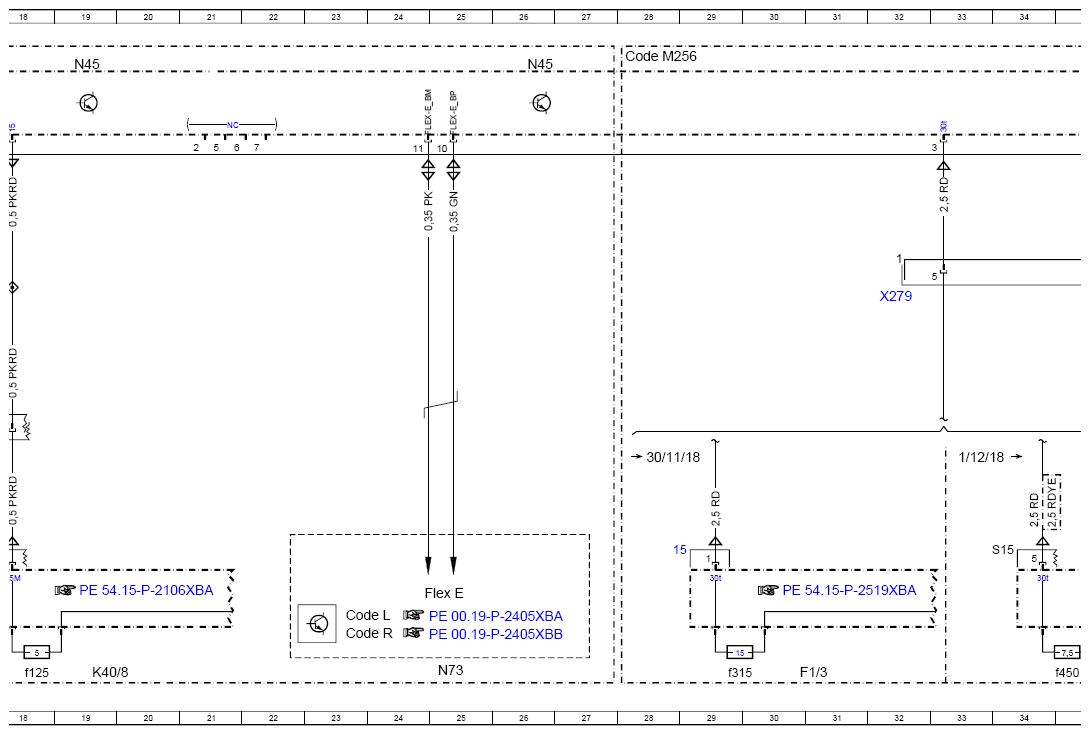

Wiring Diagram Of All-Wheel Drive Control Unit - PE28.19-P-2103-97XBA
Model 257 with engine 256 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Control unit N45
Model 290 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Control unit N45
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| B91 | Transmission oil temperature sensor | 16L |
| Code L | LEFT-HAND DRIVE | 23K |
| Code L | LEFT-HAND DRIVE | 46K |
| Code L | LEFT-HAND DRIVE | 35F |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 4A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 28A |
| Code R | RIGHT-HAND DRIVE | 23K |
| Code R | RIGHT-HAND DRIVE | 46K |
| Code R | RIGHT-HAND DRIVE | 35G |
| F1/3 | Passenger-side A-pillar fuse box | 31L |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3f315 | Fuse 315 | 29L |
| F1/3f315 | Fuse 315 | 6L |
| Flex E | Chassis FlexRay | 25K |
| Flex E | Chassis FlexRay | 47K |
| K40/5 | Rear fuse and relay module | 36L |
| K40/5 | Rear fuse and relay module | 12L |
| K40/5f450 | Fuse 450 | 35L |
| K40/5f450 | Fuse 450 | 11L |
| K40/8 | Engine fuse and relay module | 19L |
| K40/8 | Engine fuse and relay module | 43L |
| K40/8f125 | Fuse 125 | 18L |
| K40/8f125 | Fuse 125 | 41L |
| N145/1 | Drive unit control unit | 47L |

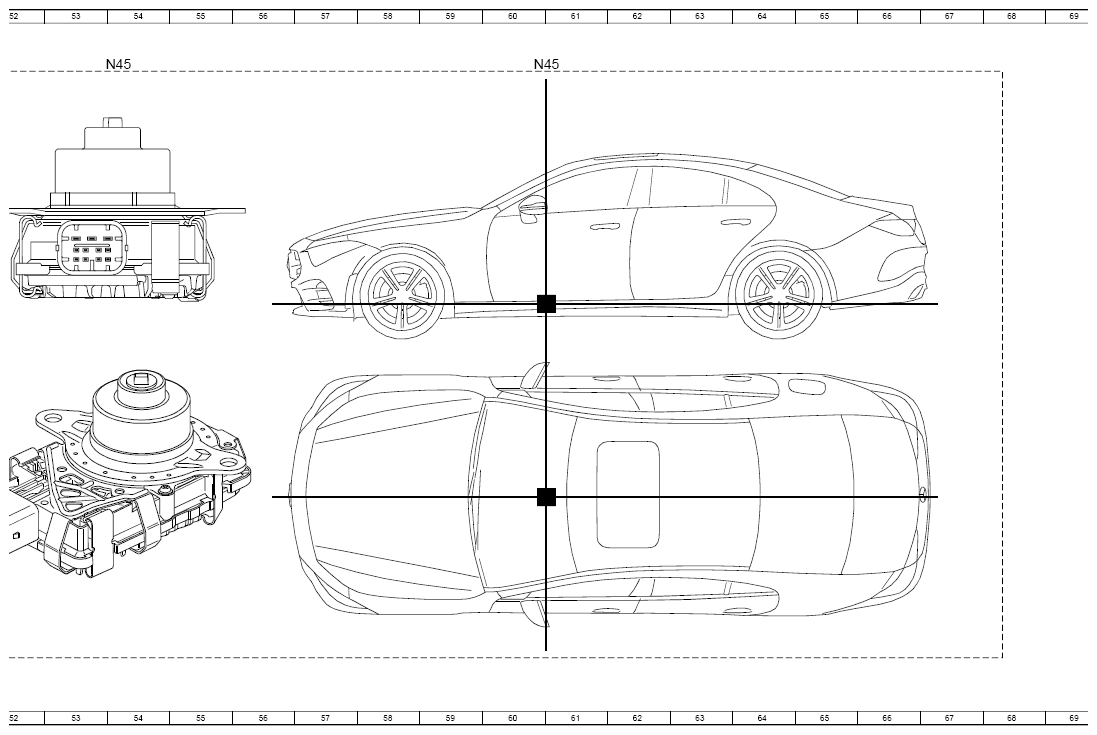

| N45 | All-wheel drive control unit | 6A |
| N45 | All-wheel drive control unit | 26A |
| N45 | All-wheel drive control unit | 44A |
| N45 | All-wheel drive control unit | 49A |
| N45 | All-wheel drive control unit | 19A |
| N45 | All-wheel drive control unit | 54A |
| N45 | All-wheel drive control unit | 60A |
| N45 | All-wheel drive control unit | 36A |
| N45 | All-wheel drive control unit | 12A |
| N73 | Electronic ignition switch control unit | 25L |
| W19 | Right front seat crossmember ground point | 36F |
| W52/6 | Right center longitudinal member ground point | 11F |
| W52/6 | Right center longitudinal member ground point | 36G |
| X15/16 | Transmission oil temperature sensor electrical connector | 15G |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 17G |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 41G |
| X279 | All-wheel drive control unit electrical connector | 32E |
| Z50/5z1 | Circuit 15M connector sleeve | 17E |
| Z50/5z1 | Circuit 15M connector sleeve | 39G |
