Automatically Regulated All-Wheel Drive (4Matic) Torque Distribution - GF28.00-P-0001-02AVO

Model 257.361, 290

up to model year 2021

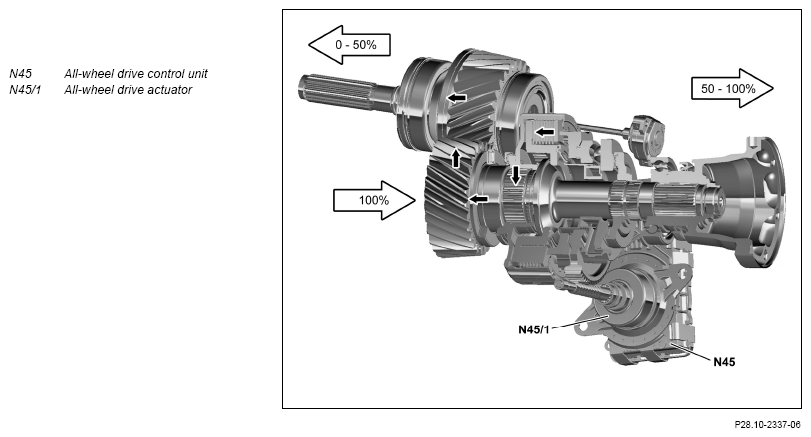

Torque distribution in transfer case

Courtesy of MERCEDES-BENZ USA

Closing the multiplate clutch causes a torque distribution of up to 50 % to the front axle transmission output.
