Adjust Rear-Axle Toe - AR40.20-P-0261FR
Model 257, 290

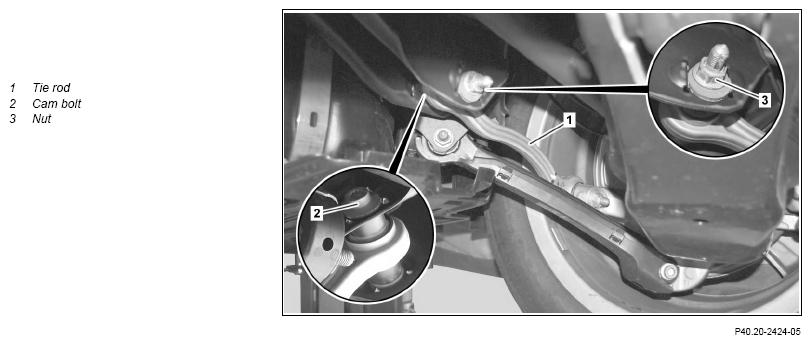

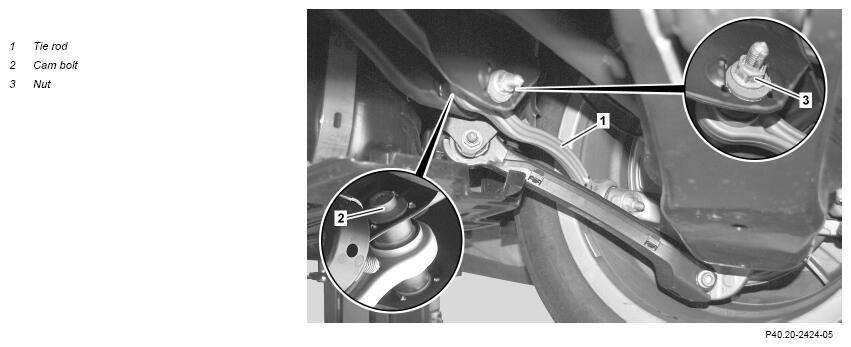

Shown on model 257 on the right side of the vehicle
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Measure | |||
| 1 | Carry out input measurement. | Model 290 | AR40.20-P-0200FRX |
| Model 257 | AR40.20-P-0200FR | ||
| Adjust | |||
| 2 | Loosen nut (3). | ||
| 3 | Adjust toe using cam bolt (2). | Assign suspension data Model 290 |
AR40.20-P-0203FX |
| Assign suspension data Model 257 | AR40.20-P-0203FR | ||
| 4 | Tighten nut (3). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| *BA35.20-P-1002-04M | |||
| Measure | |||
| 5 | Carry out output measurement. | Model 290 | AR40.20-P-0200FRX |
| Model 257 | AR40.20-P-0200FR |
TIE ROD
| Number | Designation | Model 257 | Model 290 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1002-04M | Self-locking nut, tie rod to rear axle carrier | When removing the tie rod | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 90 | 90 | |||
| When adjusting the toe | Nm | 110 | 110 | |||
