4Matic Front Axle Transmission, Function - GF33.10-P-3000AVN
Model 257 (except 257.361) with transmission 725.0 up to model year 2021

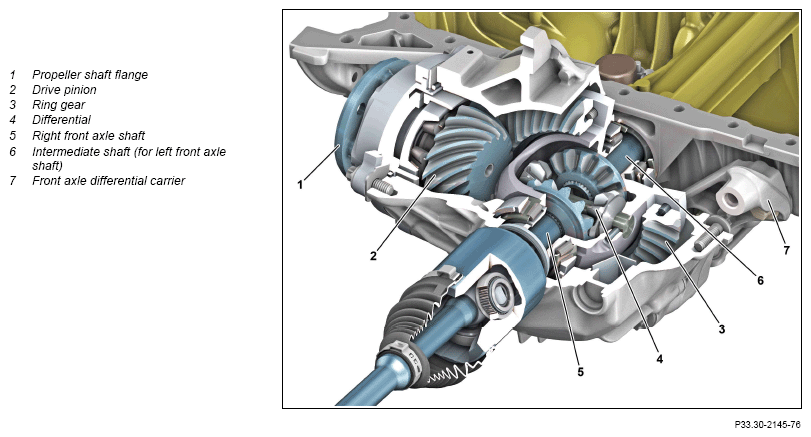

Sectional view of front axle transmission
Front axle transmission 4MATIC, general
The front axle transmission is designed as a single-speed differential with fuel-efficient technology (fuel economy). The housing of the front axle transmission is made of aluminum and bolted to the oil pan by means of a carrier (7). The drive pinion (2) is set at an angle of 83° to the ring gear (3) to compensate for the angular course of the propeller shaft relative to the front axle transmission. The ring gear (3) is attached onto the engine and bolted onto the differential cage of the differential (4). This location of components of the front axle transmission causes the change in direction of rotation, which occurs due to the single-speed output in the transfer case, to reverse again.
