Remove/Install Air Spring - AR32.22-P-1500FR

Model 257 with code 489 (AIR BODY CONTROL)

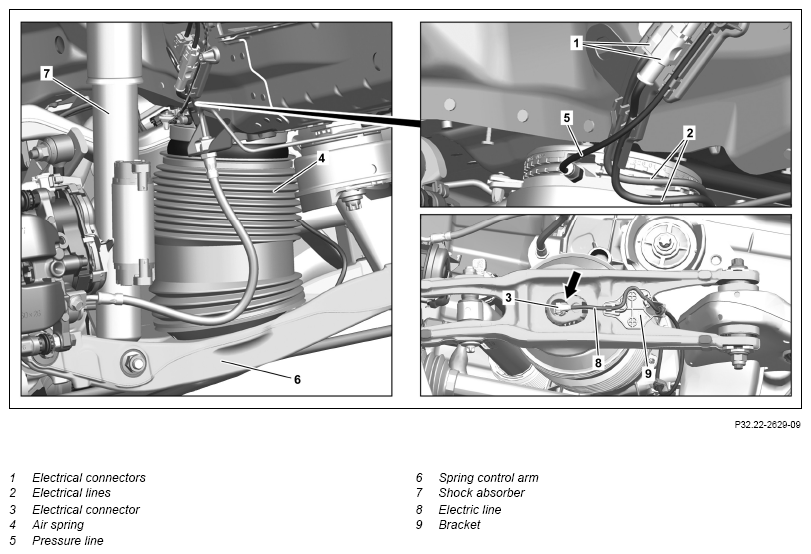

Fig 1: Air Spring Components Location - Model 257 With Code 489
G14548459WARNINGREMOVINGREFER TO SELF-DIAGNOSTIC SYSTEMSSPECIAL TOOLNOTESIMPORTANTNOTESINSPECTNOTESINSTALLINGNOTESNOTESNOTESTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLREFER TO SELF-DIAGNOSTIC SYSTEMSNOTESINSPECTCourtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
Notice  Notes on AIR BODY CONTROL   AH32.22-P-1000-03LWO
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove rear wheel   AR40.10-P-1102A
2 Relieve pressure from air spring (4) using vehicle diagnosis system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
3 Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
4 Release fender liner at rear in area of electrical connectors (1) and push to one side   AR88.10-P-1302FR
5 Disconnect electrical connectors (1) and unhook electric lines (2) from holder
6 Remove pressure line (5) from air spring (4) and seal openings with suitable stop plugs SPECIAL TOOL Record plug Fig 4
7 Remove cover at spring link (6)
8 Disconnect electrical connector (3) and unhook electric line (8) from holder (9)
9 Carefully pull air spring (4) downwards by its upper plastic frame until the air spring (4) releases from the retaining clip NOTES
Do not completely compress or extend the air
spring (4).
Otherwise the air spring (4) may be damaged.
IMPORTANT The retaining clip is destroyed when the air spring (4) is removed.

10 Remove air spring (4) downwards NOTES
Remove the air spring (4) carefully. Otherwise the protective boot for the air spring (4) may be damaged.

INSPECT Check
11 Check condition of air spring (4) NOTES
There must not be any intrusions on the protective boot.
Otherwise the movement of the spring will damage the spring bellows on the inside. If a problem arises

  Replace air spring (4).
INSTALLING Install
12 Replacing retaining clip   AR32.22-P-1500-02FR
13 Position the air spring (4) with the air spring centering (arrow) onto the spring link (6) NOTES
Do not completely compress or extend the air spring (4).
Otherwise the air spring (4) may be damaged.

14 Position air spring (4) on retaining clip and latch into place NOTES
Do not completely compress or extend the air spring (4).
Otherwise the air spring (4) may be damaged.

15 Hook electric line (8) onto holder (9) and connect electrical connector (3)
16 Install cover at spring link (6)
17 Remove all stop plugs
18 Mount pressure line (5) to air spring (4) NOTES
The thread on the connection for the pressure line (5) may not be damaged. Otherwise, leaks will occur.

TORQUE SPECIFICATION Pressure line to air suspension *BA32.22-P-1006-03I
SPECIAL TOOL Box wrench bit If the thread is damaged Fig 3
Repair connection for pressure line (5). AR32.22-P-2001-01FR
SPECIAL TOOL Knife Fig 2
19 Hook electric lines (2) into holder and connect electrical connectors (1)
20 Install fender liner at rear   AR88.10-P-1302FR
21 Install rear wheel   AR40.10-P-1102A
22 Build up pressure in air spring (4) using vehicle diagnosis system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
    NOTES
Build up pressure in air spring (4) as specified. Otherwise, the air spring (4) may suffer initial damage and malfunction at a later stage.

INSPECT Check
23 Check AIR BODY CONTROL for leak tightness   AR32.22-P-8101FR
AIR SUSPENSION

Number Designation Model 257
BA32.22-P-1006-03I Pressure line to air suspension Nm 2
Fig 2: Identifying Knife (000 589 12 28 00)
G09980728Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Box Wrench Bit (001 589 00 03 00)
G13848963Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
