Remove/Install Air Body Control Control Unit For More Accurate Control Of The Suspension - AR32.22-P-0003FR
Model 257 with code 489 (AIR BODY CONTROL)
Shown on model 257 with code 810 (Sound system)

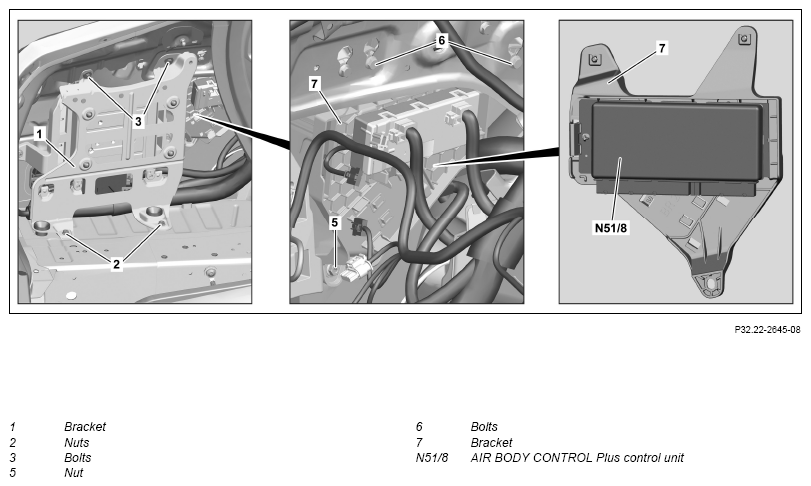

| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of AIR BODY CONTROL Plus control unit (N51/8) | When replacing AIR BODY CONTROL Plus control unit (N51/8). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove left luggage compartment lining at side | Model 257 with code 489 (AIR BODY CONTROL) except code 811 (Advanced sound system) | |
| AR68.30-P-4800FR | |||
| 4 | Remove subwoofer from trunk | Model 257 with code 489 (AIR BODY CONTROL) with code 811 (Advanced sound system) | |
| AR82.62-P-7841FR | |||
| 5 | Remove bolts (3), unscrew nuts (2) and remove holder (1) with sound system control unit then place to one side | Model 257 with code 489 (AIR BODY CONTROL) with code 810 (Sound system) | |
| Model 257 with code 489 (AIR BODY CONTROL) with code 811 (Advanced sound system) | |||
| Do not separate the electrical connectors. | |||
| 6 | Unscrew nut (5), remove bolts (6) and remove holder (7) with control units, then place to one side | ||
| 7 | Disconnect electrical connector from AIR BODY CONTROL Plus control unit (N51/8) | ||
| 8 | Release and disconnect AIR BODY CONTROL Plus control unit (N51/8) | ||
| 9 | Install in the reverse order |
