Remove/Install Air Body Control Control Unit - AR32.22-P-0006FR
Model 257 with code 489 (AIR BODY CONTROL)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of AIR BODY CONTROL control unit (N51/3) | When replacing AIR BODY CONTROL control unit (N51/3). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove side paneling in left side of luggage compartment | Model 257 with code 489 (AIR BODY CONTROL) except code 811 (Advanced sound system) | |
| AR68.30-P-4800FR | |||
| 4 | Remove subwoofer | Model 257 with code 489 (AIR BODY CONTROL) with code 811 (Advanced sound system) | |
| AR82.62-P-7841FR | |||
| 5 | Remove sound system control unit holder and place to one side | Model 257 with code 489 (AIR BODY CONTROL) with code 810 (Sound system) | |
| Model 257 with code 489 (AIR BODY CONTROL) with code 811 (Advanced sound system) | |||
| AR82.62-P-7724FR | |||

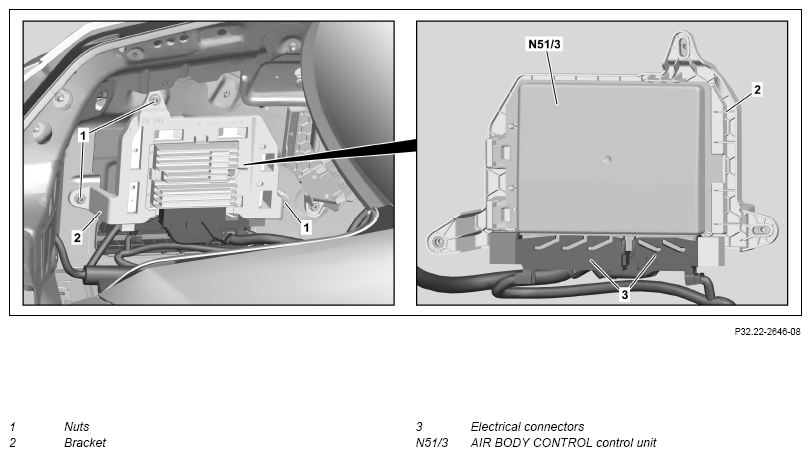

| 6 | Unscrew nuts (1) and place holder (2) with attached electrical lines into trunk | ||
| 7 | Detach electrical connections (3) | ||
| 8 | Release and remove AIR BODY CONTROL control unit (N51/3) | ||
| 9 | Install in the reverse order |
