Remove/Install Adaptive Damping System Control Unit - AR32.32-P-0003FR
Model 257 with code 459 (Steel suspension with adjustable damping)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 |
Perform commissioning of adaptive damping system control unit (N51/5) | When replacing the adaptive damping system control unit (N51/5). | AD00.00-P-2000-06FR |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove side paneling in left side of luggage compartment | Model 257 with code 459 (Steel suspension with adjustable damping) except code 811 (Advanced sound system) | AR68.30-P-4800FR |
| 4 | Remove subwoofer | Model 257 with code 459 (Steel suspension with adjustable damping) with code 811 (Advanced sound system) | AR82.62-P-7841FR |
| 5 | Remove sound system control unit holder and place to one side | Model 257 with code 459 (Steel suspension with adjustable damping) with code 810 (Sound system) | |
| Model 257 with code 459 (Steel suspension with adjustable damping) with code 811 (Advanced sound system) | |||
| AR82.62-P-7724FR | |||

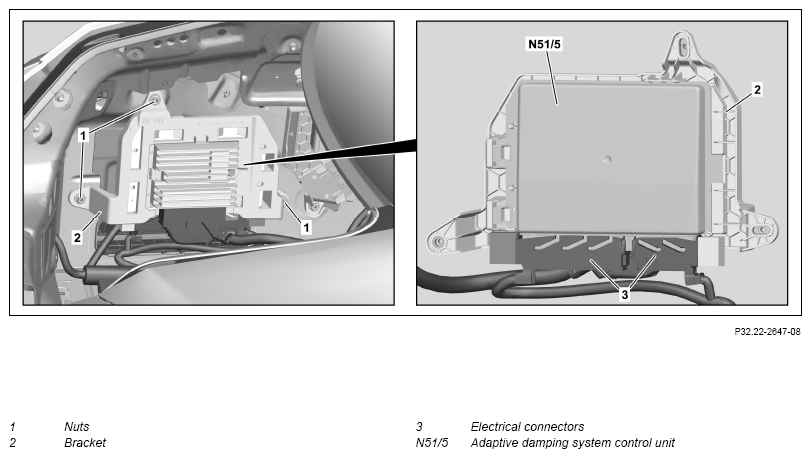

| 6 | Unscrew nuts (1) and place holder (2) with attached electrical lines into trunk | ||
| 7 | Detach electrical connections (3) | ||
| 8 | Release and remove adaptive damping system control unit (N51/5) | ||
| 9 | Install in the reverse order |
