Remove/Install Rear Engine Support - AR22.10-P-4360MSA

Engine 256.9 in model 213, 238, 257, 290

Shown with CODE M005 (4MATIC)

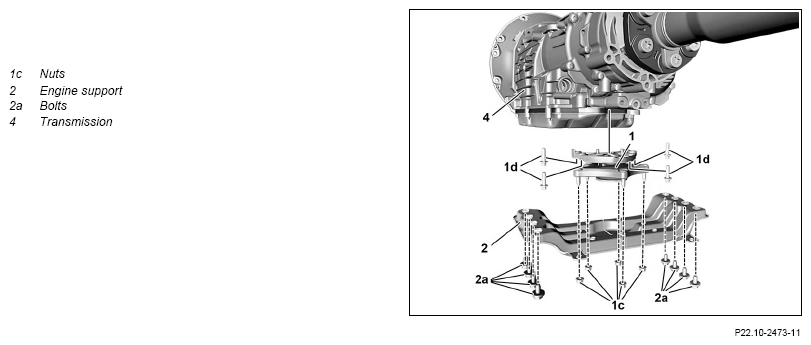

Fig 1: Rear Engine Support Component Location - Model 256.9 In Model 257 (Shown With Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result	Wear protective gloves, protective clothing	AS00.00-Z-0002-01A
	when handling hot or glowing objects.	and safety glasses, if necessary.
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove center and rear lower engine compartment lining.	Engine 256.9 in model 213, 238	AR61.20-P-1105LWE
		Engine 256.9 in model 290	AR61.20-P-1105FRX
		Engine 256.9 in model 257	AR61.20-P-1105FR
2	Support transmission (4).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
3	Unscrew nuts (1c).	Engine 256.9 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive)	*BA22.10-P-1004-03O
		Engine 256.9 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount to engine support
		Engine 256.9 in model 213, 257, 290Rear engine mount to engine support	*BA22.10-P-1004-03N
4	Remove screws (2a) and remove engine carrier (2).	Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (2a). Otherwise, threads are damaged.
		Engine 256.9 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 256.9 in model 238	*BA22.10-P-1005-03O
		with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, rear engine support to body
		Engine 256.9 in model 213, 257, 290Bolt, rear engine support to body	*BA22.10-P-1005-03N
5	Install in the reverse order.
