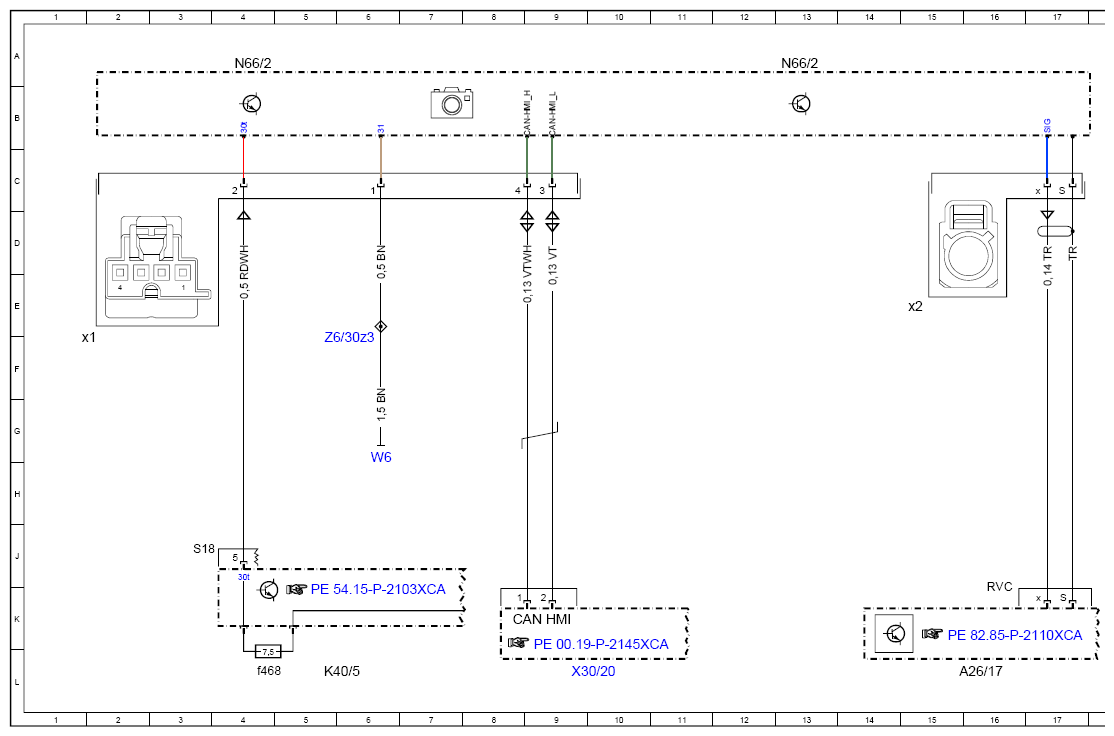

Wiring Diagram For Backup Camera Control Unit - PE54.65-P-2102-97XCA
Model 257, 290 as of model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist) Control unit N66/2
| Code: | Designation: | Position: |
|---|---|---|

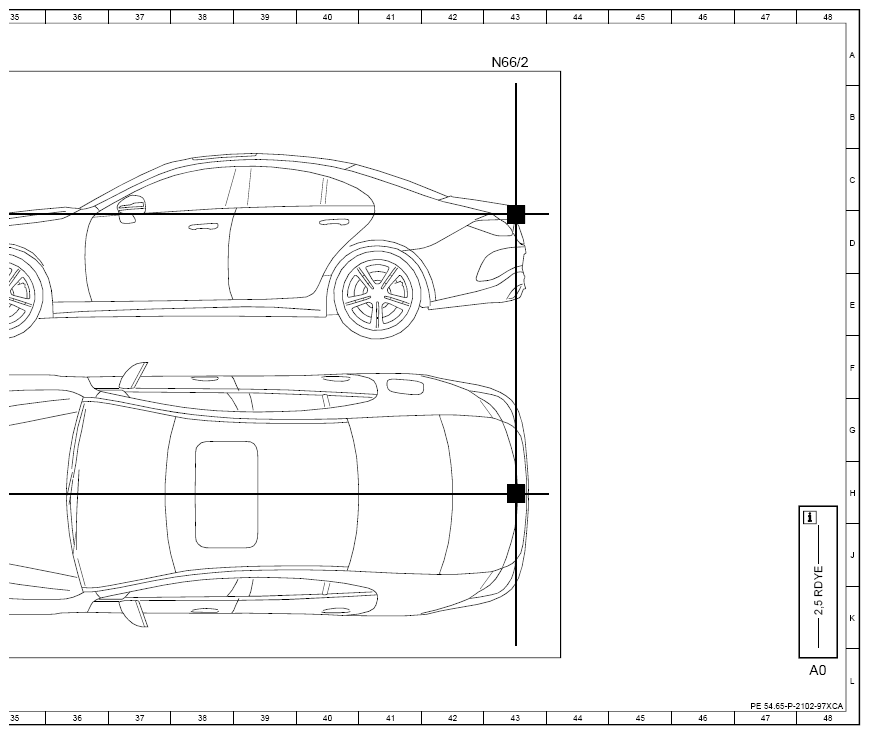

| A0 | Use of wiring diagrams | 48L |
| A26/17 | Head unit | 16L |
| CAN HMI | User interface CAN | 9K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f468 | Fuse 468 | 4L |

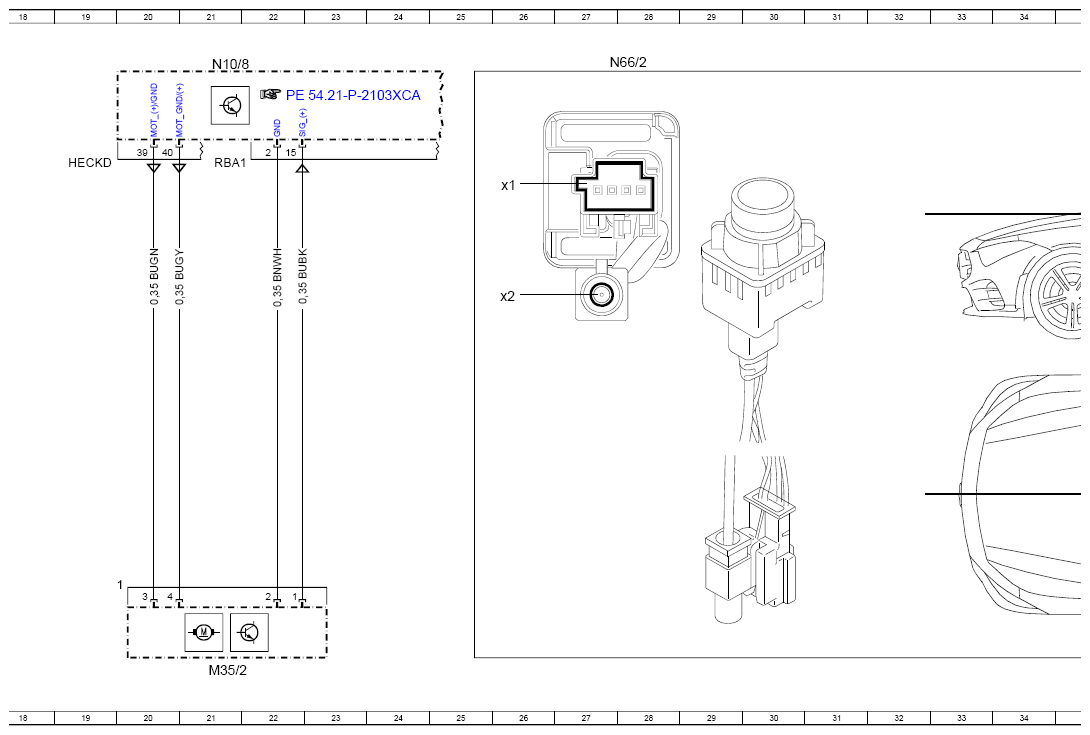

| M35/2 | Rear camera cover motor | 21L |
| N10/8 | Rear SAM control unit | 21A |
| N66/2 | Backup camera control unit | 4A |
| N66/2 | Backup camera control unit | 13A |
| N66/2 | Backup camera control unit | 28A |
| N66/2 | Backup camera control unit | 43A |
| N66/2x1 | Reversing camera control unit electrical connector 1 | 2F |
| N66/2x2 | Reversing camera control unit electrical connector 2 | 15E |
| W6 | Left wheel arch trunk ground point | 6G |
| X30/20 | User interface CAN (CAN HMD potential distributor | 9L |
| Z6/30z3 | Ground connection connector sleeve | 6F |
