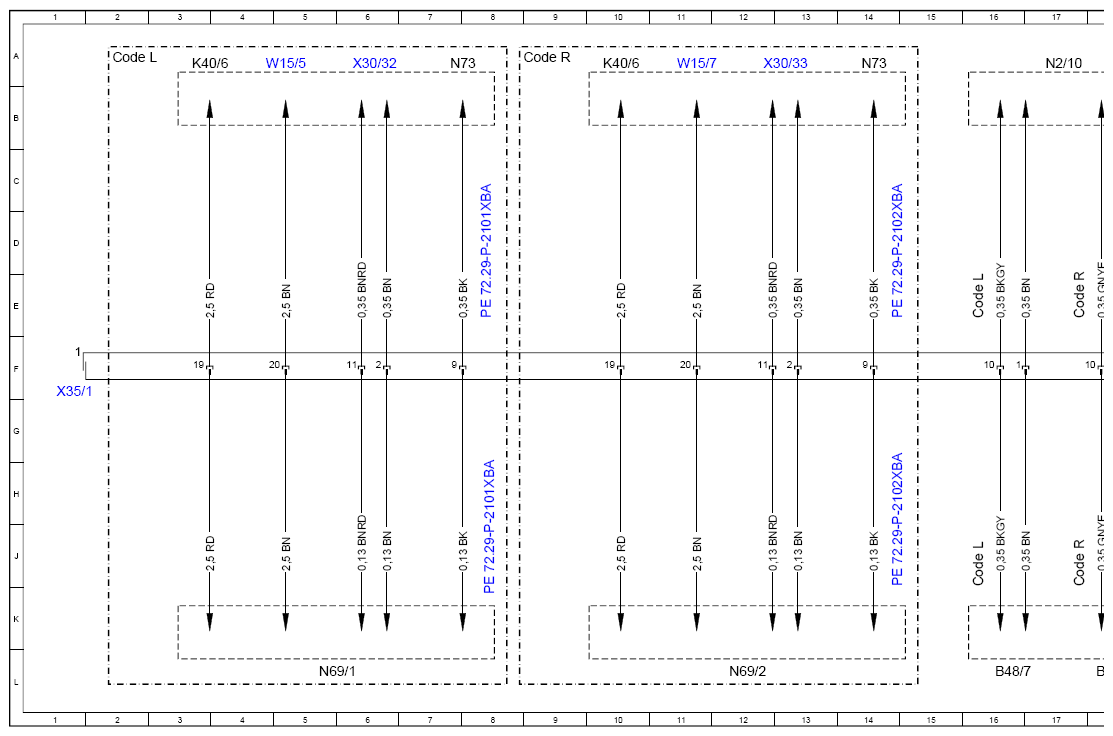

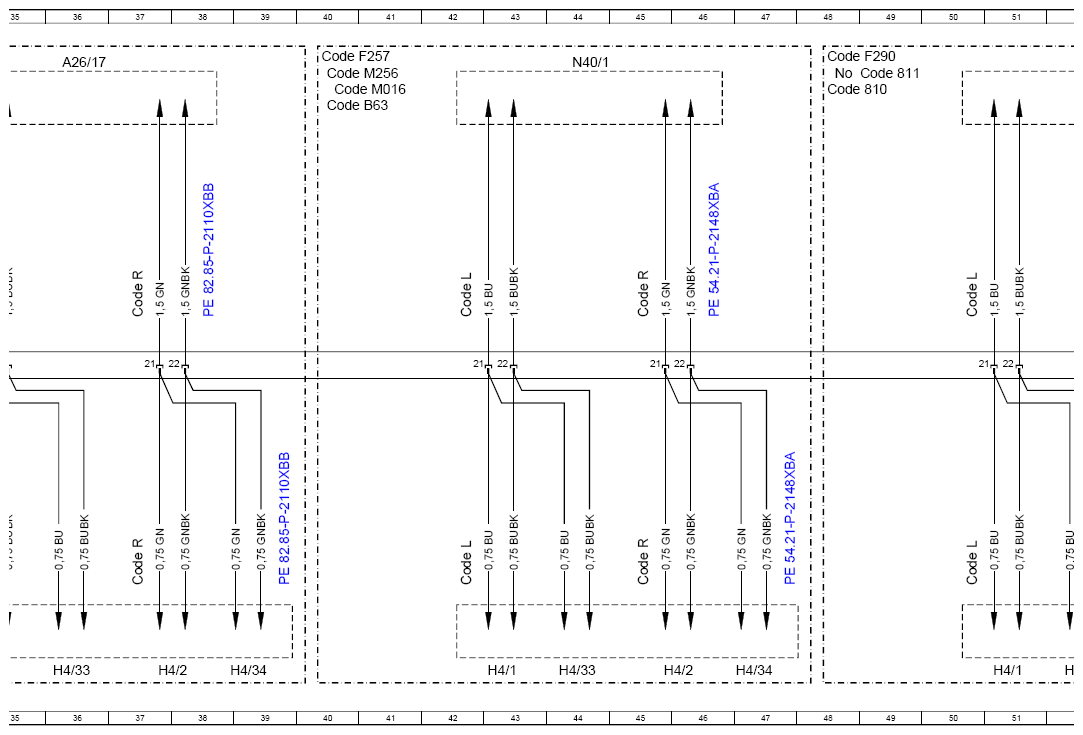

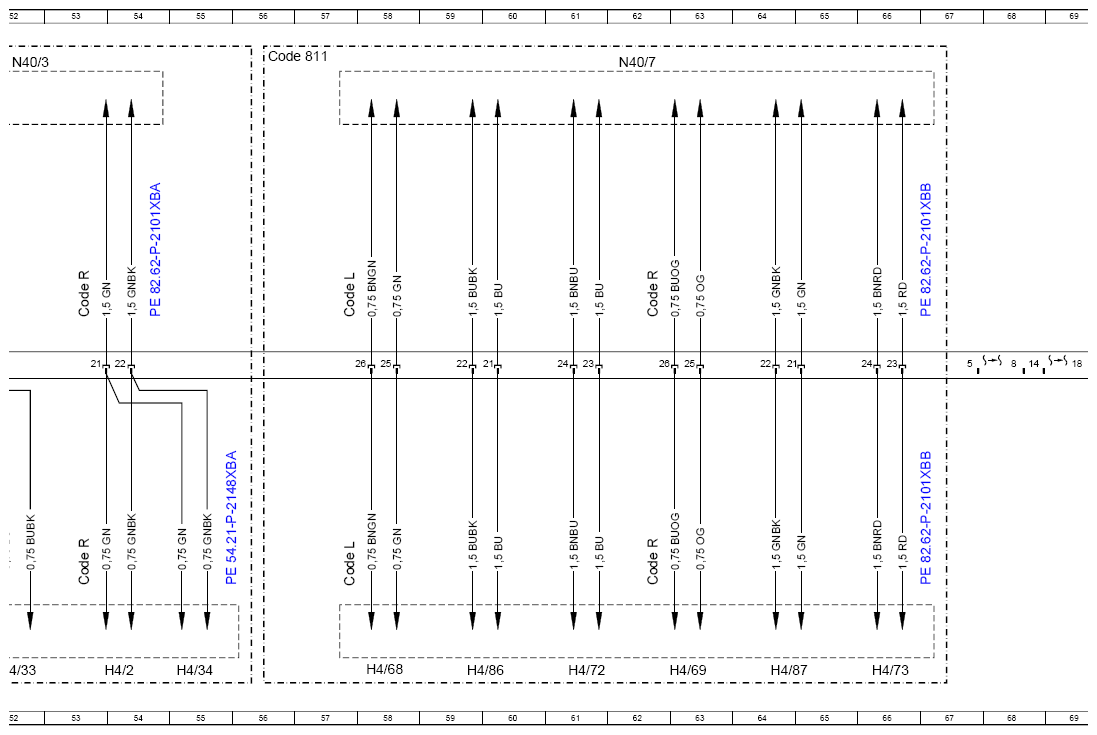

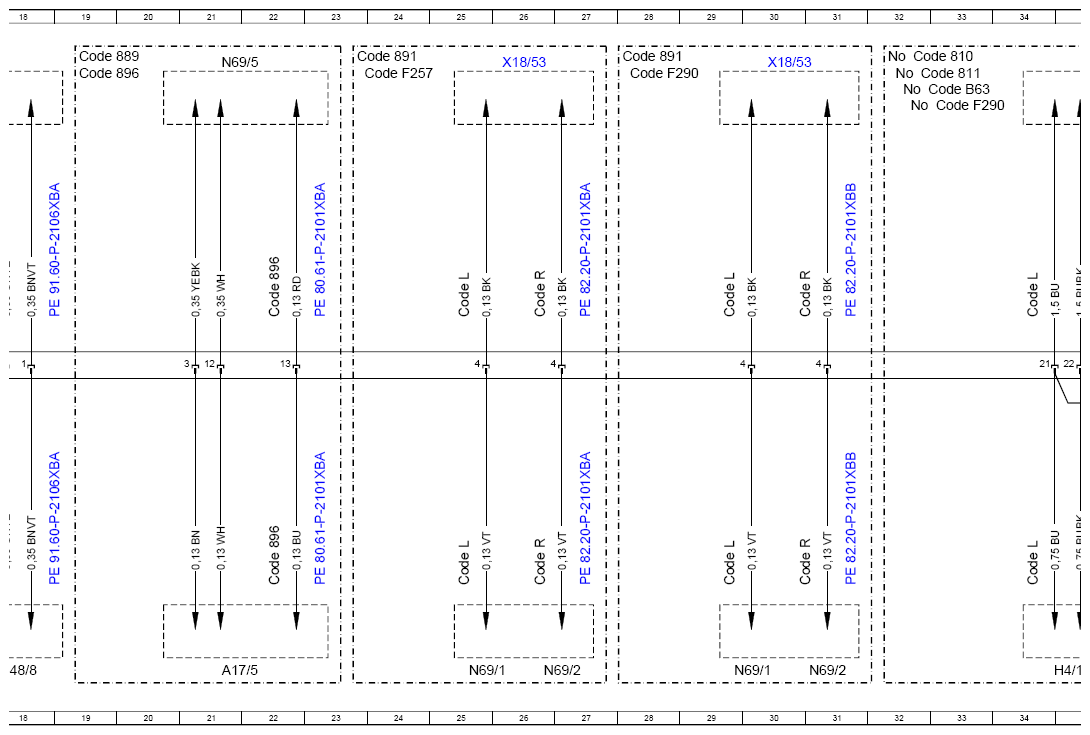

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBH
Model 257, 290 up to model year 2021 X35/1
| Code: | Designation: | Position: |
|---|---|---|

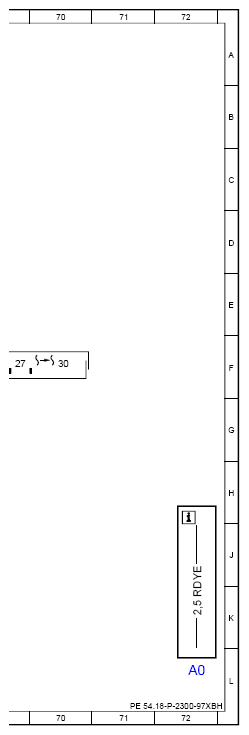

| A0 | Use of wiring diagrams | 72L |
| A17/5 | Driver door KEYLESS-GO door handle | 21L |
| A26/17 | Head unit | 36A |
| B48/7 | Left front door pressure sensor | 16L |
| B48/8 | Right front door pressure sensor | 18L |
| Code 810 | Sound system | 32A |
| Code 810 | Sound system | 48B |
| Code 811 | Advanced sound system | 32A |
| Code 811 | Advanced sound system | 49A |
| Code 811 | Advanced sound system | 56A |
| Code 889 | KEYLESS-GO | 19A |
| Code 891 | Premium ambient lighting | 23A |
| Code 891 | Premium ambient lighting | 28A |
| Code 896 | Vehicle access and drive authorization via mobile phone | 19A |
| Code 896 | Vehicle access and drive authorization via mobile phone | 22E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 22J |
| Code B63 | Sporty engine sound | 32B |
| Code B63 | Sporty engine sound | 40B |
| Code F257 | MODEL SERIES 257 | 23A |
| Code F257 | MODEL SERIES 257 | 40A |
| Code F290 | Model series 290 | 33B |
| Code F290 | Model series 290 | 28A |
| Code F290 | Model series 290 | 48A |
| Code L | LEFT-HAND DRIVE | 16J |
| Code L | LEFT-HAND DRIVE | 16E |
| Code L | LEFT-HAND DRIVE | 34E |
| Code L | LEFT-HAND DRIVE | 34J |
| Code L | LEFT-HAND DRIVE | 25E |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 29J |
| Code L | LEFT-HAND DRIVE | 29E |
| Code L | LEFT-HAND DRIVE | 2A |
| Code L | LEFT-HAND DRIVE | 42J |
| Code L | LEFT-HAND DRIVE | 42E |
| Code L | LEFT-HAND DRIVE | 50J |
| Code L | LEFT-HAND DRIVE | 50E |
| Code L | LEFT-HAND DRIVE | 57E |
| Code L | LEFT-HAND DRIVE | 57J |
| Code M016 | Uprated high-performance engine | 40B |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 40A |
| Code R | RIGHT-HAND DRIVE | 17J |
| Code R | RIGHT-HAND DRIVE | 17E |
| Code R | RIGHT-HAND DRIVE | 37J |
| Code R | RIGHT-HAND DRIVE | 37E |
| Code R | RIGHT-HAND DRIVE | 26J |
| Code R | RIGHT-HAND DRIVE | 26E |
| Code R | RIGHT-HAND DRIVE | 31J |
| Code R | RIGHT-HAND DRIVE | 31E |
| Code R | RIGHT-HAND DRIVE | 8A |
| Code R | RIGHT-HAND DRIVE | 45J |
| Code R | RIGHT-HAND DRIVE | 45E |
| Code R | RIGHT-HAND DRIVE | 53J |
| Code R | RIGHT-HAND DRIVE | 53E |
| Code R | RIGHT-HAND DRIVE | 62J |
| Code R | RIGHT-HAND DRIVE | 62E |
| H4/1 | Left front door midrange speaker | 35L |
| H4/1 | Left front door midrange speaker | 43L |
| H4/1 | Left front door midrange speaker | 51L |
| H4/2 | Right front door midrange speaker | 37L |
| H4/2 | Right front door midrange speaker | 45L |
| H4/2 | Right front door midrange speaker | 54L |
| H4/33 | Left front door tweeter | 36L |
| H4/33 | Left front door tweeter | 44L |
| H4/33 | Left front door tweeter | 52L |
| H4/34 | Right front door tweeter | 39L |
| H4/34 | Right front door tweeter | 47L |
| H4/34 | Right front door tweeter | 55L |
| H4/68 | Left front door sound system tweeter | 58L |
| H4/69 | Right front door sound system tweeter | 63L |
| H4/72 | Left front door sound system woofer/midrange speaker | 61L |
| H4/73 | Right front door sound system woofer/midrange speaker | 66L |
| H4/86 | Left front door midrange speaker | 59L |
| H4/87 | Right front door midrange speaker | 64L |
| K40/6 | Driver-side fuse and relay module | 3A |
| K40/6 | Driver-side fuse and relay module | 10A |
| N2/10 | Supplemental restraint system control unit | 17A |
| N40/1 | Engine sound control unit | 44A |
| N40/3 | Sound system amplifier control unit | 52A |
| N40/7 | Advanced sound system amplifier control unit | 62A |
| N69/1 | Left front door control unit | 25L |
| N69/1 | Left front door control unit | 30L |
| N69/1 | Left front door control unit | 5L |
| N69/2 | Right front door control unit | 26L |
| N69/2 | Right front door control unit | 31L |
| N69/2 | Right front door control unit | 12L |
| N69/5 | KEYLESS-GO control unit | 21A |
| N73 | Electronic ignition switch control unit | 7A |
| N73 | Electronic ignition switch control unit | 14A |
| W15/5 | Left front footwell ground point | 5A |
| W15/7 | Right front footwell ground point | 11A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 26A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 30A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 6A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 13A |
| X35/1 | Driver door electrical connector | 1F |
