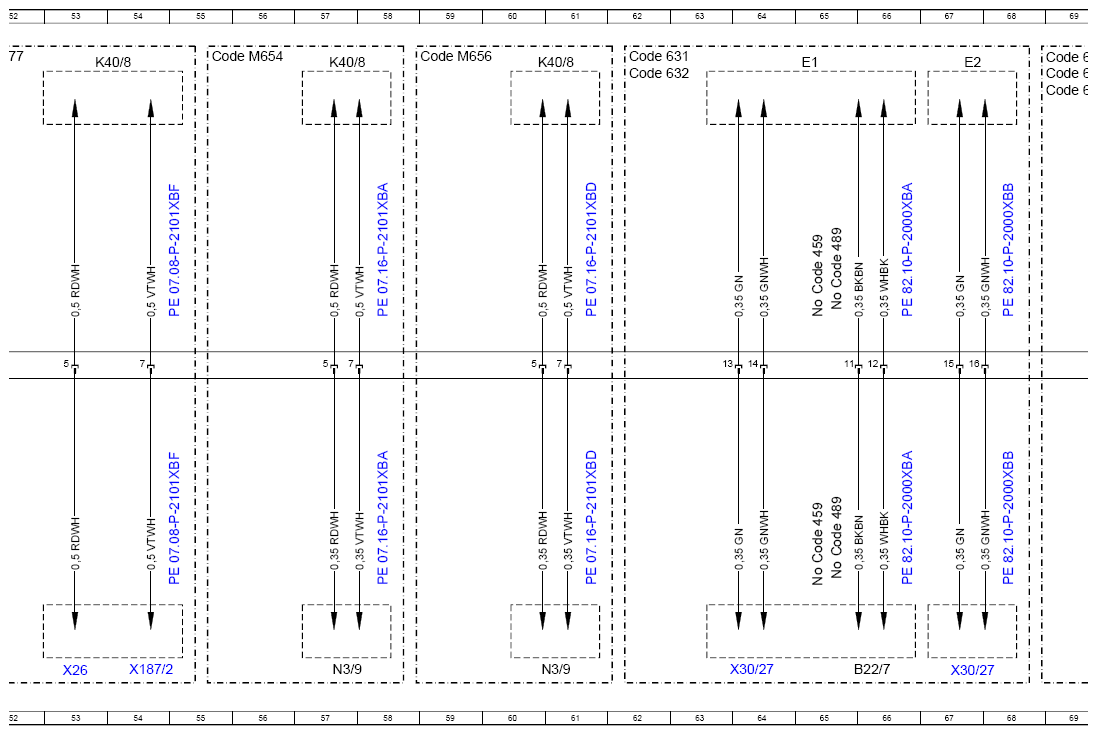

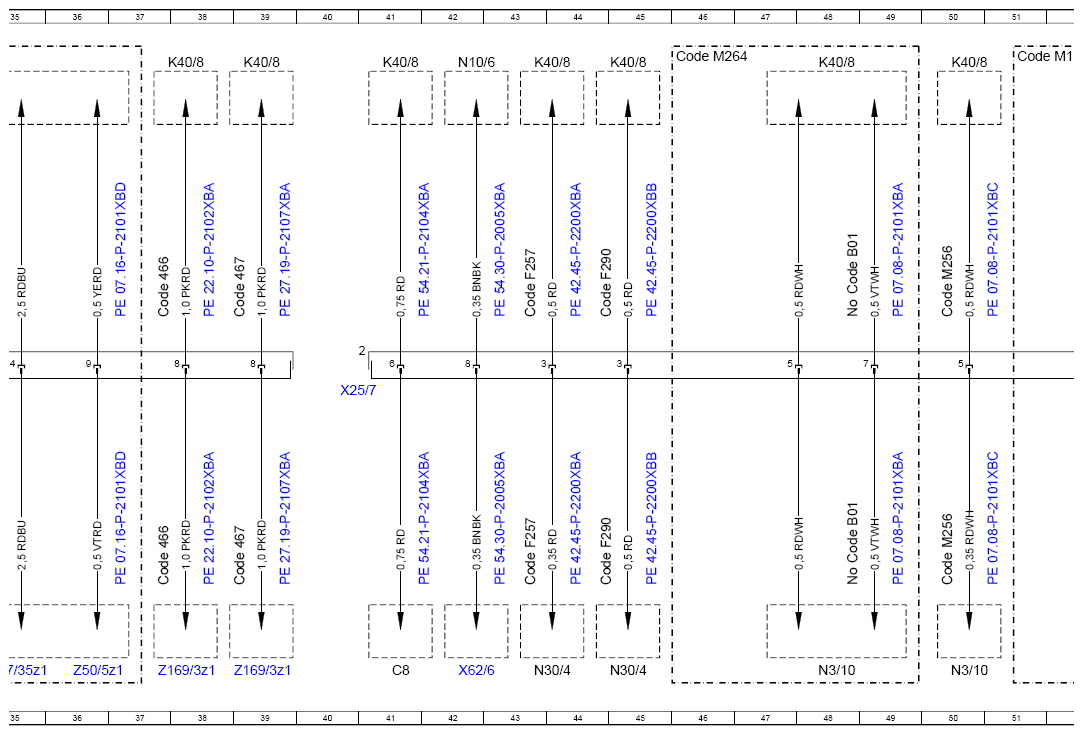

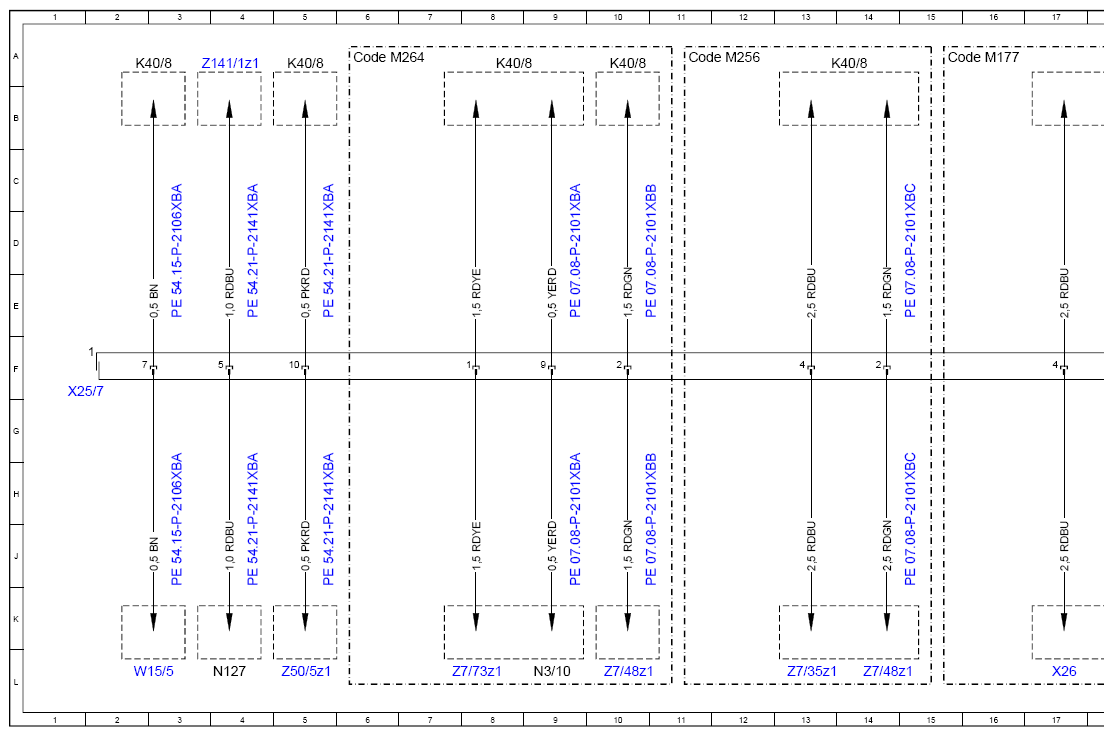

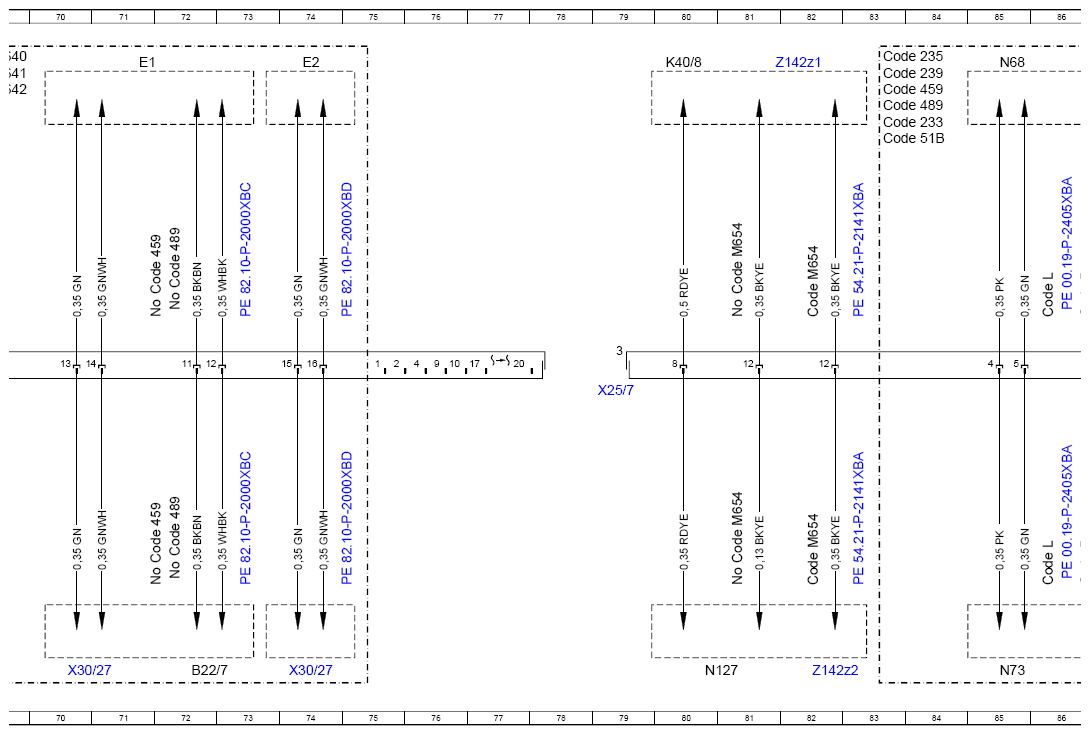

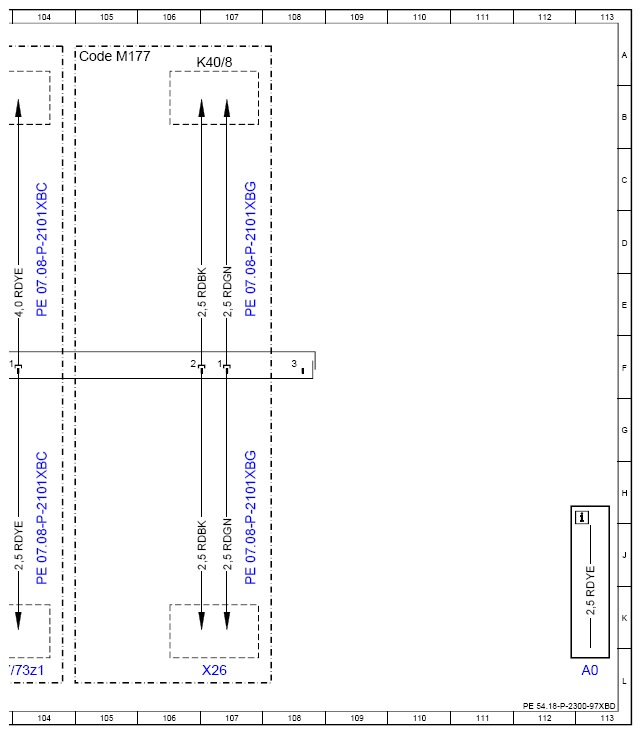

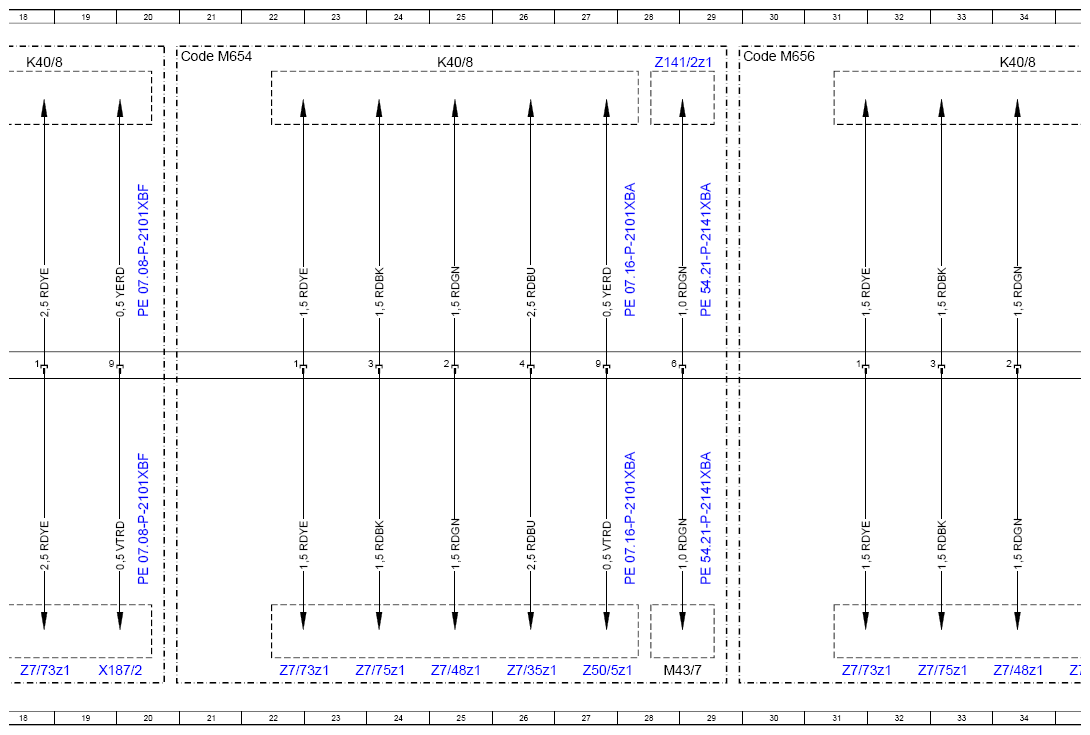

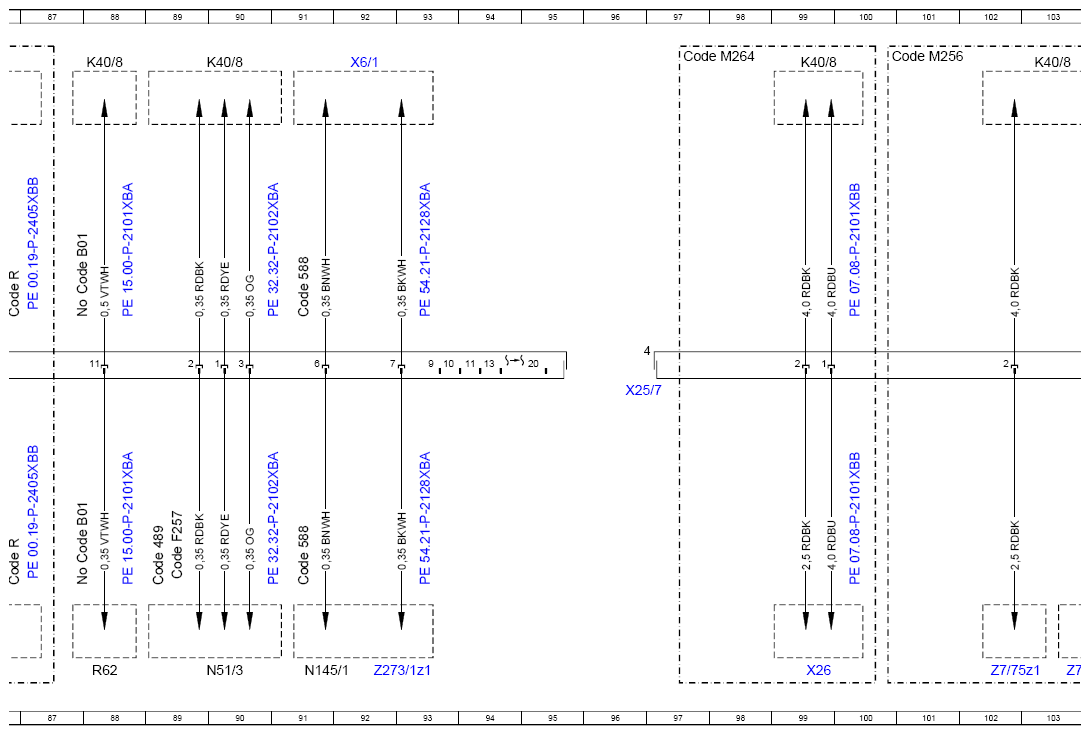

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBD
Model 257, 290 up to model year 2021 X25/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| B22/7 | Left rear level sensor | 66L |
| B22/7 | Left rear level sensor | 72L |
| C8 | Park pawl capacitor | 41L |
| Code 233 | DISTRONIC PLUS | 83B |
| Code 235 | Active Parking Assist with PARKTRONIC | 83A |
| Code 239 | Active Distance Assist DISTRONIC | 83A |
| Code 459 | Steel suspension with adjustable damping | 65E |
| Code 459 | Steel suspension with adjustable damping | 65J |
| Code 459 | Steel suspension with adjustable damping | 72J |
| Code 459 | Steel suspension with adjustable damping | 72E |
| Code 459 | Steel suspension with adjustable damping | 83B |
| Code 466 | Active engine mount | 37E |
| Code 466 | Active engine mount | 37J |
| Code 467 | Electronic locking differential | 39J |
| Code 467 | Electronic locking differential | 39E |
| Code 489 | AIR BODY CONTROL | 65E |
| Code 489 | AIR BODY CONTROL | 65J |
| Code 489 | AIR BODY CONTROL | 72J |
| Code 489 | AIR BODY CONTROL | 72E |
| Code 489 | AIR BODY CONTROL | 83B |
| Code 489 | AIR BODY CONTROL | 89J |
| Code 51B | EURO-NCAP | 83B |
| Code 588 | 91E | |
| Code 588 | 91J | |
| Code 631 | Static LED headlamp, left-hand traffic | 62A |
| Code 632 | Static LED headlamp, right-hand traffic | 62A |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 68A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 68A |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 68B |
| Code B01 | 48V technology | 48J |
| Code B01 | 48V technology | 48E |
| Code B01 | 48V technology | 88J |
| Code B01 | 48V technology | 88E |
| Code F257 | MODEL SERIES 257 | 43J |
| Code F257 | MODEL SERIES 257 | 43E |
| Code F257 | MODEL SERIES 257 | 89J |
| Code F290 | Model series 290 | 45E |
| Code F290 | Model series 290 | 45J |
| Code L | LEFT-HAND DRIVE | 86J |
| Code L | LEFT-HAND DRIVE | 86E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 15A |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 51A |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 105A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 11A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 50E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 50J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 100A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 6A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 46A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 97A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 21A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 55A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 81E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 81J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 82J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 82E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 30A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 58A |
| Code R | RIGHT-HAND DRIVE | 86E |
| Code R | RIGHT-HAND DRIVE | 86J |
| E1 | Left front lamp unit | 65A |
| E1 | Left front lamp unit | 71A |
| E2 | Right front lamp unit | 67A |
| E2 | Right front lamp unit | 74A |
| K40/8 | Engine fuse and relay module | 8A |
| K40/8 | Engine fuse and relay module | 10A |
| K40/8 | Engine fuse and relay module | 14A |
| K40/8 | Engine fuse and relay module | 18A |
| K40/8 | Engine fuse and relay module | 25A |
| K40/8 | Engine fuse and relay module | 34A |
| K40/8 | Engine fuse and relay module | 38A |
| K40/8 | Engine fuse and relay module | 39A |
| K40/8 | Engine fuse and relay module | 2A |
| K40/8 | Engine fuse and relay module | 5A |
| K40/8 | Engine fuse and relay module | 48A |
| K40/8 | Engine fuse and relay module | 50A |
| K40/8 | Engine fuse and relay module | 53A |
| K40/8 | Engine fuse and relay module | 57A |
| K40/8 | Engine fuse and relay module | 61A |
| K40/8 | Engine fuse and relay module | 45A |
| K40/8 | Engine fuse and relay module | 43A |
| K40/8 | Engine fuse and relay module | 41A |
| K40/8 | Engine fuse and relay module | 88A |
| K40/8 | Engine fuse and relay module | 90A |
| K40/8 | Engine fuse and relay module | 80A |
| K40/8 | Engine fuse and relay module | 99A |
| K40/8 | Engine fuse and relay module | 103A |
| K40/8 | Engine fuse and relay module | 107A |
| M43/7 | Low temperature circuit circulation pump 2 | 28L |
| N10/6 | Front SAM control unit | 42A |
| N127 | Drivetrain control unit | 4L |
| N127 | Drivetrain control unit | 80L |
| N145/1 | Drive unit control unit | 91L |
| N3/10 | ME-SFI [ME] control unit | 9L |
| N3/10 | ME-SFI [ME] control unit | 48L |
| N3/10 | ME-SFI [ME] control unit | 50L |
| N3/9 | CDI control unit | 57L |
| N3/9 | CDI control unit | 61L |
| N30/4 | Electronic Stability Program control unit | 45L |
| N30/4 | Electronic Stability Program control unit | 43L |
| N51/3 | AIR BODY CONTROL control unit | 90L |
| N68 | Electrical power steering control unit | 85A |
| N73 | Electronic ignition switch control unit | 85L |
| R62 | Voltage dip limiter | 88L |
| W15/5 | Left front footwell ground point | 2L |
| X187/2 | Combustion engine electrical connector 2 | 19L |
| X187/2 | Combustion engine electrical connector 2 | 54L |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 2F |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 41F |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 79F |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 96F |
| X26 | Engine/engine compartment electrical connector | 17L |
| X26 | Engine/engine compartment electrical connector | 53L |
| X26 | Engine/engine compartment electrical connector | 99L |
| X26 | Engine/engine compartment electrical connector | 107L |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 64L |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 67L |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 74L |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 70L |
| X6/1 | 92A | |
| X62/6 | Front axle electrical connector, right distributor | 42L |
| Z141/1z1 | Circuit 87C connector sleeve | 4A |
| Z141/2z1 | Circuit 87C connector sleeve | 28A |
| Z142z1 | LIN C3 connector sleeve | 82A |
| Z142z2 | LIN C3 connector sleeve | 82L |
| Z169/3z1 | Tml. 15 connector sleeve | 38L |
| Z169/3z1 | Tml. 15 connector sleeve | 39L |
| Z273/1z1 | 92L | |
| Z50/5z1 | Circuit 15M connector sleeve | 27L |
| Z50/5z1 | Circuit 15M connector sleeve | 36L |
| Z50/5z1 | Circuit 15M connector sleeve | 5L |
| Z7/35z1 | Circuit 87M connector sleeve | 13L |
| Z7/35z1 | Circuit 87M connector sleeve | 26L |
| Z7/35z1 | Circuit 87M connector sleeve | 35L |
| Z7/48z1 | Circuit 87M connector sleeve | 10L |
| Z7/48z1 | Circuit 87M connector sleeve | 14L |
| Z7/48z1 | Circuit 87M connector sleeve | 25L |
| Z7/48z1 | Circuit 87M connector sleeve | 34L |
| Z7/73z1 | Circuit 87M connector sleeve | 8L |
| Z7/73z1 | Circuit 87M connector sleeve | 18L |
| Z7/73z1 | Circuit 87M connector sleeve | 22L |
| Z7/73z1 | Circuit 87M connector sleeve | 31L |
| Z7/73z1 | Circuit 87M connector sleeve | 103L |
| Z7/75z1 | Circuit 87M connector sleeve | 24L |
| Z7/75z1 | Circuit 87M connector sleeve | 32L |
| Z7/75z1 | Circuit 87M connector sleeve | 102L |
