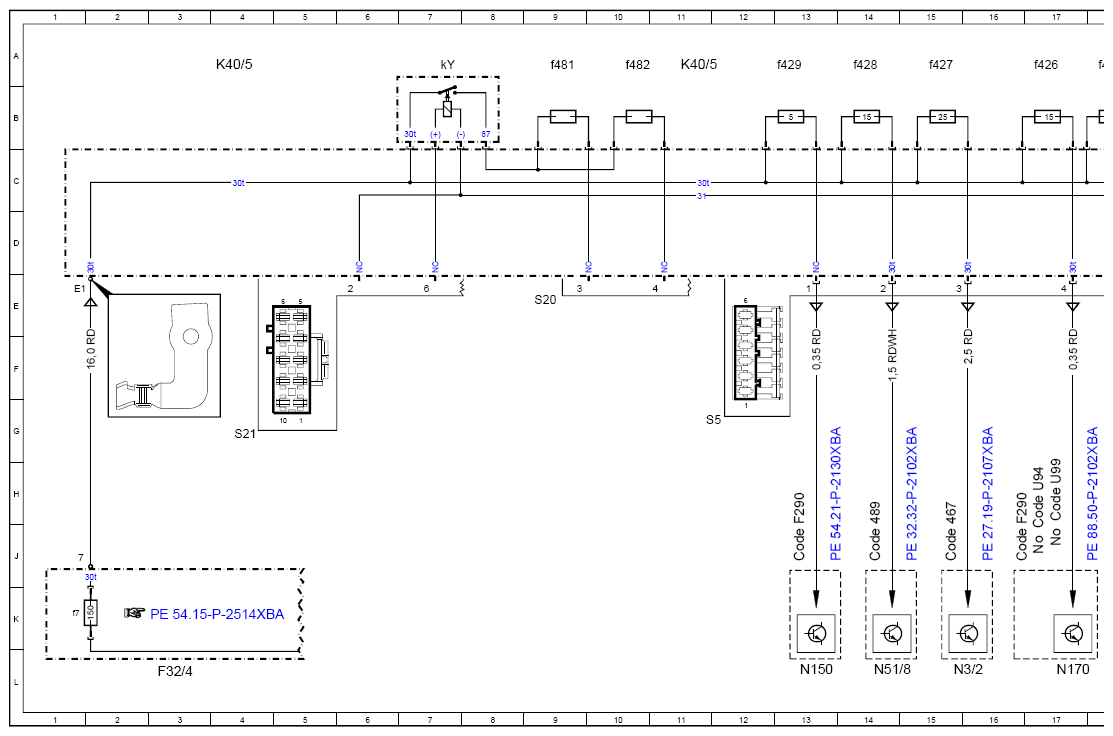

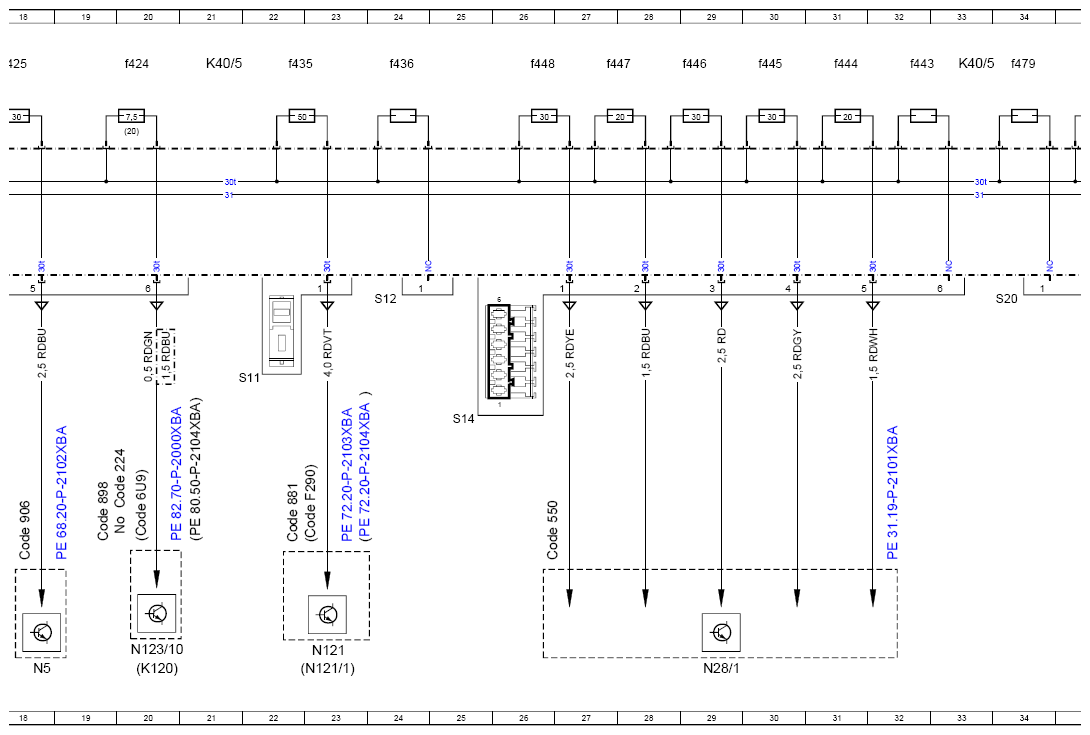

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97XBB
Model 257 up to model year 2021 with code 489 (AIR BODY CONTROL)
Model 257 up to model year 2021 with code 550 (Trailer coupling)
Module K40/5 plug S5, S11, S12, S14, S20
Model 257 up to model year 2021 with code 881 (Remote boot-lid closing)
Module K40/5 plug S5, S11, S12, S14, S20
Module K40/5 plug S5, S11, S12, S14, S20
Model 257 up to model year 2021 with code 906 (Front armrest heater)
Module K40/5 plug S5, S11, S12, S14, S20
Model 290 up to model year 2021 Module K40/5 plug S5, S11, S12, S14, S20
| Code: | Designation: | Position: |
|---|---|---|

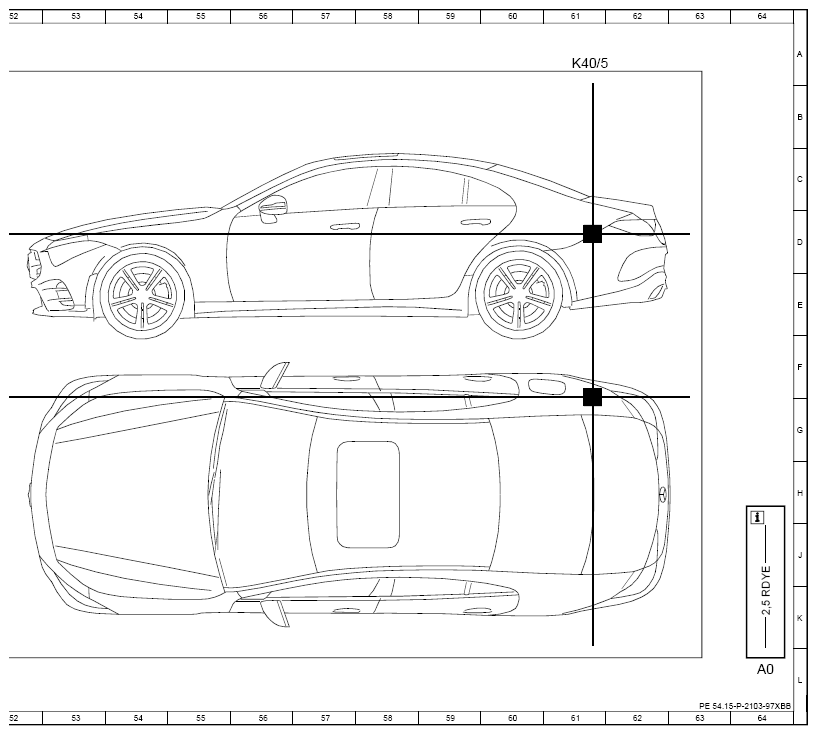

| A0 | Use of wiring diagrams | 64L |
| A105/3 | Touchscreen | 35L |
| Code 224 | Design rear individual seats | 20H |
| Code 224 | Design rear individual seats | 35J |
| Code 467 | Electronic locking differential | 15J |
| Code 489 | AIR BODY CONTROL | 14J |
| Code 550 | Trailer hitch | 27J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 20J |
| Code 881 | Trunk lid/liftgate control | 22J |
| Code 898 | Wireless charging in rear passenger compartment | 19J |
| Code 906 | Front armrest heater | 18J |
| Code F290 | Model series 290 | 23J |
| Code F290 | Model series 290 | 13J |
| Code F290 | Model series 290 | 17J |
| Code U94 | Static rear spoiler | 17J |
| Code U99 | Carbon static rear spoiler | 17H |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f7 | Fuse 7 | 1K |
| K120 | Theft detection system horn relay | 20L |

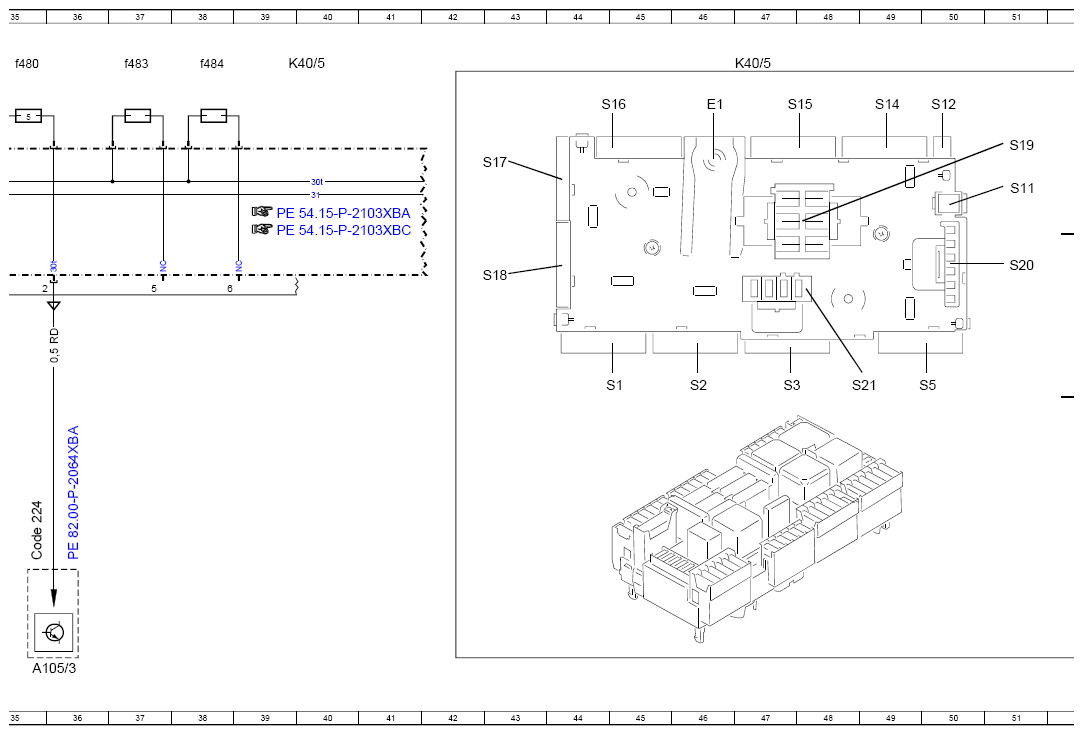

| K40/5 | Rear fuse and relay module | 61A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 33A |
| K40/5 | Rear fuse and relay module | 40A |
| K40/5 | Rear fuse and relay module | 47A |
| K40/5f424 | Fuse 424 | 20A |
| K40/5f425 | Fuse 425 | 18A |
| K40/5f426 | Fuse 426 | 17A |
| K40/5f427 | Fuse 427 | 15A |
| K40/5f428 | Fuse 428 | 14A |
| K40/5f429 | Fuse 429 | 13A |
| K40/5f435 | Fuse 435 | 22A |
| K40/5f436 | Fuse 436 | 24A |
| K40/5f443 | Fuse 443 | 32A |
| K40/5f444 | Fuse 444 | 31A |
| K40/5f445 | Fuse 445 | 30A |
| K40/5f446 | Fuse 446 | 29A |
| K40/5f447 | Fuse 447 | 27A |
| K40/5f448 | Fuse 448 | 26A |
| K40/5f479 | Fuse 479 | 34A |
| K40/5f480 | Fuse 480 | 35A |
| K40/5f481 | Fuse 481 | 9A |
| K40/5f482 | Fuse 482 | 10A |
| K40/5f483 | Fuse 483 | 37A |
| K40/5f484 | Fuse 484 | 38A |
| K40/5kY | Backup relay | 7A |
| N121 | Trunk lid control control unit | 23L |
| N121/1 | Tailgate control control unit | 23L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 20L |
| N150 | DIRECT SELECT INTERFACE | 13L |
| N170 | Rear wing control unit | 17L |
| N28/1 | Trailer recognition control unit | 29L |
| N3/2 | Electric differential lock control unit | 15L |
| N5 | Armrest heater control unit | 18L |
| N51/8 | AIR BODY CONTROL Plus control unit | 14L |
