Remove/Install Instrument Cluster Control Unit - AR54.30-P-7101FR
Model 257, 290
as of model year 2021
Shown on model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove trim at bottom for instrument panel or driver's side. | AR68.10-P-1501FR | |

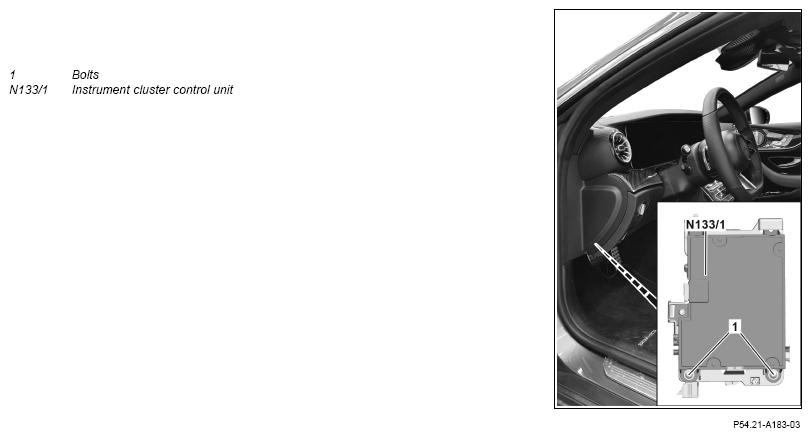

| 2 | Unscrew screws (1) and remove instrument cluster control unit (N133/1) with connected electric lines. | This will result in damage to the electric lines and can impair their function. |
|
| 3 | Release and disconnect electrical connectors of instrument cluster control unit (N133/1) and remove instrument cluster control unit (N133/1). | ||
| 4 | Install in the reverse order. | ||
| 5 | Commission instrument cluster control unit (N133/1). | When replacing instrument cluster control unit (N133/1). | |
| AD00.00-P-2000-06FR |
