Overview Of Energy Management System Components - GF54.10-P-9990FR
Model 257, 290 up to model year 2021

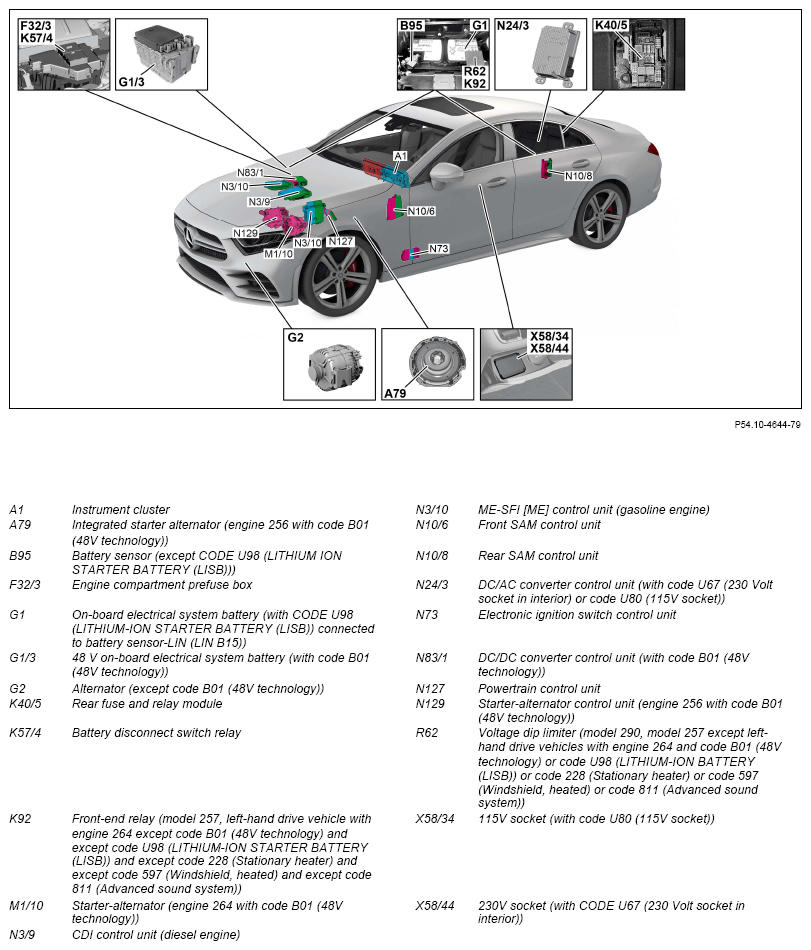

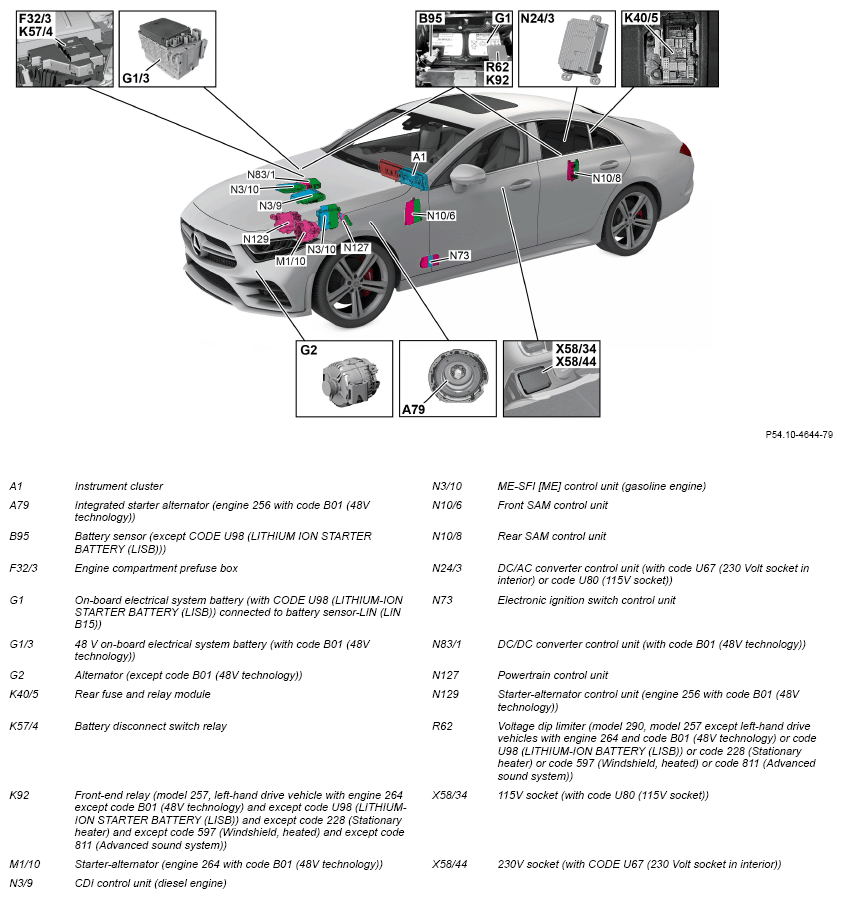

Shown on model 257
Model 257, 290 up to model year 2021 with code B01 (48V technology)
The on-board electrical system battery and the associated battery sensor are installed in the trunk recess under the cover.
Model 257, 290 up to model year 2021 except code B01 (48 V technology)
The on-board electrical system battery and the associated battery sensor on vehicles except code B01 (48V technology) are installed in the engine compartment.
Model 257, 290 up to model year 2021 with code B01 (48V technology)
The low-temperature circuit 2 temperature sensor (B10/14) and low-temperature circuit circulation pump 2 (M43/7) are also installed.

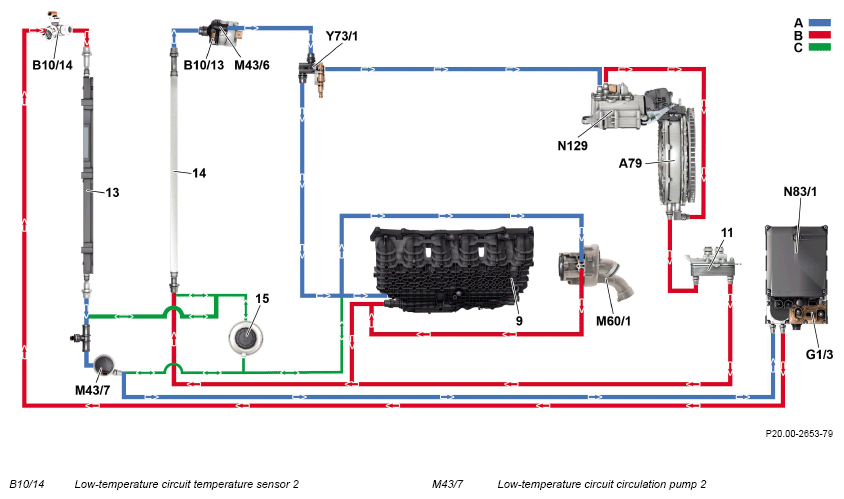

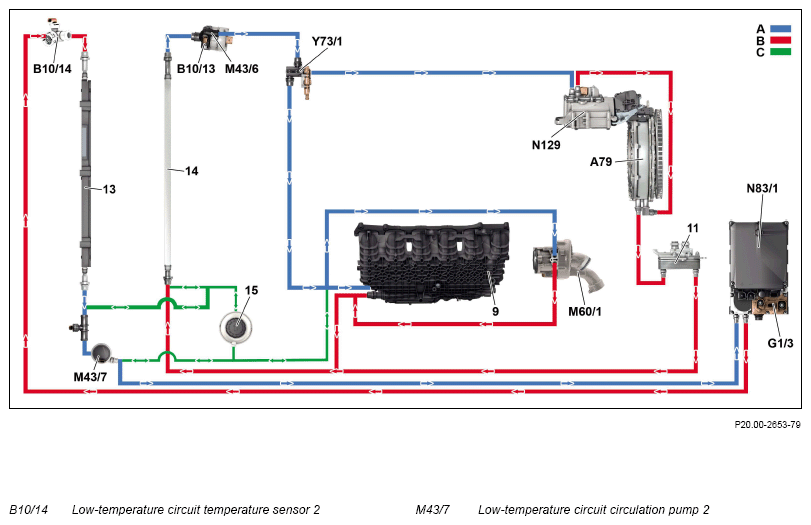

View of low-temperature circuit, shown on engine 256
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Component description for starter-alternator | Model 257 with engine 264 up to model year 2021 with code B01 (48V technology) M1/10 | GF15.40-P-2103FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 N3/10 | GF07.61-P-6000MNL | |
| Model 257 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for DC/DC converter control unit | Model 257, 290 up to model year 2021 with code B01 (48V technology) N83/1 | GF54.10-P-3006FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORD | |
| Model 257 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OIA | ||
| Model 257, 290 with engine 256.9 up to model year 2021 Model 290 with engine 177.9 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Starter-alternator control unit component description | Model 257, 290 with engine 256 up to model year 2021 with code B01 (48V technology) N129 | GF54.21-P-4191FR | |
| Table of contents for function description of energy management | GF54.10-P-0990FR |
