Remove/Install Front Axle Brake Caliper - AR42.10-P-0070FRB

Model 213.061/261, 238.361/461, 257.361

4-piston fixed-caliper brake

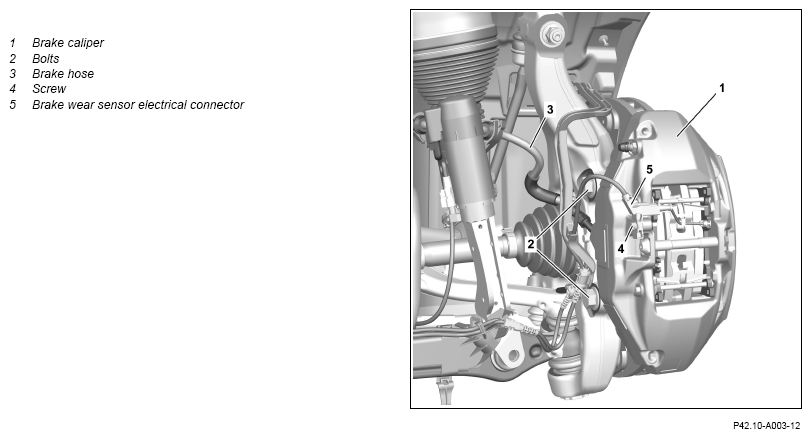

Fig 1: Front Axle 4-Piston Fixed Brake Caliper Components Location - Model 257.361

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service Brake is operated for the first time after repair work.	Before starting the engine, actuate Brake pedal several times until pressure is built up and maintained in the Brake system.	AS42.50-Z-0002-01A
	Risk of poisoning  from swallowing Brake fluid. Risk of injury  from skin and eye contact with Brake fluid	Only pour Brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling Brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on repairs to Brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of composite Brake disks		AH42.10-P-9406-12LF
Notice	Brake fluid notes		AH42.50-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove brakepads.		AR42.10-P-1610FRB
2	Unscrew bolt (4) and remove brakepad wear sensor electrical connector (5).	When removing Brake caliper (1) on right side of vehicle.
		Bolt, Brake wear sensor to Brake caliper	*BA42.10-P-1002-10X
3	Remove Brake hose (3).	Model 213.061/261 4-piston fixed-caliper brake	AR42.10-P-0013LW
		Model 238.361/461 4-piston fixed-caliper brake	AR42.10-P-0026LWO
		Model 257.361 4-piston fixed-caliper brake	AR42.10-P-0026FR
		Bleed Brake system only after installing brakepads.
4	Unscrew bolts (2)	Bolt, Brake caliper/ Brake caliper support to steering knuckle	*BA42.10-P-1001-10X
5	Remove Brake caliper (1).
	Check
6	Check Brake caliper (1) and dust boots of Brake pistons for leak tightness and damage.	In the event of a problem, ↓ Replace Brake caliper (1).
		The new Brake caliper (1) is shipped in prefilled condition and it may not be drained. Otherwise the Brake caliper (1) cannot be vented.
7	Check Brake disks for wear and condition.	Model 238.361/461 4-piston fixed-caliper brake	AR42.10-P-0120LWO
		Model 213.061/261 4-piston fixed-caliper brake	AR42.10-P-0120LWG
		Model 257.361 4-piston fixed-caliper brake In the event of a problem, ↓ Replace Brake disks.	AR42.10-P-0120FR
		Model 238.361/461 4-piston fixed-caliper brake	AR42.10-P-0220LWO
		Model 213.061/261 4-piston fixed-caliper brake	AR42.10-P-0220EWE
		Model 257.361 4-piston fixed-caliper brake	AR42.10-P-0220FR
8	Install in the reverse order
9	Bleed Brake system.	Model 213.061/261, 238.361/461 4-piston fixed-caliper brake	AR42.10-P-0010LWE
		Model 257.361 4-piston fixed-caliper brake	AR42.10-P-0010FR
10	Operate Brake pedal several times until the brakepads contact the Brake disks.	Firm resistance should be noticeable at the Brake pedal.
	Check
11	Check and correct Brake fluid level in Brake fluid expansion reservoir.
			AP42.10-P-4210B
12	Perform Brake test on test stand.
			AP42.00-P-4290BA
