Apply Sealant To Oil Engine Pan - AR01.45-P-0002-01MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES

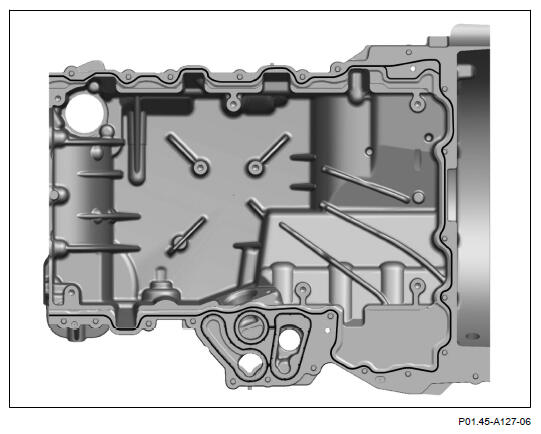

| 11.05.2022 | Sealant path adapted. | P01.45-A127-06 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
- Apply the sealant with the
squeeze gun.
The sealing surfaces must be cleaned.
Do not spread the sealant bead.
Use only the sealant listed in the repair products.
Apply sealant only at specified surfaces in bead form with a height and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Install oil pan within 10 min after application of sealant.
