Rear Lamp Unit Mount Removal - Ar63.50-P-0004-01MFC

Model 118

Fig 1: Spot Weld Milling Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

The superordinate service document as well as the safety information in the service document must be observed.

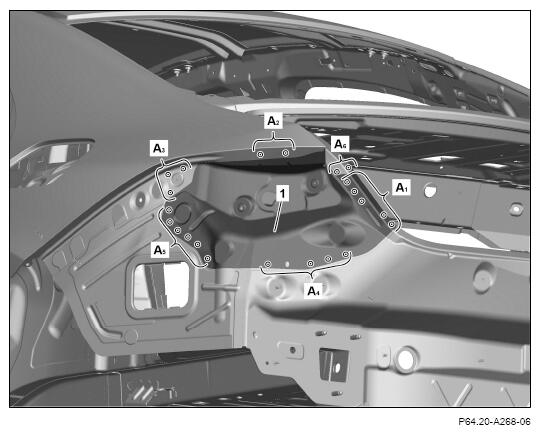

1. Expose spot welds at lamp unit mount (1) and cut off (area A₁ , A₂ , A₃ , A₄ , A₅ and A₆ ).
2. Remove lamp unit mount (1).

   Courtesy of MERCEDES-BENZ USA

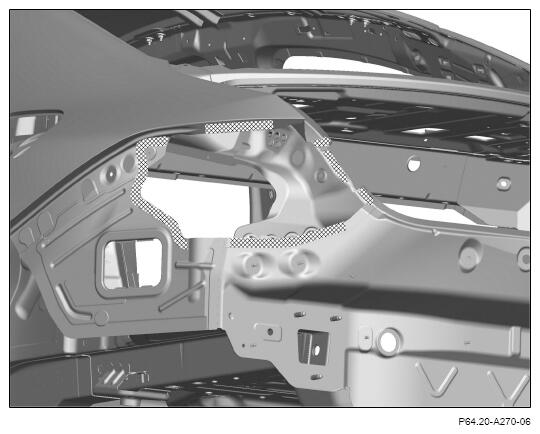

3. Grind mating surfaces down to bare metal in cross-hatched areas.



   Sand down spot weld flanges to bare metal on both sides.

4. Remove grinding dust and drill chips.
5. Apply zinc dust paint to insides of spot weld flanges onto connecting flanges that are no longer accessible after installing side roof paneling.

Courtesy of MERCEDES-BENZ USA
