Outer Rear Wheel Well Installation - Ar63.10-P-0670-06MFC
Model 118.3
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
The next steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
- Install outer rear wheel well (2), fit, and fix in place.

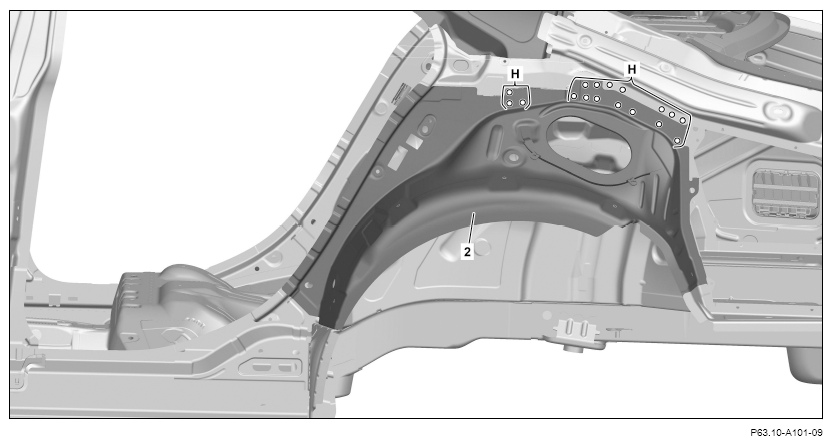

- Drill rivet holes in outer rear wheel well (2) with Ø 6.7 mm bit (areas H).
- Remove outer rear wheel well (2).
- Deburr outer rear wheel well (2) and body on both sides.
- Remove drill chips.
- Coat insides of rivet holes with zinc dust paint.

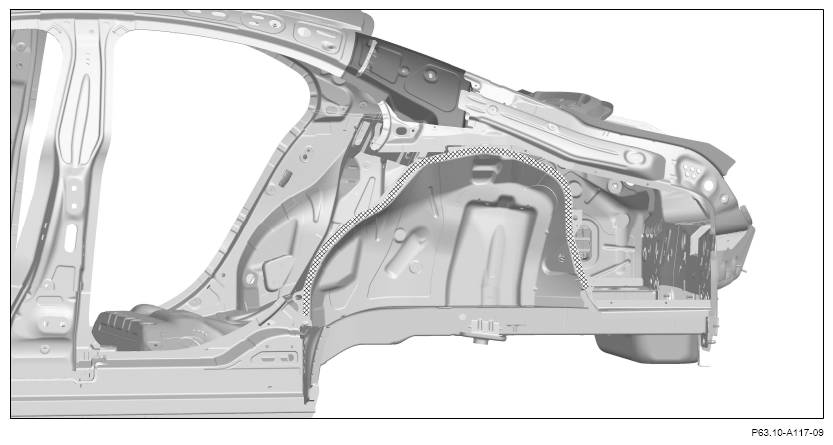

- Apply 2-component adhesive in cross-hatched areas on body.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install outer rear wheel well (2), fit, and fix in place.

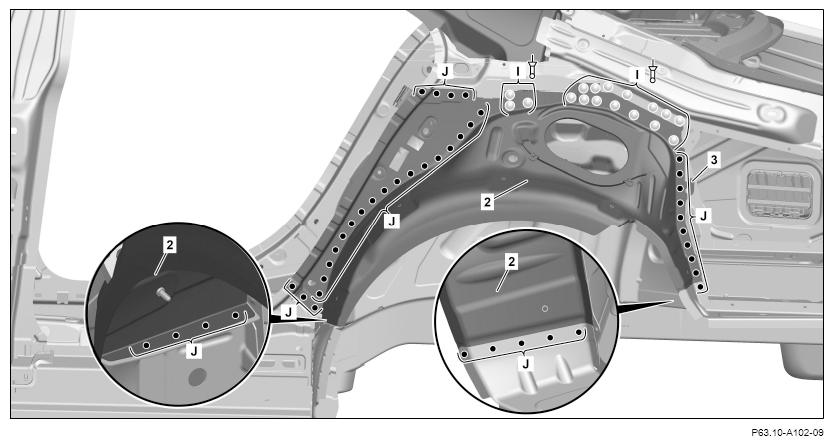

- Rivet outer rear wheel well (2) with Ø 6.4x12 mm rivets (areas I).
- Outer rear wheel well (2)
(areas J).
- Flatten down fixing lug (3).
- Install side wall reinforcement (1), fit, and fix in place.
- Drill rivet holes in side wall reinforcement (1) with Ø 6.7 mm bit (areas K).
- Grind mating surfaces on side wall reinforcement (1) down to bare metal in cross-hatched areas.
- Remove side wall reinforcement (1).
- Deburr rivet holes on side wall reinforcement (1) and body on both sides.
- Remove drill chips and grinding dust.
- Coat insides of rivet holes with zinc dust paint.

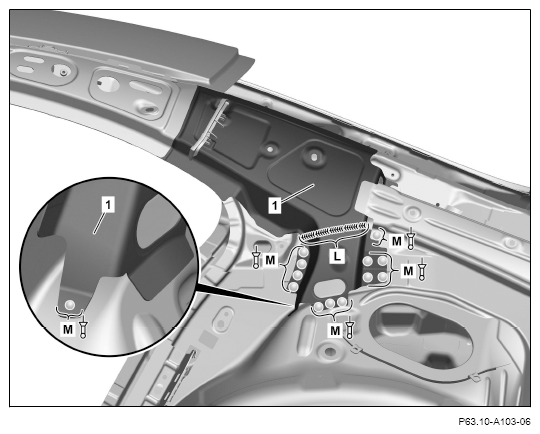

- Rivet side wall reinforcement (1) with Ø 6.4x12 mm rivets (areas M).
- Side wall reinforcement (1)
(area L).
