Check Outside Of Vehicle In Visible Area For Signs Of Damage - AP60.00-D-0050TS

Model 907

G13787961
  Damage and stress caused to paintwork by external influences   AH98.00-P-8070-02A
INSPECT Check
1 Check body and detachable parts for damage and completeness. IMPORTANT When doing so, check for deformations, cracks, scratches, missing component parts and other damage.
If necessary, Rectify any damage.
After obtaining special order.

2 Check vehicle paintwork for damage and check body for corrosion. IMPORTANT When doing so, check for stone chippings scratches, environmental influences and paint chippings.

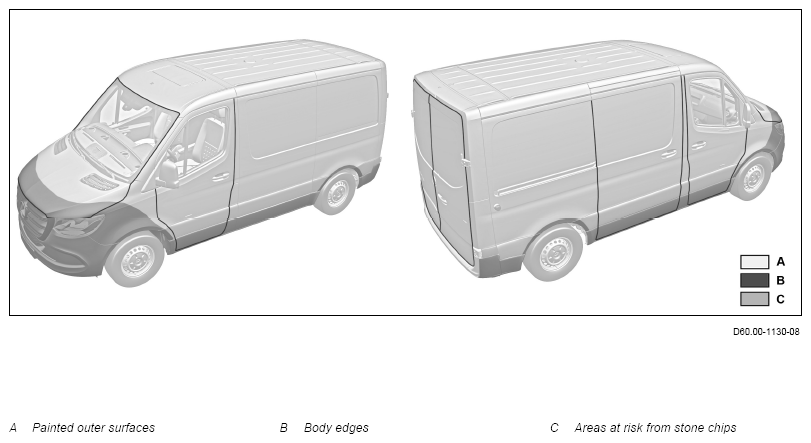

The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings.
If necessary, proceed in accordance with the country-specific regulations for mobility and body shel complaints.
IMPORTANT After obtaining special order.

3 Check glazing of exterior lights for damage IMPORTANT When doing so, check for water entry, blind reflectors, cracks, scratches, missing component parts and other damage.
If necessary, rectify problem.
IMPORTANT After obtaining special order.
