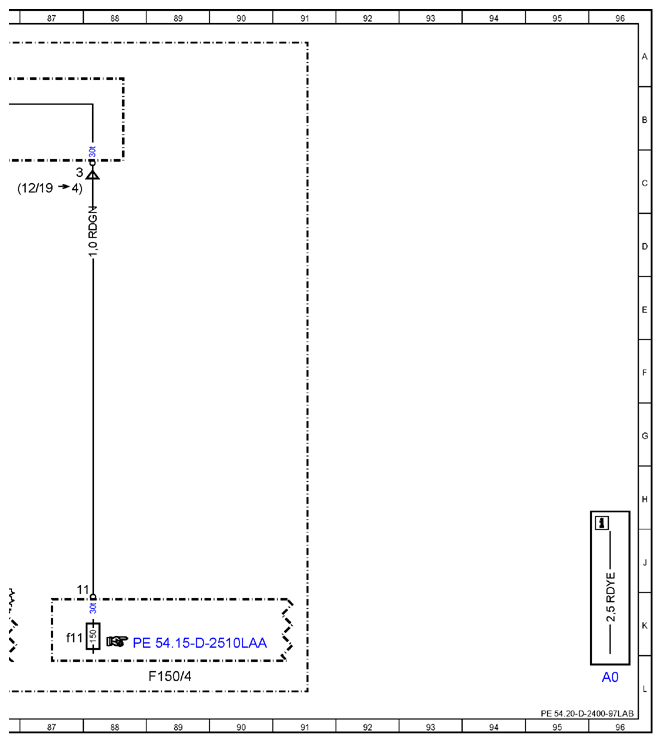

| AO |
Color code key |
96L |
| Code BR9 |
Preinstallation for Telma retarder |
33G |
| Code BR9 |
Preinstallation for Telma retarder |
30G |
| Code CB2 |
Air suspension comfort suspension |
30G |
| Code CB2 |
Air suspension comfort suspension |
33G |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
33F |
| Code E2F |
Pre-installation for windshield heater |
1A |

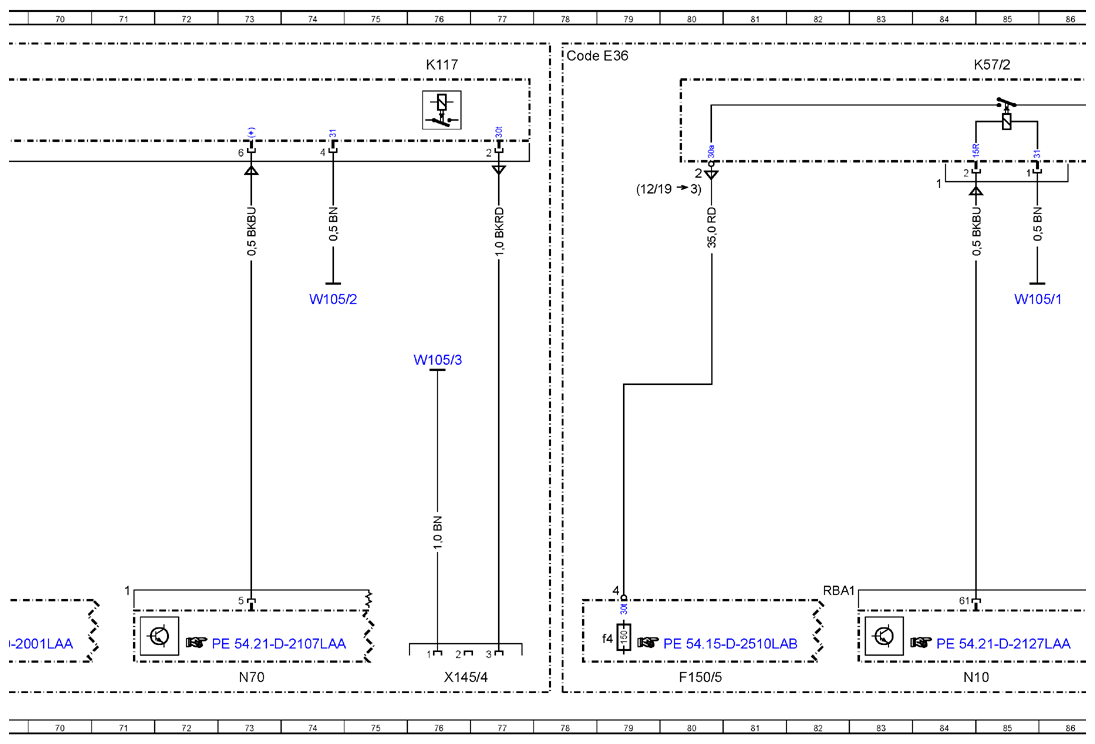

| Code E36 |
Cutoff relay with additional battery |
78A |

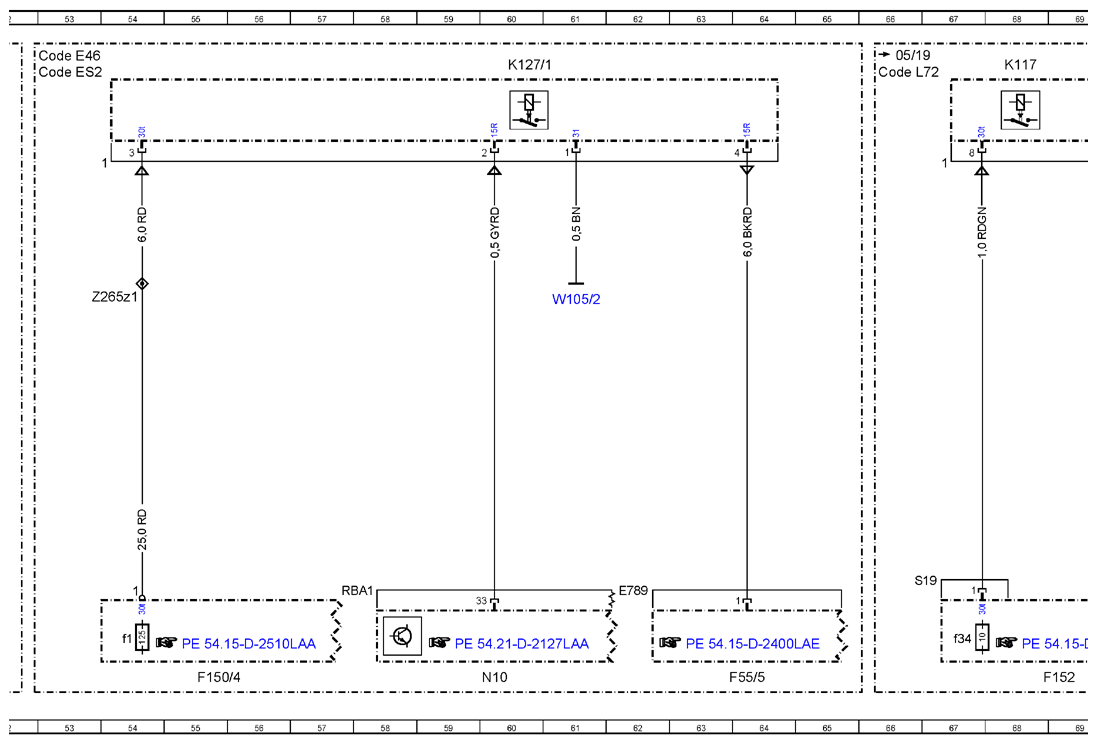

| Code E46 |
Socket, in cab |
53A |
| Code EK1 |
Terminal strip for electrical connection |
30E |
| Code ES2 |
Trunk/load compartment 12 V socket |
53A |
| Code EV3 |
Pre-installation of electrical scope for cargo liftgate |
30F |
| Code F49 |
Heated windshield |
1A |
| Code FR3 |
Reversing camera inside rearview mirror display |
30F |
| Code FR3 |
Reversing camera inside rearview mirror display |
33F |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
30F |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
33F |
| Code G42 |
7G-TRONIC PLUS |
30H |
| Code G42 |
7G-TRONIC PLUS |
33F |
| Code G42 |
7G-TRONIC PLUS |
33H |
| Code H22 |
Heated rear window |
37A |
| Code H72 |
Electric roof ventilator II |
30F |
| Code L72 |
Electrical system for other make body |
66A |
| Code P57 |
Preinstallation for three-way dump truck |
30G |
| Code V21 |
Luxury interior trim |
36J |
| Code V21 |
Luxury interior trim |
30H |
| F150/4 |
Driver seat base prefuse box |
16L |
| F150/4 |
Driver seat base prefuse box |
4L |
| F150/4 |
Driver seat base prefuse box |
55L |
| F150/4 |
Driver seat base prefuse box |
89L |
| F150/4f1 |
Fuse 1 |
15K |
| F150/4f1 |
Fuse 1 |
54K |
| F150/4f11 |
Fuse 11 |
87K |
| F150/4f13 |
Fuse 13 |
2K |
| F150/5 |
Auxiliary battery prefuse box |
80L |
| F150/5f4 |
Fuse 4 |
79K |
| F152 |
Vehicle interior fuse and relay module |
21L |
| F152 |
Vehicle interior fuse and relay module |
69L |
| F152f30t |
Electrical fuse 30t |
19K |
| F152f34 |
Fuse 34 |
67K |
| F55/2 |
Fuse block 2 (9-pin) |
26L |
| F55/2f18 |
Fuse 18 |
24K |
| F55/3 |
Fuse block 3 (9-pin) |
32L |
| F55/3 |
Fuse block 3 (9-pin) |
41L |
| F55/3 |
Fuse block 3 (9-pin) |
50L |
| F55/3f21 |
Fuse 21 |
39K |
| F55/3f22 |
Fuse 22 |
39K |
| F55/3f27 |
Fuse 27 |
39K |
| F55/5 |
Fuse block 5 (9-pin) |
35L |
| F55/5 |
Fuse block 5 (9-pin) |
64L |
| F55/6 |
Fuse block 6 (9-pin) |
36L |
| F59/1 |
Left windshield heater fuse |
11L |
| F59/2 |
Right windshield heater fuse |
13L |
| K100 |
Driver seat base relay holder |
29L |
| K117 |
Interior lights relay |
68A |
| K117 |
Interior lights relay |
76A |
| K127/1 |
Rear sockets relay |
60A |

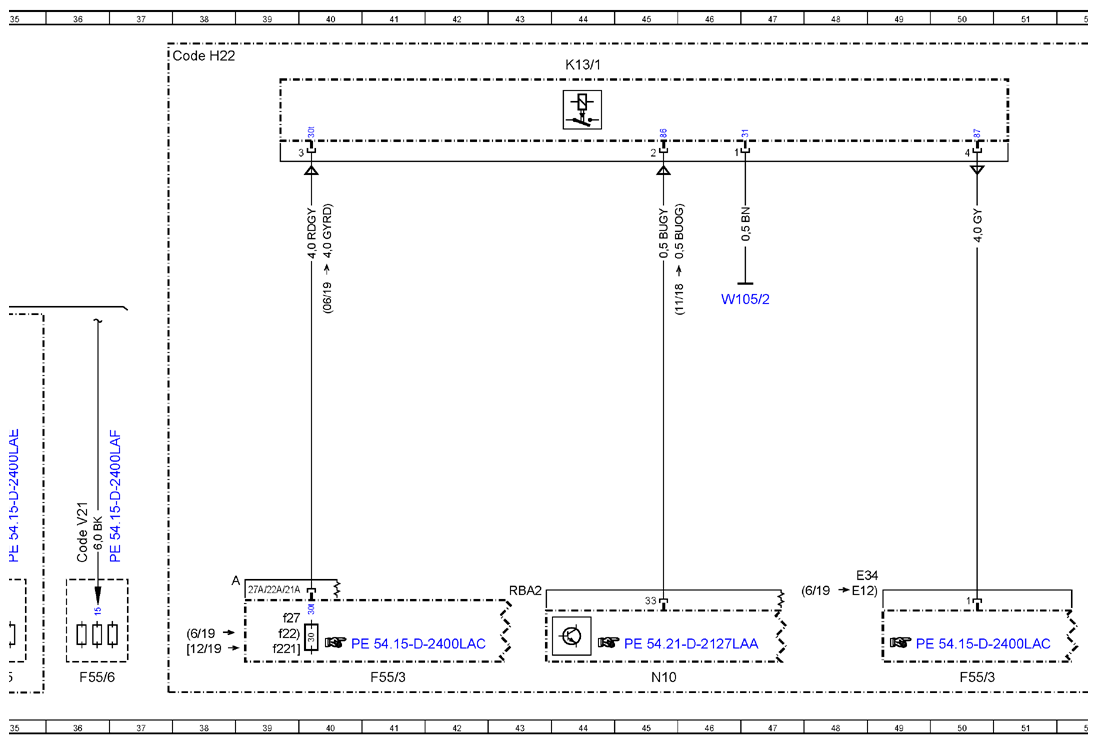

| K13/1 |
Heated rear window relay |
44A |

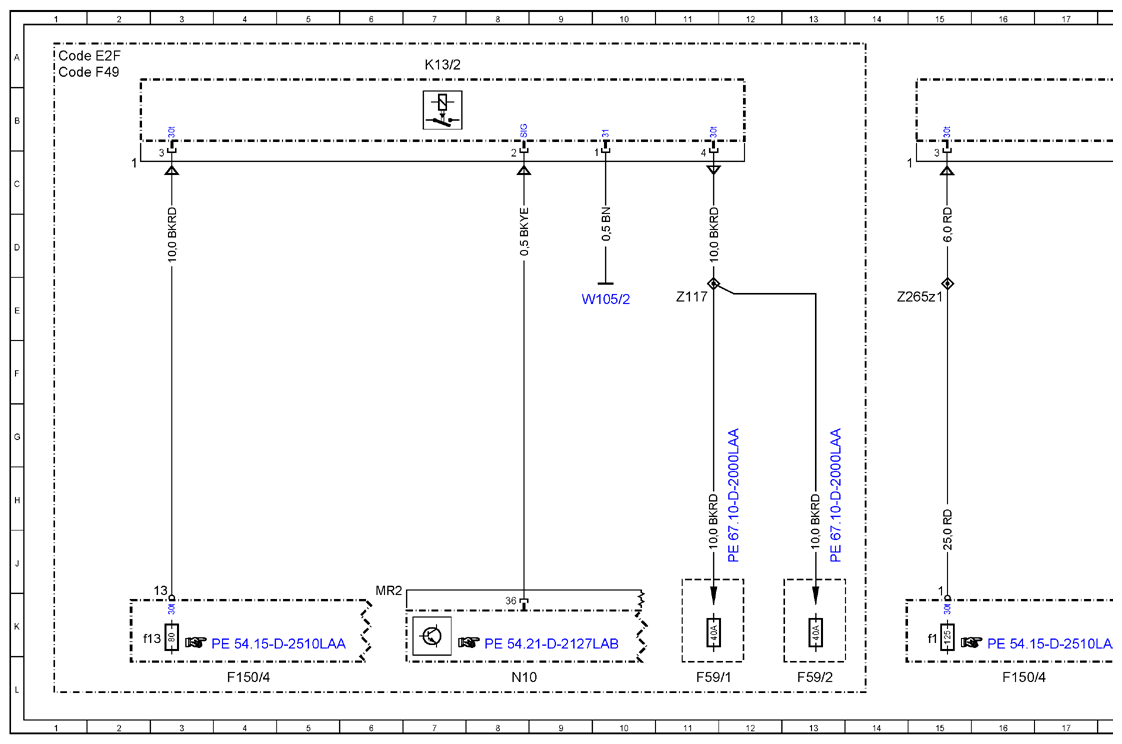

| K13/2 |
Heated windshield relay |
7A |

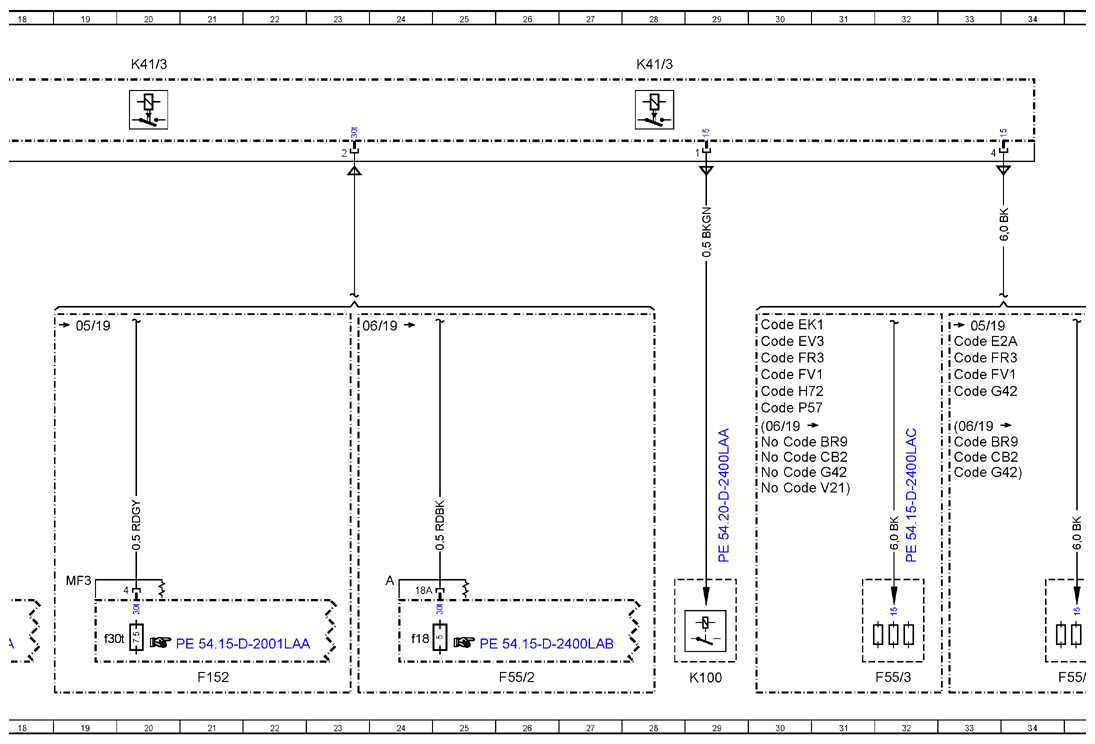

| K41/3 |
Circuit 15 relay |
20A |
| K41/3 |
Circuit 15 relay |
28A |
| K57/2 |
Additional battery relay |
85A |
| N10 |
SAM control unit |
8L |
| N10 |
SAM control unit |
45L |
| N10 |
SAM control unit |
60L |
| N10 |
SAM control unit |
84L |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
73L |
| Wl05/1 |
Driver seat frame ground point 1 |
85E |
| W105/2 |
Driver seat frame ground point 2 |
10E |
| W105/2 |
Driver seat frame ground point 2 |
46E |
| W105/2 |
Driver seat frame ground point 2 |
61E |
| W105/2 |
Driver seat frame ground point 2 |
74E |
| W105/3 |
Driver seat frame ground point 3 |
76F |
| X145/4 |
Interior lighting body manufacturer electrical connector |
76L |
| Z117 |
Heated windshield connector sleeve |
11E |
| Z265z1 |
Terminal 30t connector sleeve |
15E |
| Z265z1 |
Terminal 30t connector sleeve |
54E |
