| AO |
Color code key |
96L |

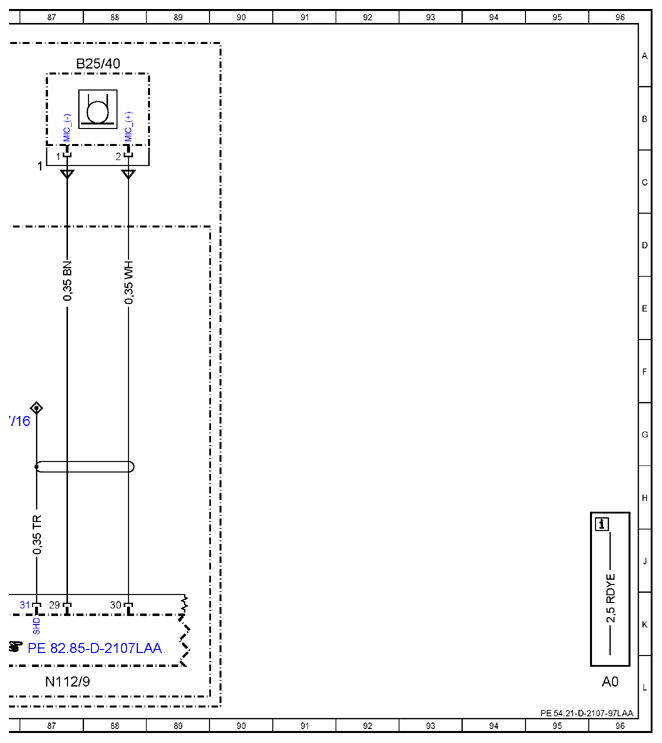

| B25/40 |
Emergency cal I system microphone |
88A |
| B38/2 |
Rain/light sensor |
15L |
| B38/2 |
Rain/light sensor |
49L |
| Code EY5 |
Mercedes-Benz emergency call system |
85D |

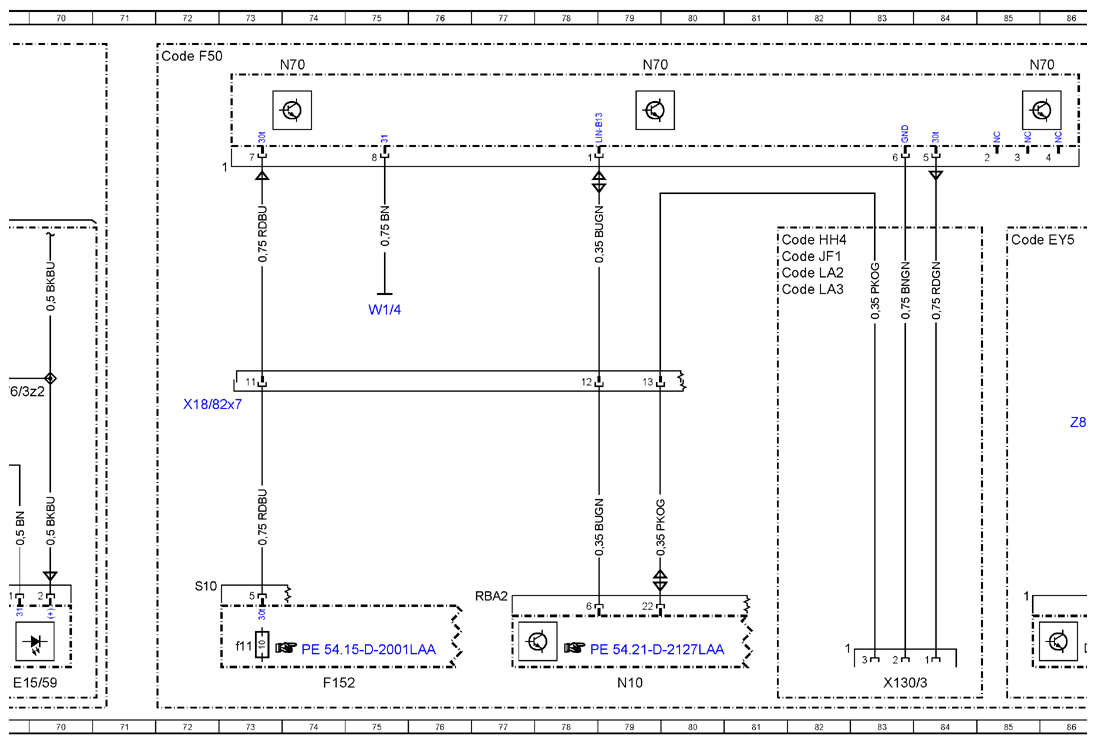

| Code F50 |
Base |
72A |
| Code H08 |
Uprated roof air conditioner |
23D |
| Code H08 |
Uprated roof air conditioner |
31D |
| Code HH4 |
THERMOTRONIC automatic air conditioning |
12D |
| Code HH4 |
THERMOTRONIC automatic air conditioning |
46D |
| Code HH4 |
THERMOTRONIC automatic air conditioning |
81D |
| Code HH7 |
Standard roof air conditioner |
23E |
| Code HH7 |
Standard roof air conditioner |
31E |
| Code HK4 |
Rear air conditioning system, uprated |
23E |
| Code HK4 |
Rear air conditioning system, uprated |
31E |
| Code JF1 |
Rain sensor |
12D |
| Code JF1 |
Rain sensor |
46D |
| Code JF1 |
Rain sensor |
81D |
| Code L71 |
Cargo area illumination via motion detector |
27D |
| Code L71 |
Cargo area illumination via motion detector |
31E |

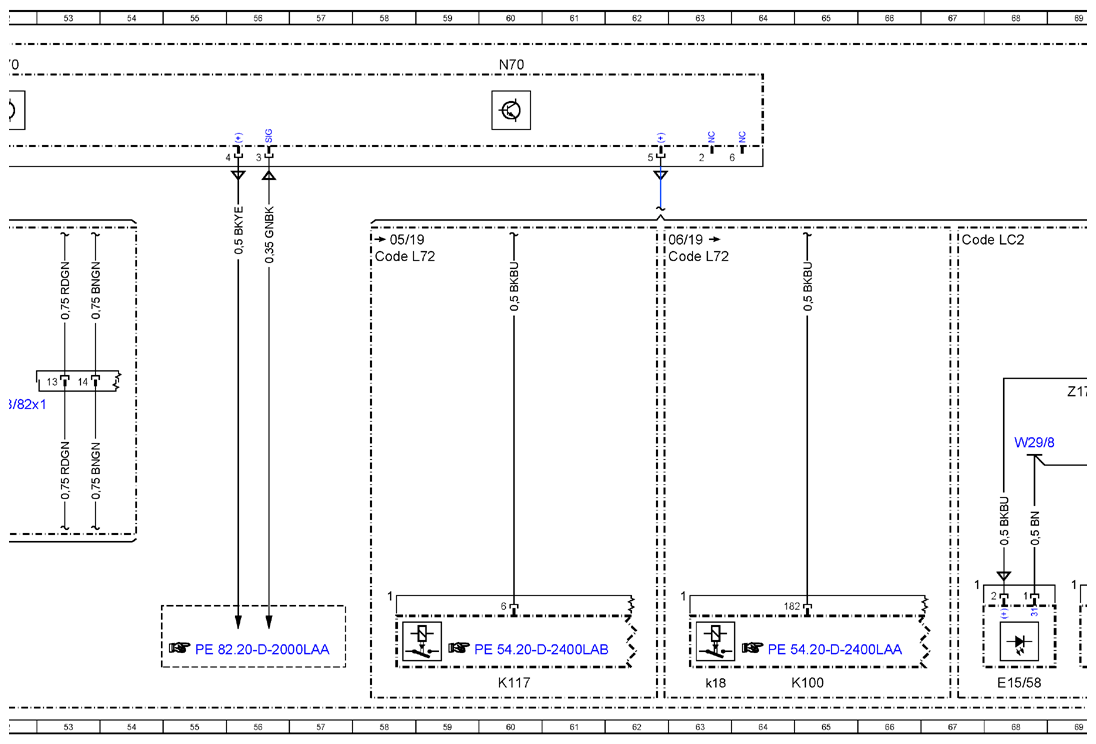

| Code L72 |
Electrical system for other make body |
58D |
| Code L72 |
Electrical system for other make body |
62D |
| Code LA2 |
Driving lights assistant |
12E |
| Code LA2 |
Driving lights assistant |
46E |
| Code LA2 |
Driving lights assistant |
81E |
| Code LA3 |
Headlamp Assist for roof overhangs |
15D |
| Code LA3 |
Headlamp Assist for roof overhangs |
49D |
| Code LA3 |
Headlamp Assist for roof overhangs |
81E |
| Code LB9 |
Illuminated exits |
31E |
| Code LB9 |
Illurninated exits |
27E |
| Code LC2 |
LED light strip in load compartment |
67D |
| Code LC2 |
LED light strip in load compartment |
2A |
| Code LC2 |
LED light strip in load compartment |
36A |

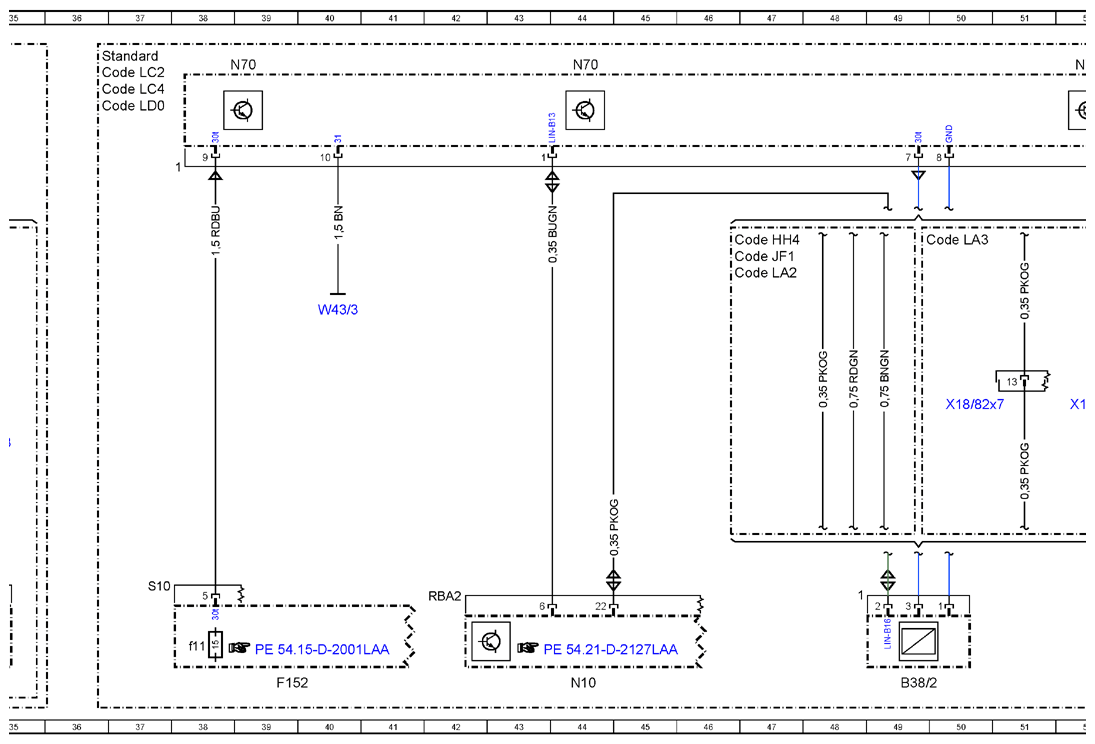

| Code LC4 |
Comfort overhead control panel |
2B |
| Code LC4 |
Comfort overhead control panel |
36B |
| Code LDO |
Overhead control panel with two reading lamps |
2B |
| Code LDO |
Overhead control panel with two reading lamps |
36B |
| Code V36 |
Headliner |
23E |
| Code V36 |
Headliner |
31F |

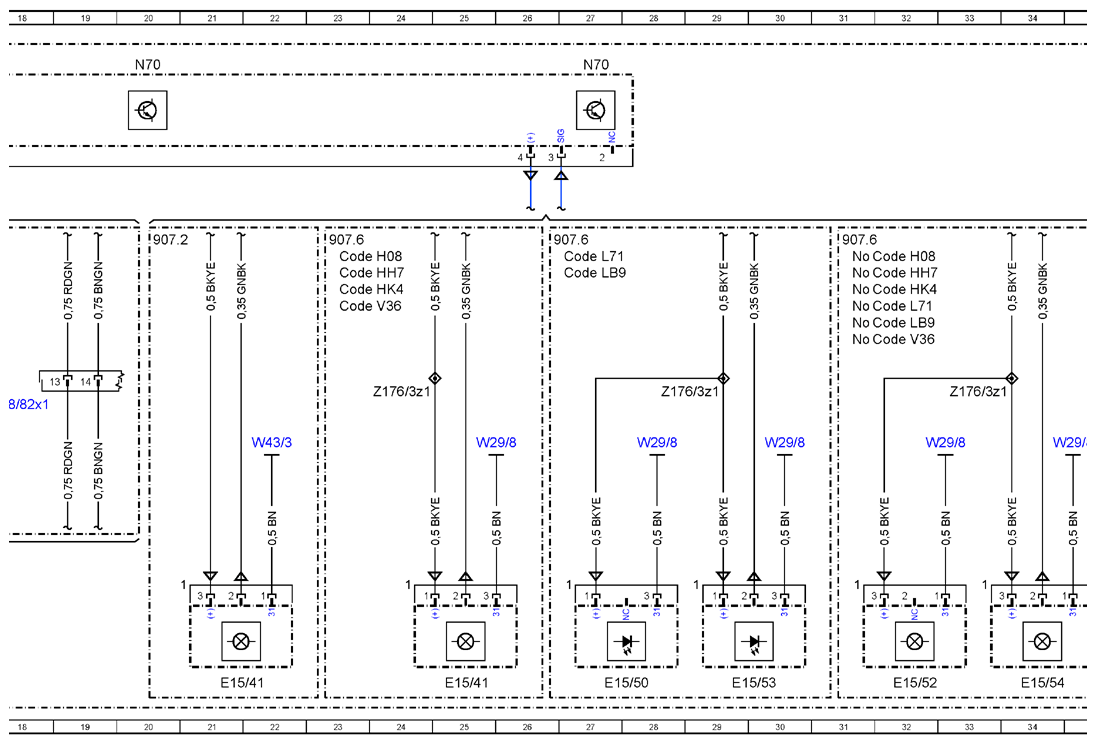

| E15/41 |
Rear dome lamp 1 |
21L |
| E15/41 |
Rear dome lamp 1 |
25L |
| E15/50 |
LED load compartment lamp 1, right |
27L |
| E15/52 |
Right load compartment lamp |
32L |
| E15/53 |
LED load compartment lamp, rear |
29L |
| E15/54 |
Rear load compartment lamp |
34L |
| E15/58 |
LED light strip 1 |
68L |
| E15/59 |
LED light strip 2 |
69L |
| F152 |
Vehicle interior fuse and relay module |
5L |
| F152 |
Vehicle interior fuse and relay module |
39L |
| F152 |
Vehicle interior fuse and relay module |
74L |
| F152f11 |
Fuse 11 |
4K |
| F152f11 |
Fuse 11 |
38K |
| F152f11 |
Fuse 11 |
73K |
| K100 |
Driver seat base relay holder |
65L |
| K100k18 |
Roof ventilator relay |
63L |
| K117 |
Interior lights relay |
60L |

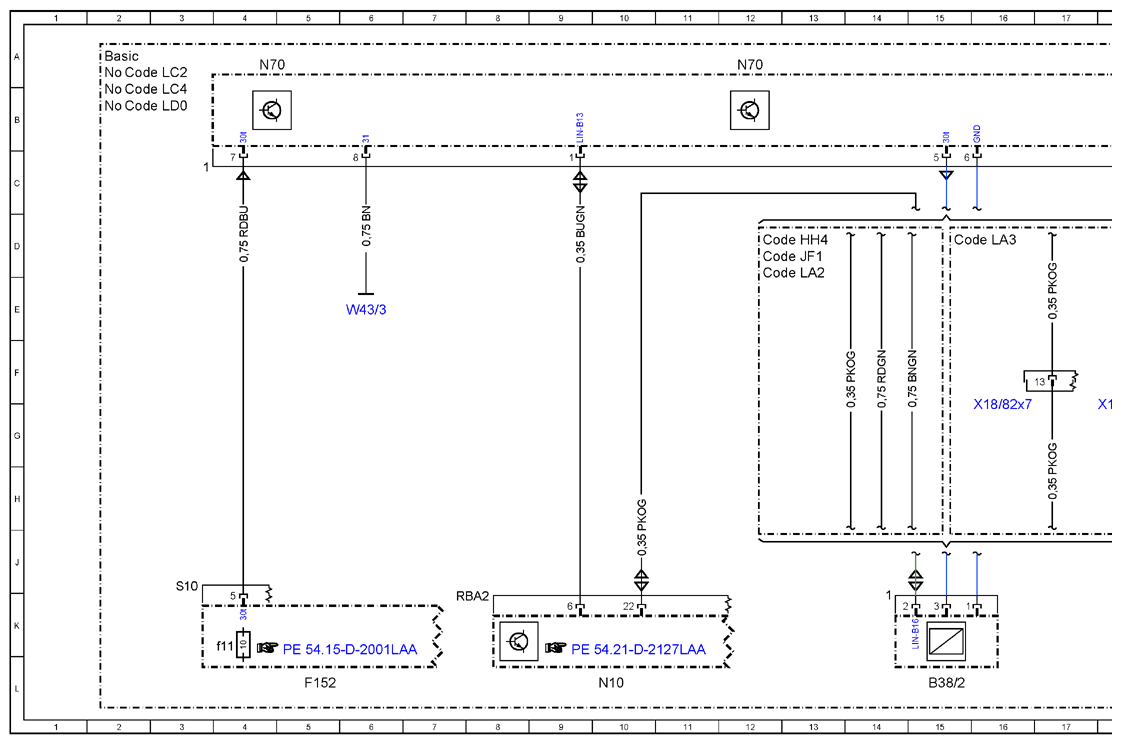

| N10 |
SAM control unit |
10L |
| N10 |
SAM control unit |
44L |
| N10 |
SAM control unit |
79L |
| N112/9 |
HERMES control unit |
87L |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
4A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
12A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
27A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
39A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
74A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
79A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
85A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
20A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
44A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
52A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
60A |
| W1/4 |
HLS cockpit ground point |
75E |
| W29/8 |
Left D-pillar ground point |
32G |
| W29/8 |
Left D-pillar ground point |
35G |
| W29/8 |
Left D-pillar ground point |
28G |
| W29/8 |
Left D-pillar ground point |
30G |
| W29/8 |
Left D-pillar ground point |
68G |
| W29/8 |
Left D-pillar ground point |
25G |
| W43/3 |
Left firewall ground point |
6E |
| W43/3 |
Left firewall ground point |
40E |
| W43/3 |
Left firewall ground point |
22G |
| X130/3 |
Rain/light sensor pre-installation electrical connector |
83L |
| X18/82x1 |
Right cockpit/MWH electrical connector 1 |
18G |
| X18/82x1 |
Right cockpit/MWH electrical connector 1 |
52G |
| X18/82x7 |
Right cockpit/MWH electrical connector 7 |
16G |
| X18/82x7 |
Right cockpit/MWH electrical connector 7 |
50G |
| X18/82x7 |
Right cockpit/MWH electrical connector 7 |
72G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
33F |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
29F |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
24F |
| Z176/3z2 |
Rear passenger compartment interior lighting end sleeve 2 |
69F |
| Z87/16 |
Microphone shielding end sleeve |
86G |
