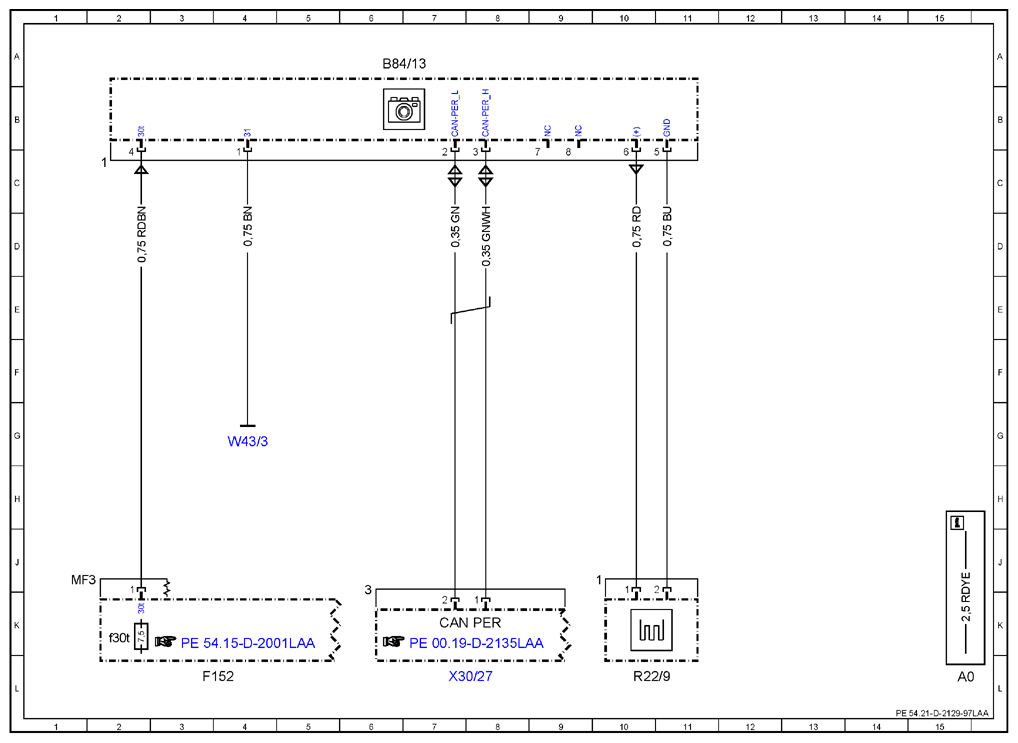

Wiring Diagram For MULTIFUNCTION Camera - Pe54.21-D-2129-97LAA

Code:	Designation:	Position:
AO	Color code key	15L
B84/13	Multifunction camera	6A
CAN PER	Peripherals CAN	7K
F152	Vehicle interior fuse and relay module	3L
F152f30t	Electrical fuse 30t	2K
R22/9	Multifunction camera windshield heater field	10L
W43/3	Left firewall ground point	4G
X30/27	Peripherals CAN (CAN PER) potential distributor electrical connector	7L
