| AO |
Color code key |
208L |
| A67 |
Inside rearview mirror |
139L |
| B84/16 |
Reversing camera inside rearview mirror display |
131L |
| Code BR9 |
Preinstallation for Telma retarder |
182E |
| Code BR9 |
Preinstallation for Telma retarder |
186E |
| Code CB2 |
Air suspension comfort suspension |
182F |
| Code CB2 |
Air suspension comfort suspension |
186F |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
46E |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
66A |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
69E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
54F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
59F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
21F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
156E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
191F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
196F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
54F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
59F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
21F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
156F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
191F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
196F |
| Code E40 |
Trailer socket (7-pin) |
88F |
| Code E40 |
Trailer socket (7-pin) |
170E |
| Code E40 |
Trailer socket (7-pin) |
105F |
| Code E40 |
Trailer socket (7-pin) |
176F |
| Code E46 |
Socket, in cab |
54E |
| Code E46 |
Socket, in cab |
59E |
| Code E46 |
Socket, in cab |
2F |
| Code EK1 |
Terminal strip for electrical connection |
38E |
| Code EK1 |
Terminal strip for electrical connection |
125E |
| Code ES2 |
Trunk/load compartment 12 V socket |
17F |
| Code ES2 |
Trunk/load compartment 12 V socket |
54F |
| Code ES2 |
Trunk/load compartment 12 V socket |
59F |
| Code EV3 |
Pre-installation of electrical scope for cargo liftgate |
30E |
| Code EV3 |
Pre-installation of electrical scope for cargo liftgate |
117E |
| Code F28 |
Base with doors |
9F |
| Code F28 |
Base with doors |
13F |
| Code F50 |
Base |
9F |
| Code F50 |
Base |
13F |
| Code FE9 |
1 DIN slot under cockpit, front passenger side |
9H |
| Code FE9 |
1 DIN slot under cockpit, front passenger side |
13H |
| Code FF8 |
1 DIN slot at front under headliner |
9G |
| Code FF8 |
1 DIN slot at front under headliner |
9G |
| Code FF8 |
1 DIN slot at front under headliner |
13G |
| Code FF8 |
1 DIN slot at front under headliner |
13G |
| Code FF8 |
1 DIN slot at front under headliner |
144F |
| Code FF8 |
1 DIN slot at front under headliner |
149F |
| Code FR3 |
Reversing camera inside rearview mirror display |
69E |
| Code FR3 |
Reversing camera inside rearview mirror display |
71E |
| Code FR3 |
Reversing camera inside rearview mirror display |
129E |
| Code FR3 |
Reversing camera inside rearview mirror display |
137E |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
69E |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
71E |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
129F |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
133E |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
137F |
| Code G42 |
7G-TRONIC PLUS |
69F |
| Code G42 |
7G-TRONIC PLUS |
71E |
| Code G42 |
7G-TRONIC PLUS |
182F |
| Code G42 |
7G-TRONIC PLUS |
186F |
| Code H11 |
Warm air auxiliary heater |
5F |
| Code H11 |
Warm air auxiliary heater |
141E |
| Code H11 |
Warm air auxiliary heater |
191F |
| Code H11 |
Warm air auxiliary heater |
196F |
| Code MB |
Tachograph controls at front under roof lining |
9H |
| Code H1B |
Tachograph controls at front under roof lining |
13H |
| Code H1B |
Tachograph controls at front under roof lining |
144F |
| Code H1B |
Tachograph controls at front under roof lining |
149F |
| Code H22 |
Heated rear window |
26E |
| Code H22 |
Heated rear window |
50E |
| Code H22 |
Heated rear window |
66A |
| Code H22 |
Heated rear window |
84E |
| Code H22 |
Heated rear window |
75E |
| Code H22 |
Heated rear window |
101F |
| Code H22 |
Heated rear window |
170F |
| Code H22 |
Heated rear window |
161E |
| Code H22 |
Heated rear window |
92F |
| Code H72 |
Electric roof ventilator II |
42E |
| Code H72 |
Electric roof ventilator II |
121E |
| Code JA3 |
Intelligent body control |
191E |
| Code JA3 |
Intelligent body control |
196F |
| Code JA3 |
Intelligent body control |
165F |
| Code JA3 |
Intelligent body control |
171F |
| Code JA3 |
Intelligent body control |
79F |
| Code JA3 |
Intelligent body control |
96F |
| Code JA3 |
Intelligent body control |
176F |
| Code P57 |
Preinstallation for three-way dump truck |
34E |
| Code P57 |
Preinstallation for three-way dump truck |
109E |
| Code PA7 |
|
129F |
| Code PA7 |
|
137F |
| Code V21 |
Luxury interior trim |
69F |
| Code V21 |
Luxury interior trim |
71F |
| Code V21 |
Luxury interior trim |
182F |
| Code V21 |
Luxury interior trim |
186F |
| F150/4 |
Driver seat base prefuse box |
65L |
| F150/4 |
Driver seat base prefuse box |
173L |
| F150/4 |
Driver seat base prefuse box |
179L |
| F150/4f1 |
Fuse 1 |
64K |
| F150/4f1 |
Fuse 1 |
172K |
| F150/4f1 |
Fuse 1 |
178K |
| F150/5 |
Auxiliary battery prefuse box |
56L |
| F150/5 |
Auxiliary battery prefuse box |
193L |
| F150/5 |
Auxiliary battery prefuse box |
199L |
| F150/5 |
Auxiliary battery prefuse box |
168L |
| F150/5f5 |
Fuse 5 |
55K |
| F150/5f6 |
Fuse 6 |
192K |
| F150/5f6 |
Fuse 6 |
198K |
| F150/5f6 |
Fuse 6 |
167K |

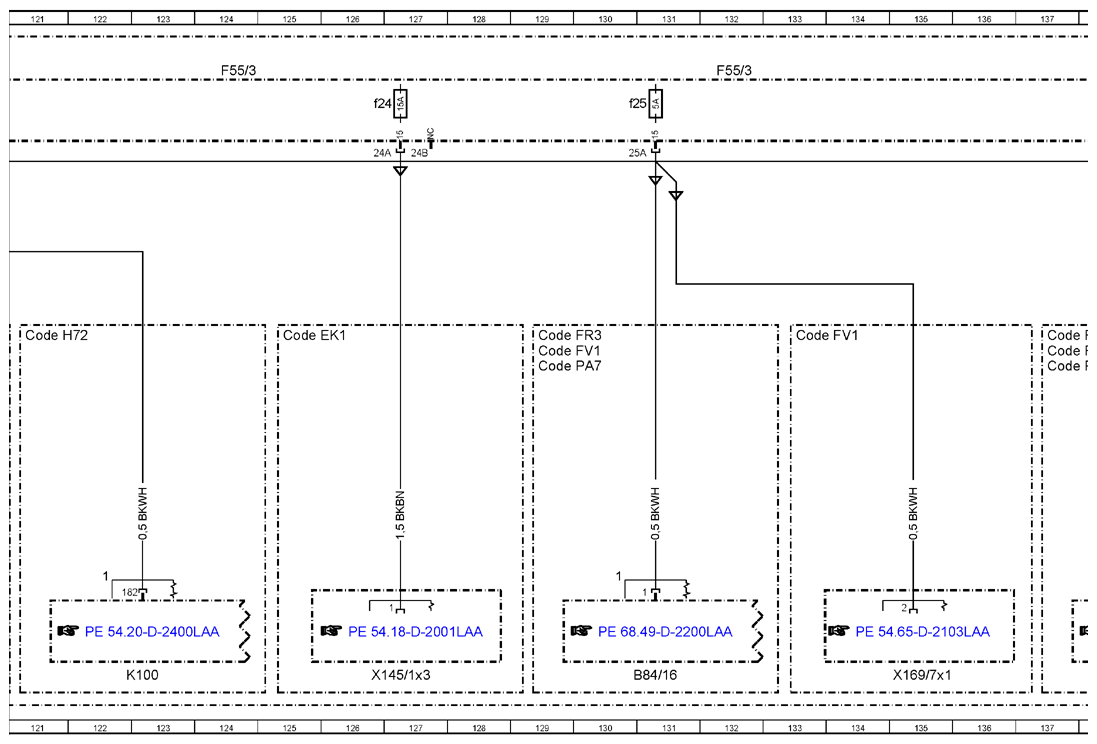

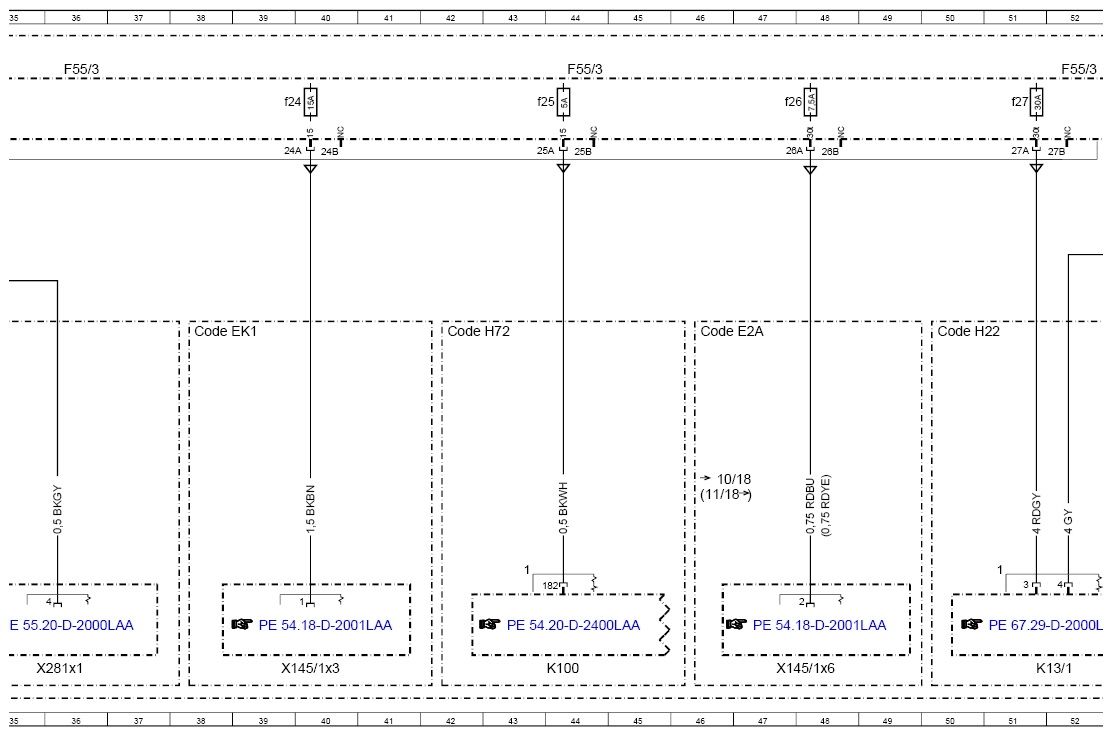

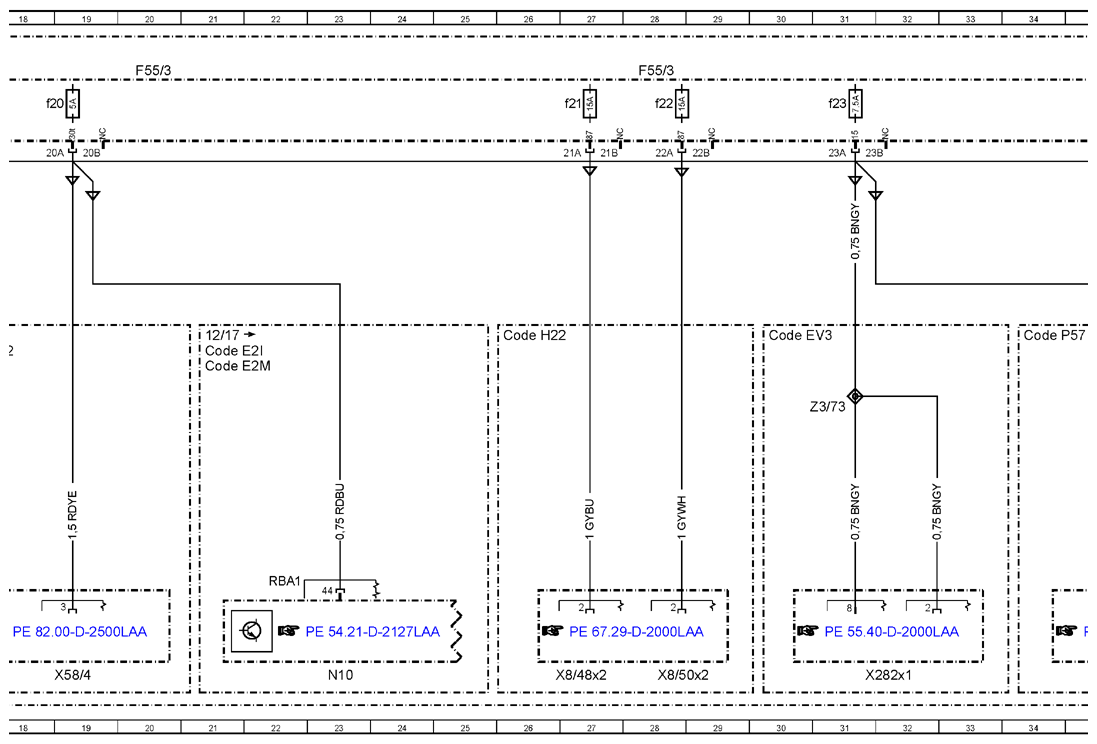

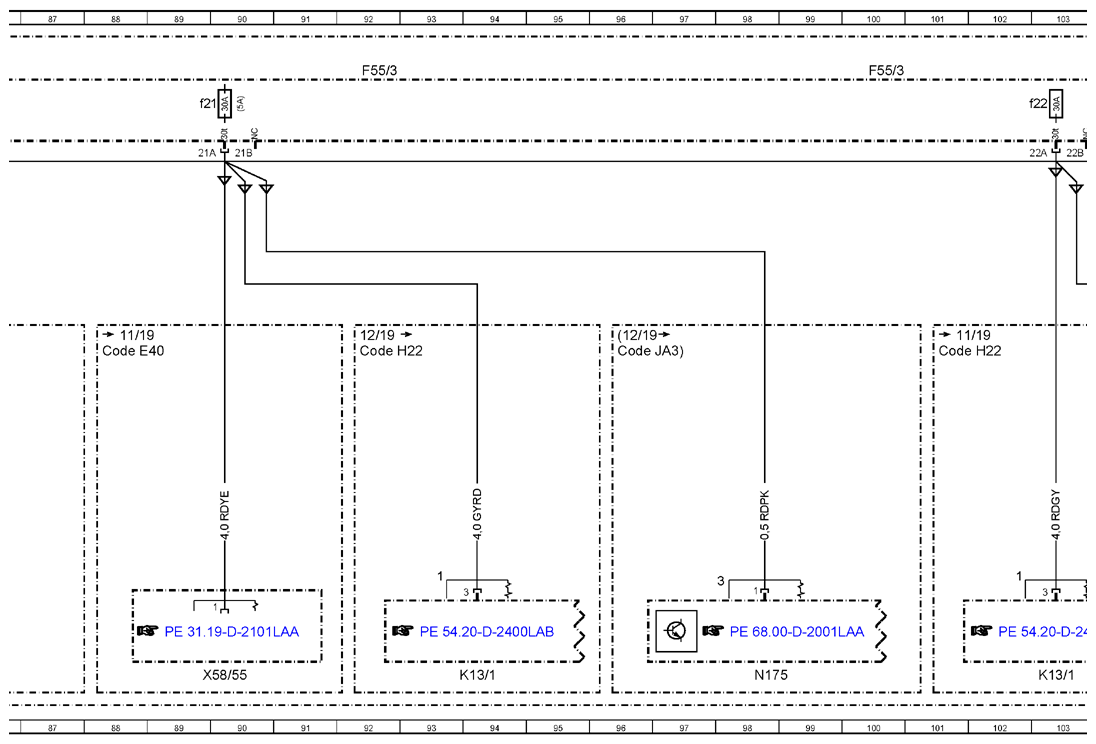

| F55/3 |
Fuse block 3 (9-pin) |
4A |
| F55/3 |
Fuse block 3 (9-pin) |
44A |
| F55/3 |
Fuse block 3 (9-pin) |
68A |
| F55/3 |
Fuse block 3 (9-pin) |
12A |
| F55/3 |
Fuse block 3 (9-pin) |
20A |
| F55/3 |
Fuse block 3 (9-pin) |
28A |
| F55/3 |
Fuse block 3 (9-pin) |
36A |
| F55/3 |
Fuse block 3 (9-pin) |
52A |
| F55/3 |
Fuse block 3 (9-pin) |
60A |
| F55/3 |
Fuse block 3 (9-pin) |
76A |
| F55/3 |
Fuse block 3 (9-pin) |
84A |
| F55/3 |
Fuse block 3 (9-pin) |
188A |
| F55/3 |
Fuse block 3 (9-pin) |
92A |
| F55/3 |
Fuse block 3 (9-pin) |
100A |
| F55/3 |
Fuse block 3 (9-pin) |
108A |
| F55/3 |
Fuse block 3 (9-pin) |
116A |
| F55/3 |
Fuse block 3 (9-pin) |
124A |
| F55/3 |
Fuse block 3 (9-pin) |
132A |
| F55/3 |
Fuse block 3 (9-pin) |
140A |
| F55/3 |
Fuse block 3 (9-pin) |
148A |
| F55/3 |
Fuse block 3 (9-pin) |
156A |
| F55/3 |
Fuse block 3 (9-pin) |
164A |
| F55/3 |
Fuse block 3 (9-pin) |
172A |
| F55/3 |
Fuse block 3 (9-pin) |
180A |
| F55/3f19 |
Fuse 19 |
3B |
| F55/3f19 |
Fuse 19 |
76B |
| F55/3f20 |
Fuse 20 |
18B |
| F55/3f20 |
Fuse 20 |
85B |
| F55/3f21 |
Fuse 21 |
27B |
| F55/3f21 |
Fuse 21 |
89B |
| F55/3f22 |
Fuse 22 |
28B |
| F55/3f22 |
Fuse 22 |
103B |
| F55/3f23 |
Fuse 23 |
31B |
| F55/3f23 |
Fuse 23 |
112B |
| F55/3f24 |
Fuse 24 |
39B |
| F55/3f24 |
Fuse 24 |
126B |
| F55/3f25 |
Fuse 25 |
43B |
| F55/3f25 |
Fuse 25 |
130B |
| F55/3f26 |
Fuse 26 |
47B |
| F55/3f26 |
Fuse 26 |
143B |
| F55/3f27 |
Fuse 27 |
51B |
| F55/3f27 |
Fuse 27 |
158B |
| K100 |
Driver seat base relay holder |
44L |
| K100 |
Driver seat base relay holder |
154L |
| K100 |
Driver seat base relay holder |
123L |
| K127/1 |
Rear sockets relay |
61L |
| K13/1 |
Heated rear window relay |
51L |
| K13/1 |
Heated rear window relay |
103L |
| K13/1 |
Heated rear window relay |
163L |
| K13/1 |
Heated rear window relay |
94L |
| K41/3 |
Circuit 15 relay |
69L |
| K41/3 |
Circuit 15 relay |
184L |
| K41/3 |
Circuit 15 relay |
188L |
| N10 |
SAM control unit |
23L |
| N10 |
SAM control unit |
158L |
| N175 |
MB Advanced Control control unit |
81L |
| N175 |
MB Advanced Control control unit |
98L |
| N33/13 |
Hot air stationary heater control unit |
7L |
| N33/13 |
Hot air stationary heater control unit |
143L |
| N34/2 |
Warm air stationary heater switch clock |
14L |
| N34/2 |
Warm air stationary heater switch clock |
150L |
| R1/2 |
Left rear-end door rear window heater |
76L |
| R1/3 |
Right rear-end door rear window heater |
86L |
| S165 |
Dumper vehicle switch |
111L |
| X145/1x3 |
Body manufacturer electrical connector 3 |
39L |
| X145/1x3 |
Body manufacturer electrical connector 3 |
126L |
| X169/7x1 |
Reversing camera electrical connector 1 |
135L |
| X18/82x6 |
Right cockpit/MWH electrical connector 6 |
10G |
| X18/82x6 |
Right cockpit/MWH electrical connector 6 |
146G |
| X281x1 |
Cargo liftgate electrical connector 1 |
35L |
| X281x1 |
Cargo liftgate electrical connector 1 |
118L |
| X282x1 |
Dump truck electrical connector 1 |
31L |
| X282x1 |
Dump truck electrical connector 1 |
114L |
| X58/4 |
Load compartment socket |
19L |
| X58/54 |
Driver seat base 12 V socket |
3L |
| X58/55 |
7-pin trailer socket electrical connector |
90L |
| X58/55 |
7-pin trailer socket electrical connector |
107L |
| X8/48x2 |
Left rear-end door electrical connector 2 |
26L |
| X8/50x2 |
Right rear-end door electrical connector 2 |
28L |
| Z264 |
Tml. 30 connector sleeve |
7G |
| Z264 |
Tml. 30 connector sleeve |
143G |
| Z264z2 |
Tml. 30 connector sleeve |
198F |
| Z264z2 |
Tml. 30 connector sleeve |
166F |
| Z265z1 |
Terminal 30t connector sleeve |
63F |
| Z265z1 |
Terminal 30t connector sleeve |
172H |
| Z265z1 |
Terminal 30t connector sleeve |
178H |
| Z3/73 |
Terminal 15 end sleeve (dump truck) |
31G |
| Z3/73 |
Terminal 15 end sleeve (dump truck) |
112G |
| Z50/5 |
Tml. 15 connector sleeve |
72G |

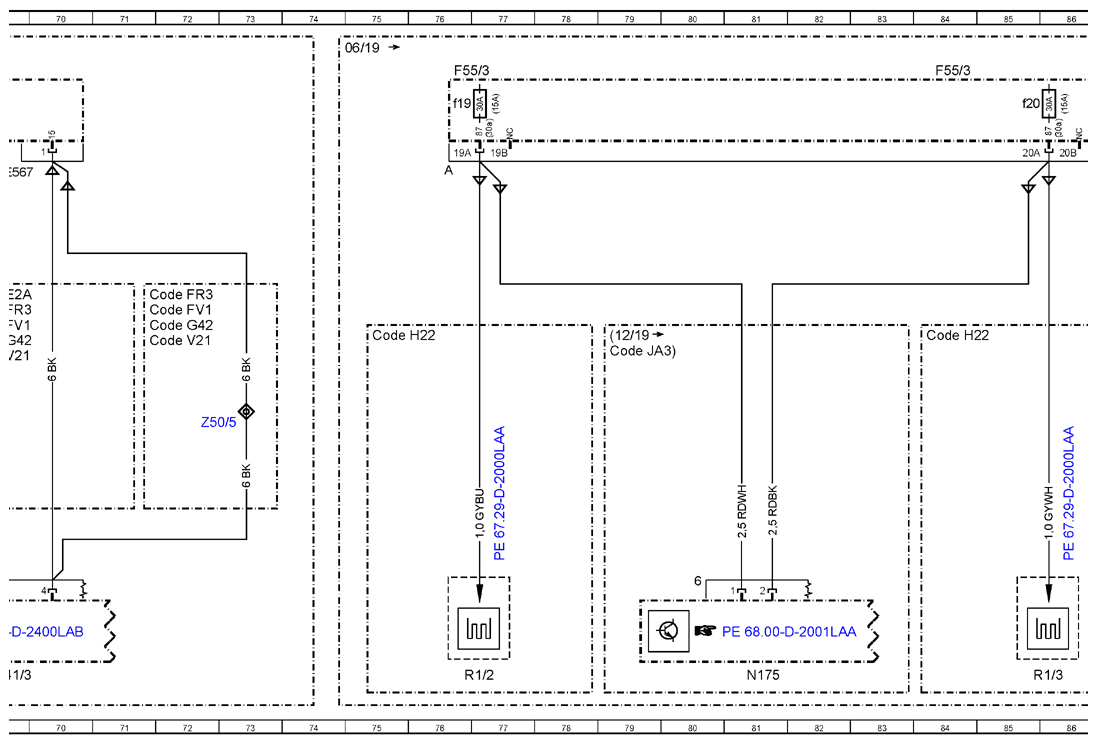

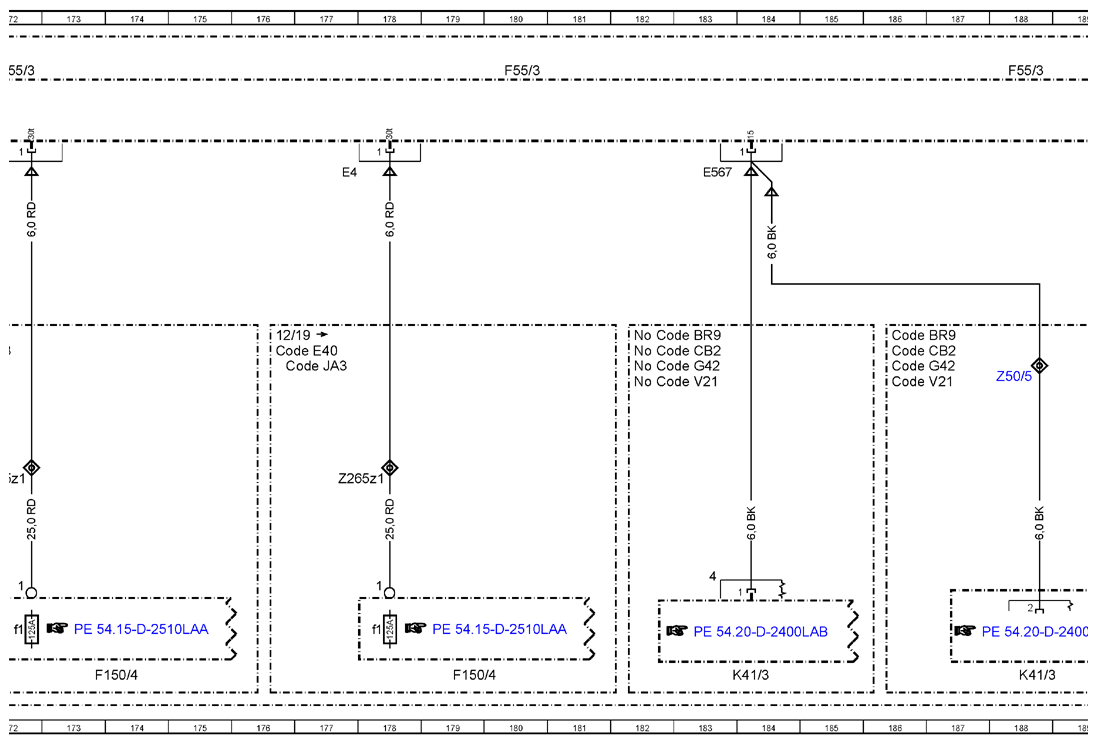

| Z50/5 |
Tml. 15 connector sleeve |
188F |
