Remove Contacts From Micro Contact Connector - Ar00.19-P-0100-13A

Model all (4xWD, CAR, Light transporter, smart)

Fig 1: NanoMQS Release Tool (220 589 04 99 37)

Fig 2: NanoMQS Release Tool (220 589 04 99 38)

Pigtails can be used as repair materials when replacing damaged NanoMQS contacts. Crimping is not permitted for NanoMQS contacts.

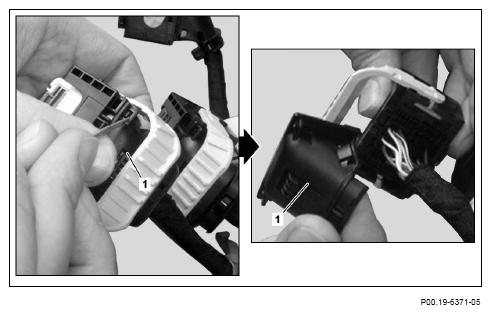

1. Loosen locks on cap (1) using a suitable tool and remove cap (1).

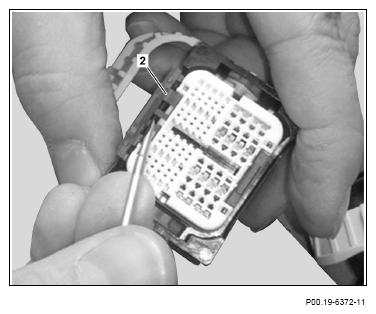

2. Loosen secondary lock (2) using suitable tool.

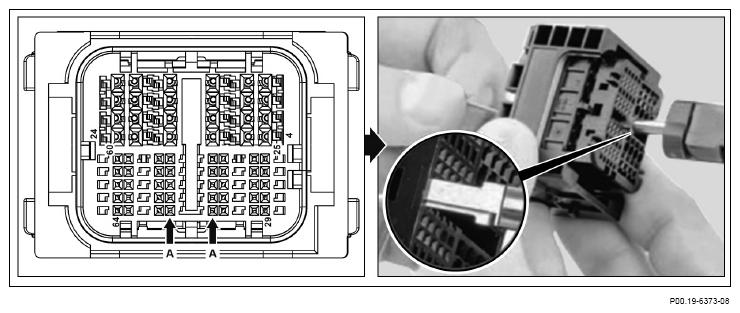

3. Release contact with NanoMQS release tool and carefully remove from the contact housing at the corresponding electrical line.

   When spinning out contacts 40...49 (arrow A).

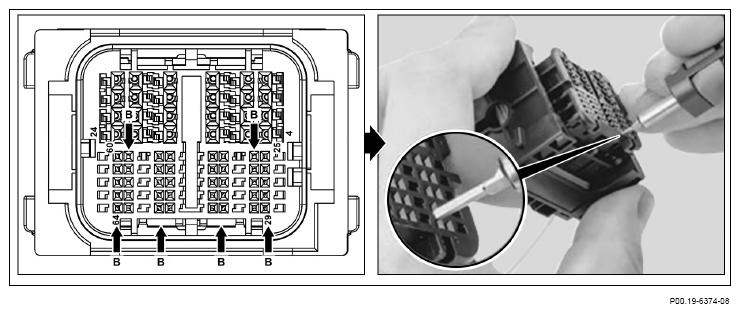

4. Release contact with NanoMQS release tool and carefully remove from the contact housing at the corresponding electrical line.

   When spinning out contacts 25...39 or 50...64 (arrow B).
