Reset ASSYST Maintenance Computer - AP00.20-D-0040TS

Model 907

with code C6L (Multifunction steering wheel)

	Reset
1	Close hood, doors and sliding doors.
2	Switch electronic ignition lock control unit (EZS) to position "1" (circuit 15R).

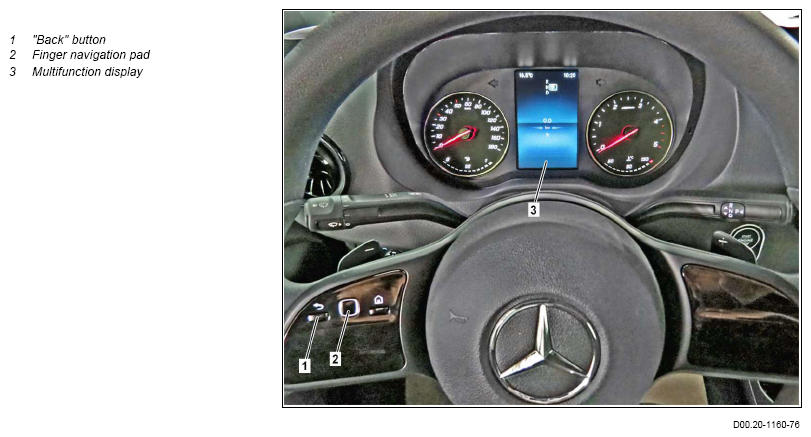

3	Using swipe movements on the finger navigation pad (2) to select the "Total distance" standard display in the multifunction display (3).
4	Press and hold "Back" (1) button for 2 s and press on finger navigation pad (2).	The multifunction display (3) then shows the Workshop menu with the menu items: "Vehicle data", "Dynamometer test", "Change brakepad", "ASSYST PLUS".
5	Use swipe movements on the finger navigation pad (2) to select and confirm the "ASSYST PLUS" menu item.	The multifunction display (3) then shows the menu items: "Service data", "Full service", "Vehicle handover" (if not yet conducted), "Engine oil level measurement".
6	Use swipe movements on the finger navigation pad (2) to select and confirm the "Full service" menu item.	The service items and the "Confirm service" menu item are shown on the multifunction display (3).
7	Use swipe movements on the finger navigation pad (2) to select and confirm the "Confirm service" menu item.	The oil selection is shown on the multifunction display (3).
8	Use swipe movements on the finger navigation pad (2), to select and confirm the specified oil quality.
	Service Information: Starting distance/oil change interval	With code JI5 (Starting distance, maintenance interval 30,000 km) or with code JI6 (Starting distance, maintenance interval 40,000 km) or with code JI7 (Starting distance, maintenance interval 60,000 km)	SI00.20-D-0053SG
		The chosen oil quality, "Service performed?" and the menu items "No", "yes" are shown on the multifunction display (3).
9	Use swipe movements on the finger navigation pad (2) to select and confirm the "Yes" menu item.	No take-back possible" and the "Confirm" menu item are shown on the multifunction display (3).
10	Use swipe movements on the finger navigation pad (2) to select and confirm the "Confirmation" menu item.	In this way, the ASSYST maintenance computer is reset. "Full service performed" is shown on the multifunction display (3). If the service is not performed or only partly performed after resetting the maintenance computer.
		↓
		Reset the maintenance computer to the default value again.
		Reset service indicator to previous service	AP00.20-D-0044T
11	Press "Back" (1) button repeatedly until the "Total distance" standard display appears in the multifunction display (3).
12	Switch electronic ignition lock (EZS) control unit to position "0".
