Transfer Case - Oil Change - AP28.00-D-2801TSC

Model 907

with code ZG1 (Engageable all-wheel drive)

Model 907

with code ZG3 (Engageable all-wheel drive with gear reduction)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
	Draining
1	Lift vehicle with lifting platform.	Vehicle must be horizontal. Otherwise, the transfer case will not be filled correctly. An incorrect oil filling quantity can lead to a leakage and material damage.	AR00.60-D-1000-04TS
2	Remove underbody paneling.	If installed.	AR61.30-D-1001TS

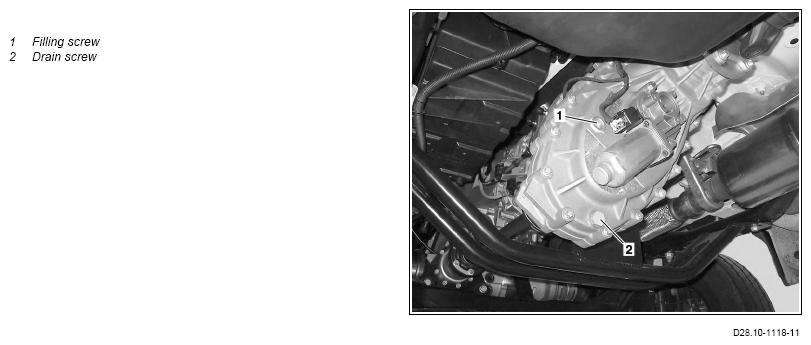

3	Clean area surrounding drain screw (2) and filling screw (1).
4	Remove filling screw (1).
5	Unscrew drain screw (2) and completely drain off transmission oil.	To do so, place a suitable receptacle under the drain screw (2).
6	Replace sealing ring on oil drain screw (2).	Pay attention to correct seat of sealing ring.
7	Screw in drain screw (2).	Drain screw to transmission housing	*BA28.40-N-1001-01E
	Filling
8	Pour in transmission oil until it reaches the lower edge of the filler opening.	Gear oil	*BF28.10-N-1001-01D
9	Screw in filling screw (1).	Filling screw to transmission housing	*BA28.40-N-1002-01E
10	Install underbody paneling.	If this was installed.	AR61.30-D-1001TS
11	Lower vehicle with vehicle lift.
12	Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).
