Power Steering - Check The Oil Level - AP46.00-D-4612TS

Model 907

with code ZG1 (Engageable all-wheel drive)

Model 907

with code ZG3 (Engageable all-wheel drive with gear reduction)

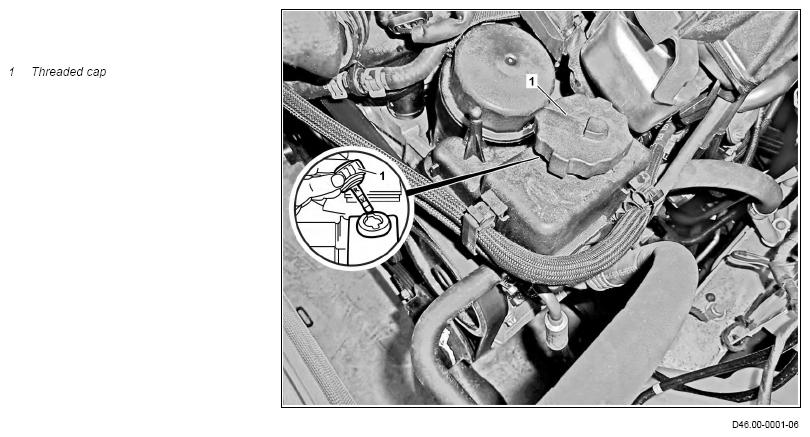

G13787664

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Check
1	Unscrew threaded cap (1) from oil reservoir.	Clean the surrounding area thoroughly before opening the oil reservoir. Even the smallest particles of dirt can lead to malfunctions and damage to hydraulic components.
2	Wipe off oil dipstick using lint-free rag and screw on threaded cap (1).
3	Unscrew threaded cap (1) and read off oil level on oil dipstick.	The oil level must lie between the respective minimum and maximum marking to match the oil temperature. If the oil level is too low, ↓ Correct oil level.
		Steering gear oil	*BF46.00-N-1001-01A
4	Screw on threaded cap (1).

FLUID SPECIFICATION

STEERING

Number	Designation			Model 907 with code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)
BF46.00-N-1001-01A	Steering gear oil	Filling capacity	Liter	≈ 1,0
BF46.00-N-1001-01A	Steering gear oil	Sheet		BB00.40-P-0236-03A
