Seal Connection Fitting Of Fuel Delivery Unit (Code: Vs3KRASTUF, Acc. No.: 09 912 51) - SM47.20-D-0024SG

Engine 642 in model 907

with code ZU8 (National version for USA)

Operation no. of the operation texts or standard texts and flat rates
Category	Op. no.	Operation text	Time	Acc. no.	Code
L	021989	Operations: Seal connection fitting of fuel delivery module		09 912 51	VS3KRASTUF

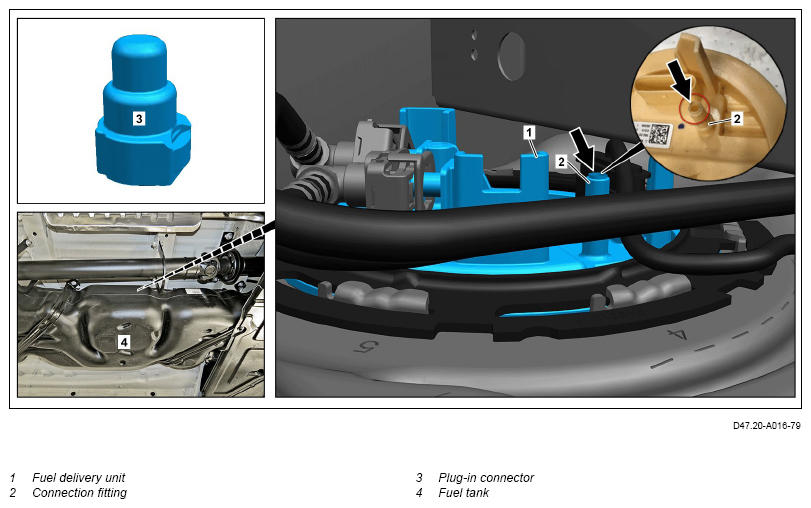

G13787731

	Check
1	Check whether vehicle is affected by measure	EE For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab, is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.
2	Raise vehicle. Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
			AR00.60-D-1000-04TS
	Clean
3	Clean connection fitting (2) of fuel delivery unit (1).	Assembly cleaner	*BR00.45-Z-1028-04A
	Install
4	Seal connection fitting (2).	Attach connector coupling (3) to connection fitting (2). Ensure that connector coupling (3) engages correctly. Connection fitting (2) can also be accessed without lowering the fuel tank. If necessary, use a mirror to help.
	Clean
5	Clean fuel tank (3) from outside.	If fuel has leaked out of connection fitting (2). Assembly cleaner	*BR00.45-Z-1028-04A
6	Lower vehicle.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 005 997 54 89	Plug-in connector	1
