Retrofit Cover On Starter/Alternator Wiring Harness (Code: Vs3ISOKAP, Acc. No.: 15 905 55) - SM15.18-D-0041SG

Model 907.1/2

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
L	02 1084	Operations: Retrofit cover to starter/alternator wiring harness	-	15 905 55	VS3ISOKAP
L	02 3282	Operations: Remove underfloor paneling (when working on veh.)	-	15 905 55	VS3ISOKAP

G13789918

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Check
1	Check if vehicle is affected by measure.	Affected vehicles: Retrofit cover on starter/alternator wiring harness (code: VS3ISOKAP, acc. no.: 15 905 55) Model 907### #N as of 022176 up to 022369 For authorized Mercedes-Benz service partners, only the entry in the Extended VEGA Application (EVA) system, in the "Current" tab, is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.	SM15.18-D-0041-01AAA
	Install
2	Raise vehicle.
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
			AR00.60-D-1000-04TS
3	Remove underfloor paneling at left.	Model 907.1/2 with code XM1 (Noise reduction)
			AR61.30-D-1001-02TS
	Install

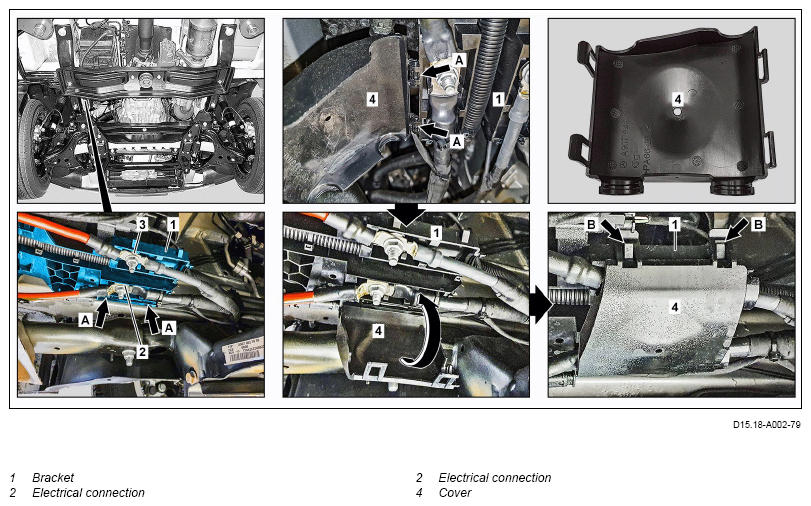

4	Install missing cover (4).	To do so, clip cover (4) into holder (1) (arrows A) and lock (arrows B).
5	Install underfloor paneling at left.	Model 907.1/2 with code XM1 (Noise reduction)
			AR61.30-D-1001-02TS
6	Lower vehicle.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 907 546 35 00	Cover	1
