Remove/Install Front Side Air Vent - Ar83.10-D-4741TS

Model 907

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove

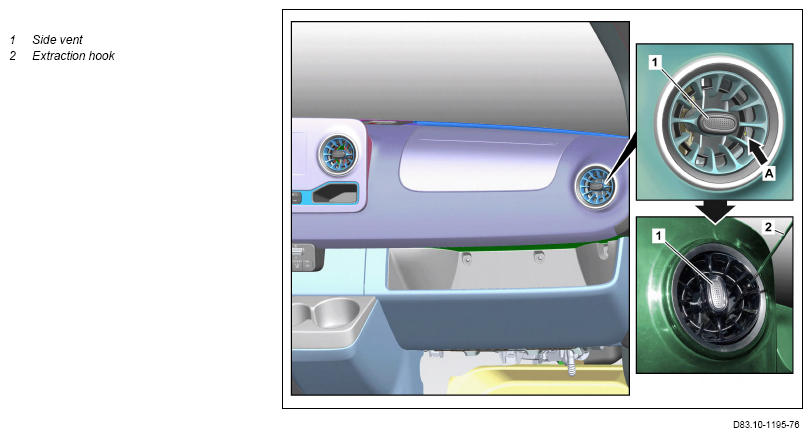

1	Insert extraction hook (2) into opening (arrow A) of side air vent (1).	WIS Service Media  wsm://04_201800_03  Operation steps 1 and 2 are shown. Extraction hook	Fig 1
2	Remove side air vent (1) from instrument panel with extraction hook (2).	Make sure that the retaining clamps remain on the rear of the side air vent (1).
	Install
3	Insert side air vent (1), with the marking "TOP" facing upward, into the instrument panel until it is fully engaged.
	Check
4	Carry out function test of side air vent (1).

Fig 1: Extraction Hook (140 589 02 33 00)
