Inspect Poly-V-Belt For Wear And Damage - AP13.22-D-1351TS
Engine 642.8 in model 907
Engine 651.9 in model 907

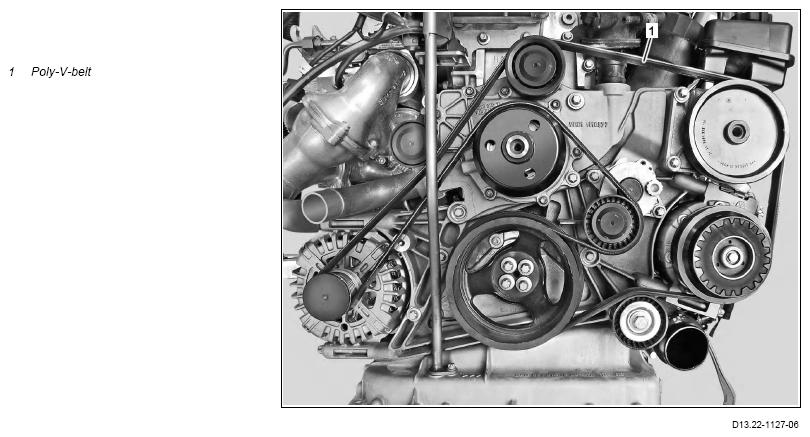

Shown on engine 651.9
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Check respective poly-V belt (1) for wear and damage at visible points and compare with damage profiles. | AP13.22-D-1351-01A | |
If damage or wear is present. ↓ Replace respective poly-V-belt (1). Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB). |
|||
| Remove/install poly-V belt Engine 642.8 |
AR13.22-D-1202TSV | ||
| Remove/install fan poly-V belt Engine 642.8 |
AR13.22-D-1302TSV | ||
| Remove/install poly-V belt Engine 651.9 in model 907 |
AR13.22-D-1202TSR | ||
| Remove/install poly-V belt | AR13.22-D-1202TSF | ||
| Remove/install poly-V belt | AR13.22-D-1202TSM | ||
| Remove/install refrigerant compressor poly-V-belt with code HK4 (Rear air conditioning, reinforced) |
AR13.21-D-0161TSM | ||
