Remove/Install Brake Booster - Ar43.10-D-0350TSR

Model 907

MODIFICATION NOTES

122.07.2019 Work procedure revised The whole document
G13787553

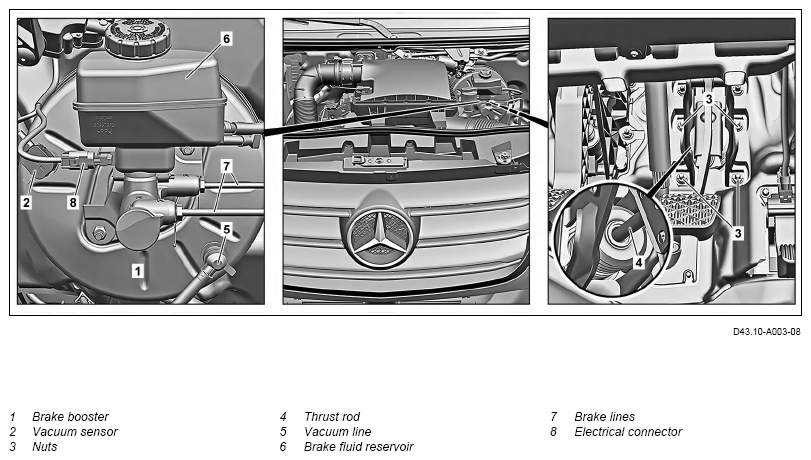

Shown with engine 651 code MJ8 (ECO start/stop function)

CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injuryfrom  skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on externally invisible brake fluid loss   AH42.10-P-9406-02A
  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
  Notes on repairs to brake system   AH42.00-P-0003-01A
  Brake fluid notes   AH42.50-P-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove vacuum in brake booster (1). IMPORTANT TO do this, operate brake pedal several times.
2 Extract brake fluid from brake fluid reservoir (6). IMPORTANT To do so, open (6) brake fluid reservoir.
IMPORTANTCommercially available devices/tools
Extraction bellows

3 Remove brake lines (7) from master brake cylinder and release from hydraulic unit.
Note on calculation of tightening torque when using insertion or socket tools with various effective lengths IMPORTANT Collect escaping brake fluid using suitable rags and seal openings. AH00.00-P-0015-01CW
  TORQUE SPECIFICATION Retaining screw, brake line to hydraulic unit *BA42.10-N-1003-14TS
  TORQUE SPECIFICATION Retaining screw, brake line to master brake cylinder *BA42.10-N-1004-14TS
  SPECIAL TOOL Box wrench bit Fig 1
  SPECIAL TOOL Record plug Fig 2
4 Disconnect electrical connector (8).
5 Remove master brake cylinder. If the brake booster (1) is to be replaced.
IMPORTANT Do not remove brake fluid reservoir (6) from master brake cylinder.
AR42.10-D-0300TS
6 Remove vacuum line (5) from brake booster (1). IMPORTANT Plug openings.
INSTALLATION IMPORTANT : Inspect gasket for damage.
SPECIAL TOOL Record plug
If corresponding findings are present,
Replace seal.
Fig 2
7 Disconnect electrical connector of vacuumsensor (2). Model 907
with code MJ8 (ECO start/stop function)

8 Remove push rod (4) from brake pedal. IMPORTANT Do not remove pedal bracket.
The ball socket cage on the brake pedal must be replaced.
AR29.10-D-4210TS
9 Remove nuts (3). TORQUE SPECIFICATION Nut, brake booster to firewall *BA43.10-N-1001-01TS
10 Remove brake booster (1). INSTALLATION IMPORTANT Installation: Inspect gasket for damage.
If corresponding findings are present,
Replace seal.

11 Remove vacuum sensor (2). Model 907
with code MJ8 (ECO start/stop function)
If the brake booster (1) is to be replaced.
To do so, pull vacuum sensor (2) out of brake booster (1).
Seal off opening.
INSTALLATION IMPORTANT Installation: Inspect gasket for damage.
SPECIAL TOOL Record plug
If corresponding findings are present,
Replace seal.
Fig 2
12 Install in the reverse order.
13 Bleed brake system.   AR42.10-D-0010TS
TORQUE SPECIFICATION BRAKE LINES, BRAKE HOSES

Number Designation Model 907
BA42.10-N-1003-14TS Retaining screw, brake line to hydraulic unit Nm 14
TORQUE SPECIFICATION BRAKE LINES, BRAKE HOSES

Number Designation Model 907
BA42.10-N-1004-14TS Retaining screw, brake line to master brake cylinder Nm 14
TORQUE SPECIFICATION BRAKE BOOSTER

Number Designation Model 907
BA43.10-N-1001-01TS Nut, brake booster to firewall Nm 23
Fig 1: Box Wrench Bit (140 589 00 03 00)
G13787554
Fig 2: Record Plug (129 589 00 91 00)
G13787555
