Remove/Install Speaker On Center Of Instrument Panel - Ar82.62-D-1101TS

Model 907

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install.
1	Remove cover for center speaker'		AR68.30-D-3446TS

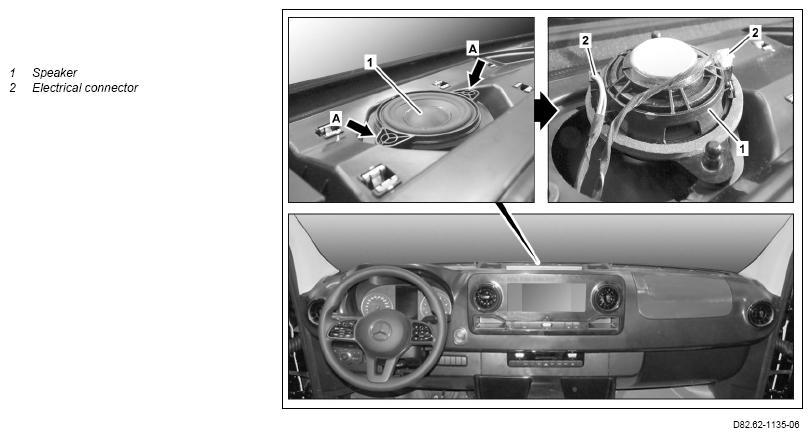

2	Unclip speaker from instrument panel (1) (arrows A) and remove far enough until electrical connectors (2) are accessiblea	Clip remover	Fig 1
3	Disconnect electrical connectors (2) and remove speaker (1)	The number of electrical connections (2) may vary depending on vehicle equipment.
4	Install in the reverse order
	Check
5	Switch on radio and perform function test of radio speaker (1)	Model 907 with code E1C (Audio 25) Model 907 with code EJ2 (Audio 20) Model 907 with code EJ9 (COMAND Online)
6	Run function test on speaker (1)	Model 907 with code EY5 (Mercedes-Benz emergency call system) Press and hold the "End call" button on the steering wheel for a minimum of 5 s. A test tone must be audible after approx. 5 s.

Fig 1: Clip Remover (452 589 01 63 00)
