Remove/Install Steering Column Module - Ar54.25-D-2802TS

Model 907

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Commission steering column tube module (1) using vehicle diagnosis system.	When replacing the steering column tube module (1).	AD00.00-D-2000-06TS
2	Remove steering wheel.		AR46.10-D-0100TS
3	Unclip steering column from steering column tube module (1).		AR68.10-D-1060TS

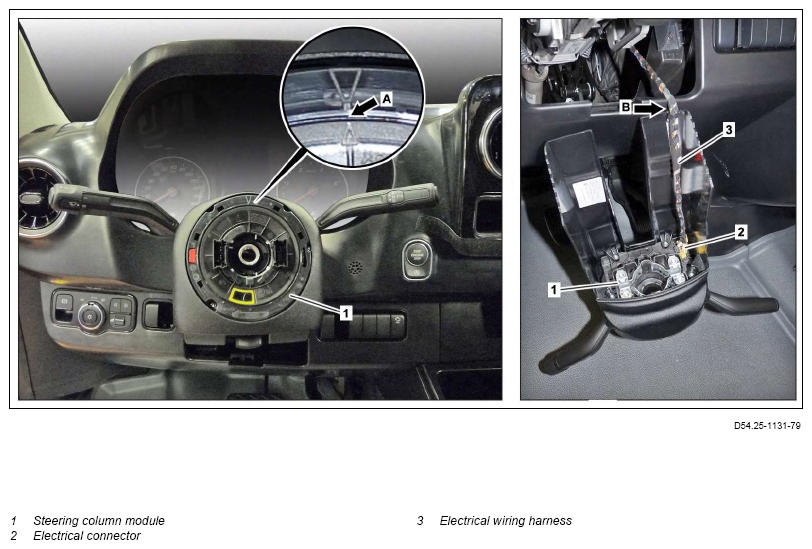

4	Align markings to each other (arrow A).
5	Secure clock spring contact of steering columr tube module (1) against twisting using a suitable tape strip.

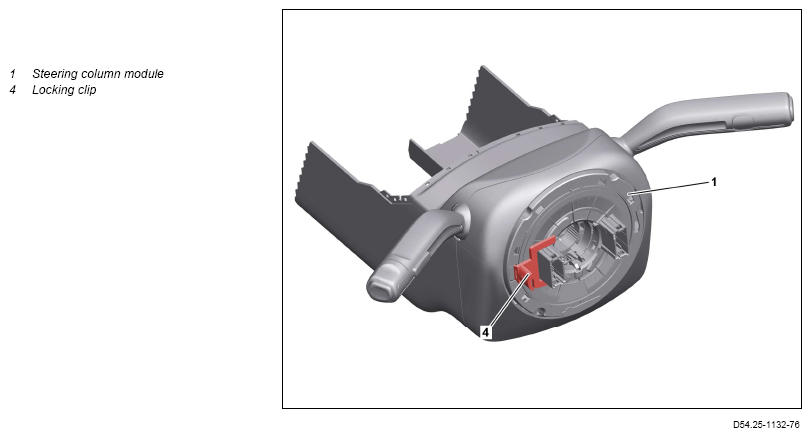

6	Detach steering column tube module (1) rearward from steering column tube until electrical connector (2) is accessible.	: If steering column tube module (1) is replaced, the transport protection (4) must be broken off.
7	Unclip electrical wiring harness (3) at line bracket (arrow B) from trim.	Clip remover	Fig 1
8	Disconnect electrical connection (2).	The locking clip of the electrical connector (2) will be irreparably damaged as a result. : Replace the retaining clip.	AR54.25-D-2802-02TS
		Retaining clip for steering column tube module plug	*BR00.45-Z-1015-12A
9	Remove steering column tube module (1).
10	Install in the reverse order.
	Check
11	Perform function check on all components of steering column tube module (1).

Fig 1: Clip Remover (452 589 01 63 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1015-12A	Retaining clip for steering column tube module plug	A 000 823 02 45
