Remove/Install Upper Center Trim On Instrument Panel - Ar68.10-D-1497TS

Model 907

with code E1O (Entry-level radio)

Model 907

with code ER0 (Radio, pre-wiring)

Model 907

with code FJ6 (Center area with 2-DIN stowage compartments and air vent)

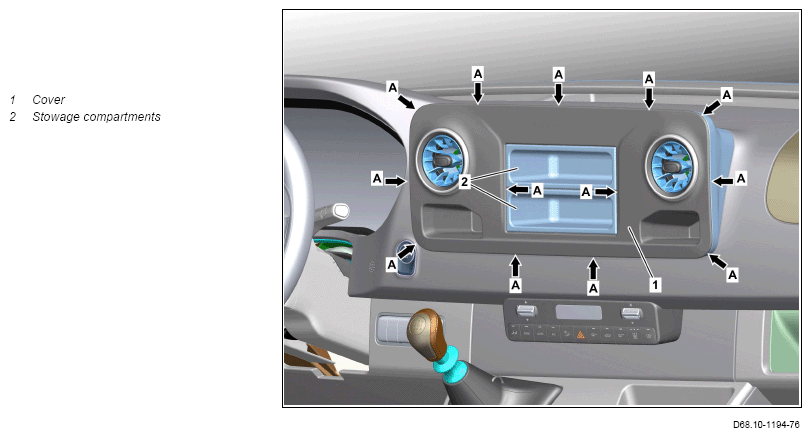

Shown on model 910 with code FJ6 (center area with 2 DIN stowage compartments and air vent)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove stowage compartments (2).	If installed. The number of stowage compartments (2) can vary depending on the vehicle equipment.
2	Unclip trim (1) from instrument panel (arrows A) and remove.	Clip remover	Fig 1
3	Remove center air vents.	When replacing trim (1).	AR83.10-D-4505TS
4	Install in the reverse order.

Fig 1: Clip Remover (452 589 01 63 00)
