Remove/Install Center Side Wall Trim In Passenger Compartment - Ar68.30-D-1211TSR
Model 907.6/7
with code IR6 (Wheelbase 4325 mm, overhang 1615 mm)
Model 907.6/7
with code IR7 (Wheelbase 4325 mm, overhang 2015 mm)
Model 907.843/855
MODIFICATION NOTES
| 07.06.2019 | New operation steps added. | Operation steps 1, 5. |

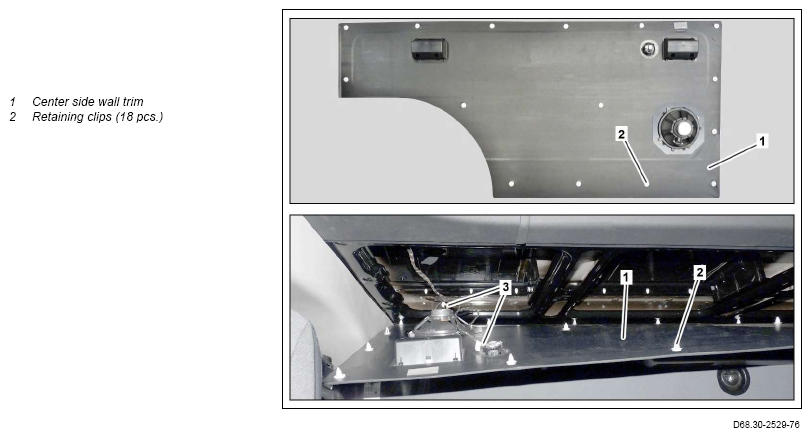

Shown on model 907.7 with code EL9 (front and rear 2-way speaker system) on the center right side wall trim (1)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1.1 | Remove passenger bench seat. | Model 907.843/855 If the center side wall trim (1) is removed to the left. |
|
| AR91.21-A-4425TSL | |||
| 1.2 | Remove passenger seats. | If the center side wall trim (1) is removed to the right. | |
| Model 907.855 with code S16 (Passenger seats, luxury version) |
AR91.21-A-4460TSL | ||
| 2 | Unclip center side wall trim (1) from the retaining clips (2) and remove from the side wall until the electrical connectors are accessible. | ||
Long wedge |
Fig 1 | ||
with code IR6 (Wheelbase 4325 mm, overhang 1615 mm) Pulling hook |
Fig 2 | ||
| 3 | Disconnect electrical connectors and remove center side wall trim (1) from the side wall | ||
| Check | |||
| 4 | Check retaining clips (2). | If the retaining clips (2) are damaged ↓ Replace damaged retaining clips (2). |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Perform function test of all component parts of the center side wall trim (1). |
