Front Axle - Oil Change - AP33.00-D-3301TSC

Model 907

with code ZG1 (Engageable all-wheel drive)

Model 907

with code ZG3 (Engageable all-wheel drive with gear reduction)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Draining
1	Remove lower engine compartment paneling.
			AR61.20-D-1105TS
2	Clean area around the filler screw (1) and drain screw (2).

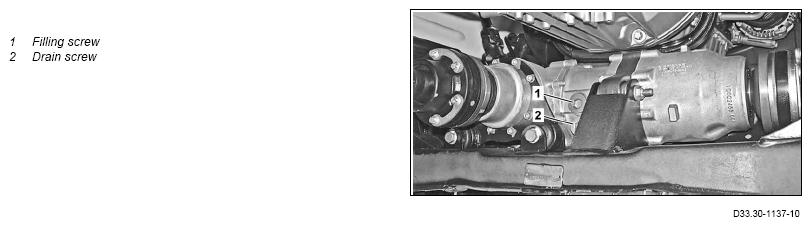

3	Remove filling screw (1).
4	Unscrew drain screw (2) and completely drain off transmission oil.	To do so, place a suitable receptacle under the drain screw (2).
5	Clean drain screw magnet (2).
6	Replace sealing ring of filling screw (1) and sealing ring of drain screw (2).	Check sealing rings are correctly seated.
7	Screw in drain screw (2).	Drain screw	*BA33.30-N-1001-01D
	Filling
8	Pour in transmission oil until it reaches the lower edge of the filler opening.	Hypoid transmission oil	*BF33.30-N-1001-01B
9	Screw in filling screw (1).	Filling screw	*BA33.30-N-1002-01D
10	Install lower engine compartment paneling.
		Mount lower engine compartment paneling only after completion of all maintenance operations.	AR61.20-D-1105TS
11	Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).
