Remove/Install Hand-Operated Parking Brake Lever - Ar42.20-D-0506TS

Model 907

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install

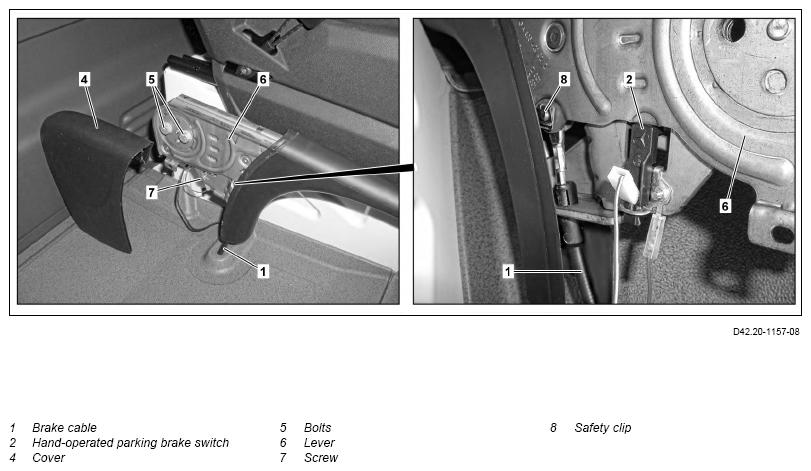

1	Pull off trim (4) of lever (6) from top to bottom, unclip in the center and remove.
2	Remove screw (7) and detach hand-operated parking brake switch (2).	M6	*BA00.10-N-1002-01A
3	Remove screws (5).	Bolt, parking brake lever to seat base	*BA42.20-N-1001-01TS
4	Remove bearing pin from lever (6).	To do this, remove the safety clip (8). Installation  : Check safety clip (8) for damage. Depending on findings, ↓ replace damaged safety clip (8).
5	Detach brake cable (1).	Sleeve	Fig 1
6	Remove lever (6).
7	Install in the reverse order

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			8.8	10.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	9	13
		Phosphated	Nm	9	12

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number	Designation			12.9
BA00.10-N-1002-01A	M6	Galvanized	Nm	16
		Phosphated	Nm	14

PARKING BRAKE

Number	Designation		Model 907
BA42.20-N-1001-01TS	Bolt, parking brake lever to seat base	Nm	62

Fig 1: Sleeve (906 589 00 14 00)
