Remove/Install Brake Shoes Of Parking Brake - Ar42.20-D-0530TS
Model 907
except code B25 (Electric parking brake)
except code IT5 (5.0 tonner)

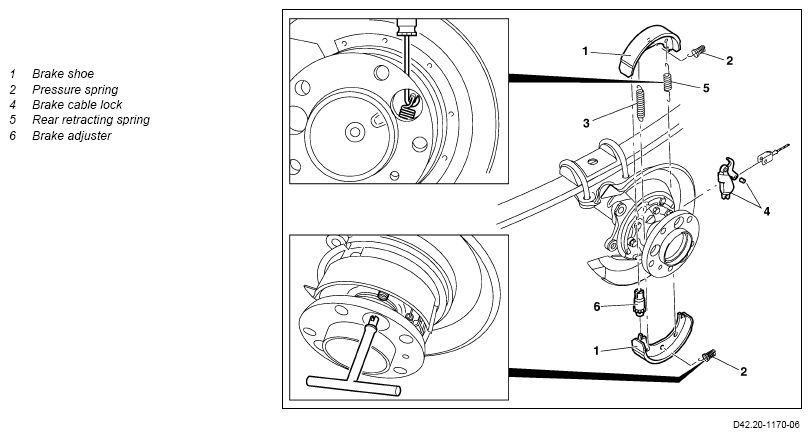

Shown on model 907, left side of vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Remove respective brake disk on rear axle. | AR42.10-D-0240TS | |
| 2 | Unhook front brake cable at brake compensator lever. | ||
| 3 | Unhook rear retracting spring (5). | Fig 1 | |
| 4 | Remove expanding springs (2). | Fig 2 | |
| 5 | Remove brake shoes (1) with brake adjuster (6). | Apply a light coating of grease to brake cable lock (4) and brake shoes (1) on contact surfaces of brake carrier. Long-life grease If corresponding findings are present, ↓ Replace brake cable lock (4) or brake adjuster (6). |
*BR00.45-Z-1001-06A |
| 6 | Slightly roughen surfaces of brakepads of brake shoes (1) and clean. | If the brake shoes (1) are reused. Sandpaper Assembly cleaner |
*BR00.45-Z-1028-04A |
| Check | |||
| 7 | Check brake shoes (1). | Minimum dimension for brake shoes incl. carrier plate If a brake shoe (1) exhibits undersize or crack formation. |
*BE42.20-N-1001-01TS |
| ↓ Replace brake shoes (1) on both sides of the vehicle. |
|||
| 8 | Install in the reverse order | ||
| 9 | Adjust parking brake. | AR42.20-D-0540TS |
CHECK VALUES FOR PARKING BRAKE
| Number | Designation | Model 907 except code B25 (Electric parking brake) | |
|---|---|---|---|
| BE42.20-N-1001-01TS | Minimum dimension for brake shoes incl. carrier plate | mm | 4,5 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-life grease | A 000 989 63 51 11 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
